Case 3, Three or More Units Side By Side
When three or more units are side by side, the outside units (chillers 1 and 3 in this case) are
influenced by the middle unit only on their inside circuits. Their adjustment factors will be the
same as Case 2. All inside units (only chiller 2 in this case) are influenced on both sides and must
be adjusted by the factors shown below.

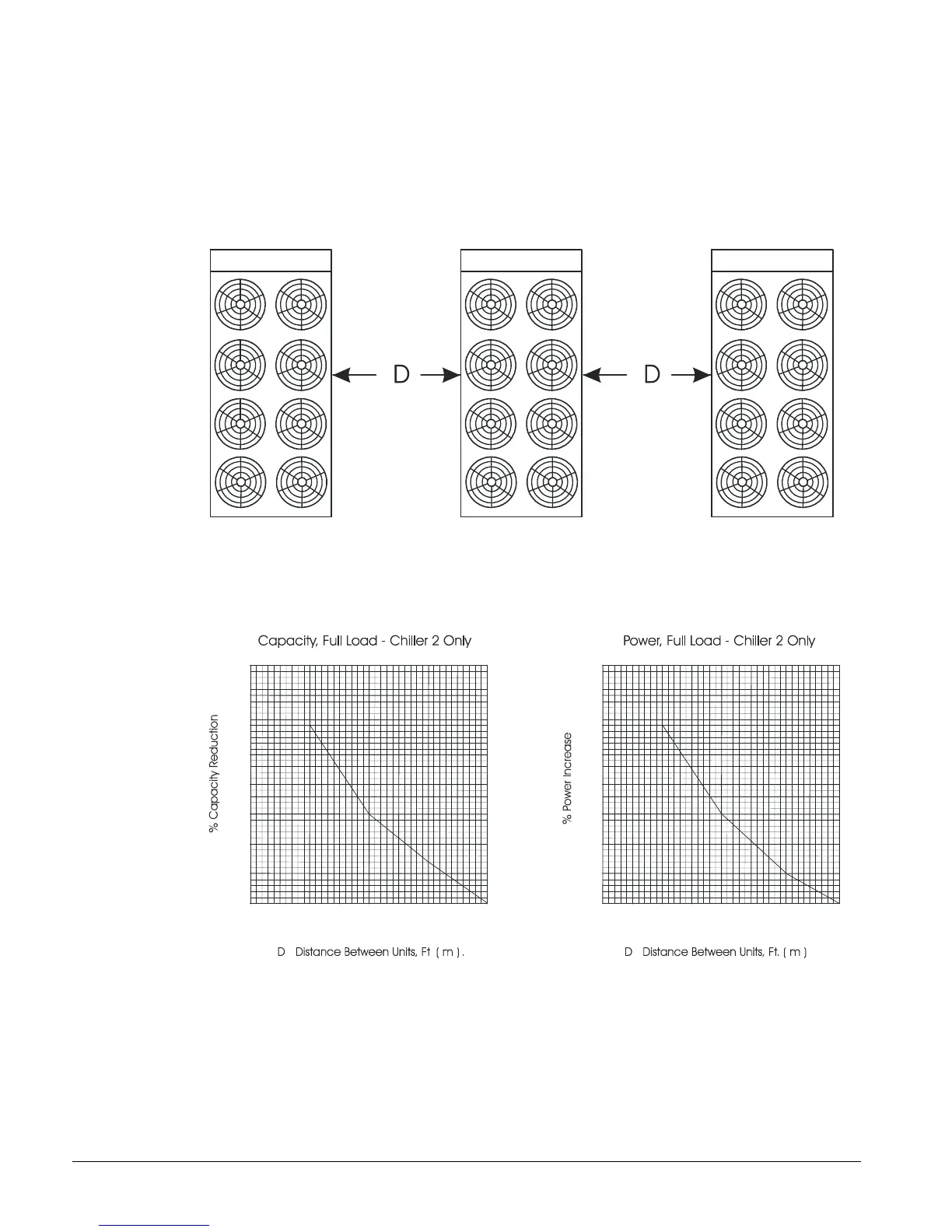

Figure 8, Three or More Units
Chiller 1 Chiller 2 Chiller 3
Figure 9, Adjustment Factor
4.0
3.0
2.0
0
1.0
8.0
6.0
4.0
0
2.0
15
(4.6)
16
(4.9)
17
(5.2)
18
(5.5)
15
(4.6)
16
(4.9)
17
(5.2)
18
(5.5)
