34 ALR 110F – 150F Product Manual ALR2-3
Case 3, Three or More Units Side By Side
When three or more units are side by side, the outside chillers (1 and 3 in this case) are influenced by
the middle unit only on their inside circuits. Their adjustment factors will be the same as Case 2. All
inside units (only number 2 in this case) are influenced on both sides and must be adjusted by the
factors shown below.

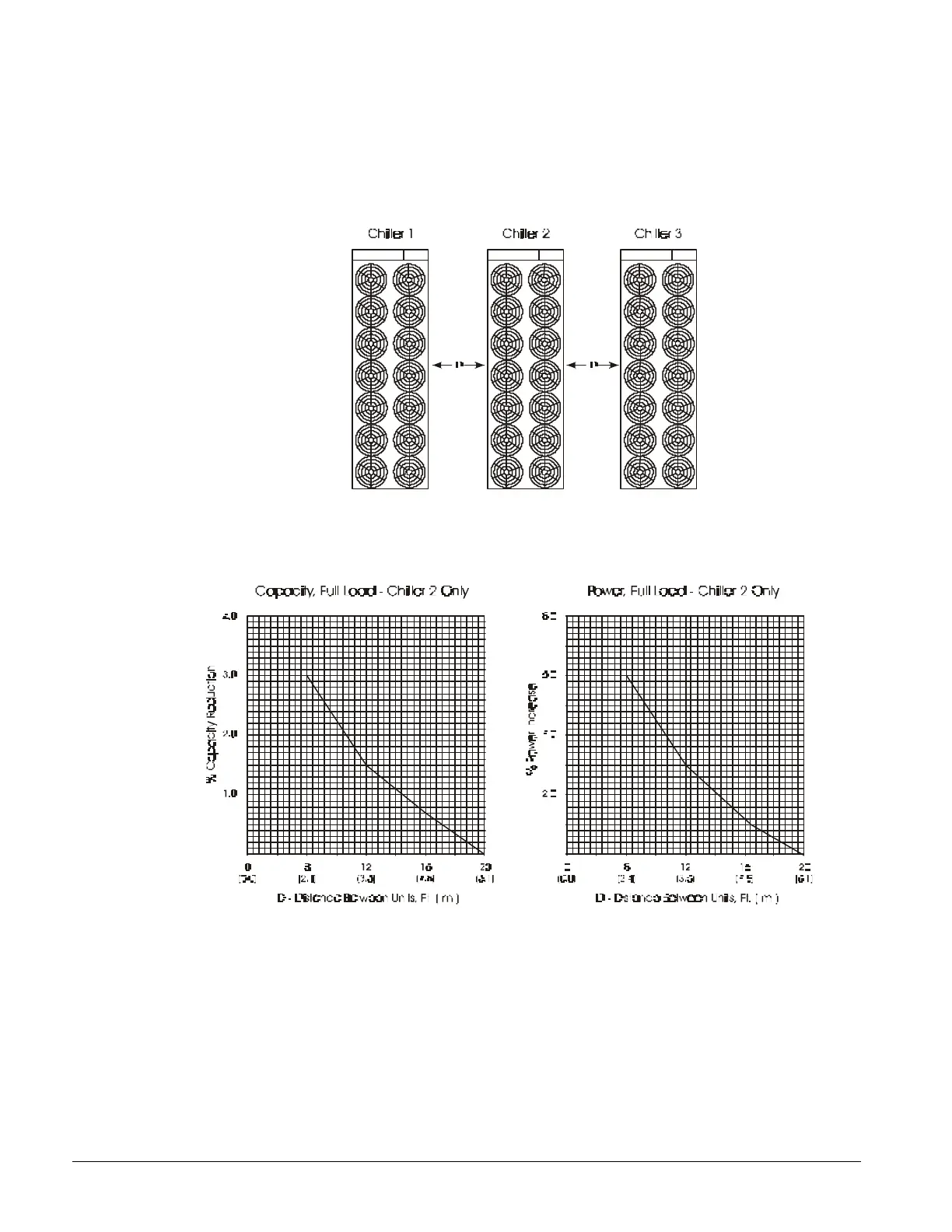

Figure 17, Three or More Units
Figure 18, Adjustment Factor
