Installation
Installation Notice
This equipment must be installed by your dealer or authorized McQuay qualified personnel, and the
installation must satisfy all the following requirements.
Location
In order to achieve unit maximum capacity and long life operation, the location selection should fulfill the
following requirements:

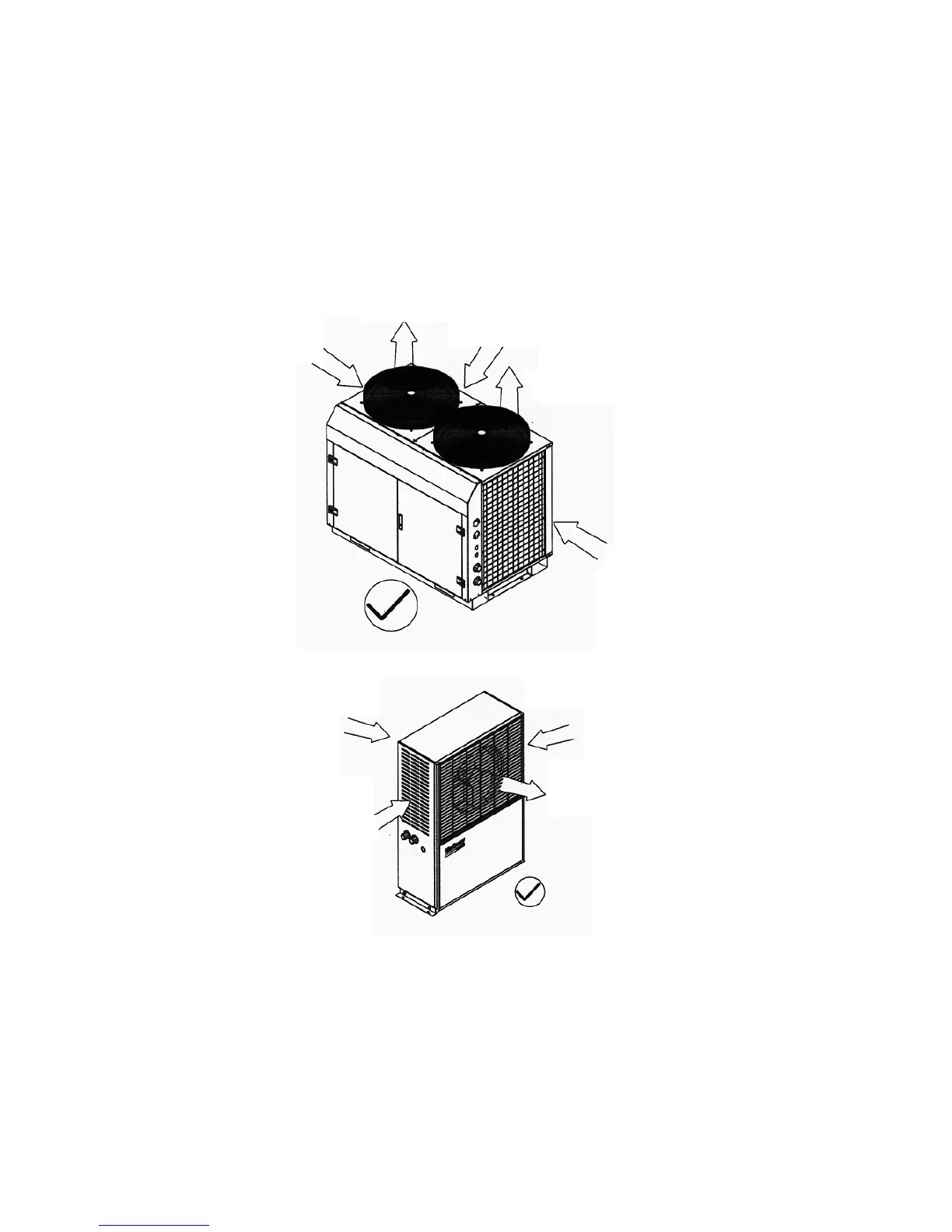

a) The location must be well ventilated, so that air can be drawn in and discharge out efficiently.
A
ir dischar
g
e
A
ir intake
A
ir intake
A
ir dischar
g
e
A
ir intake
A
ir intake
A
ir intake
A
ir dischar
g
e
Air intake
b) Install the unit in such a way that the hot air discharge cannot be drawn in again by itself or other units.
