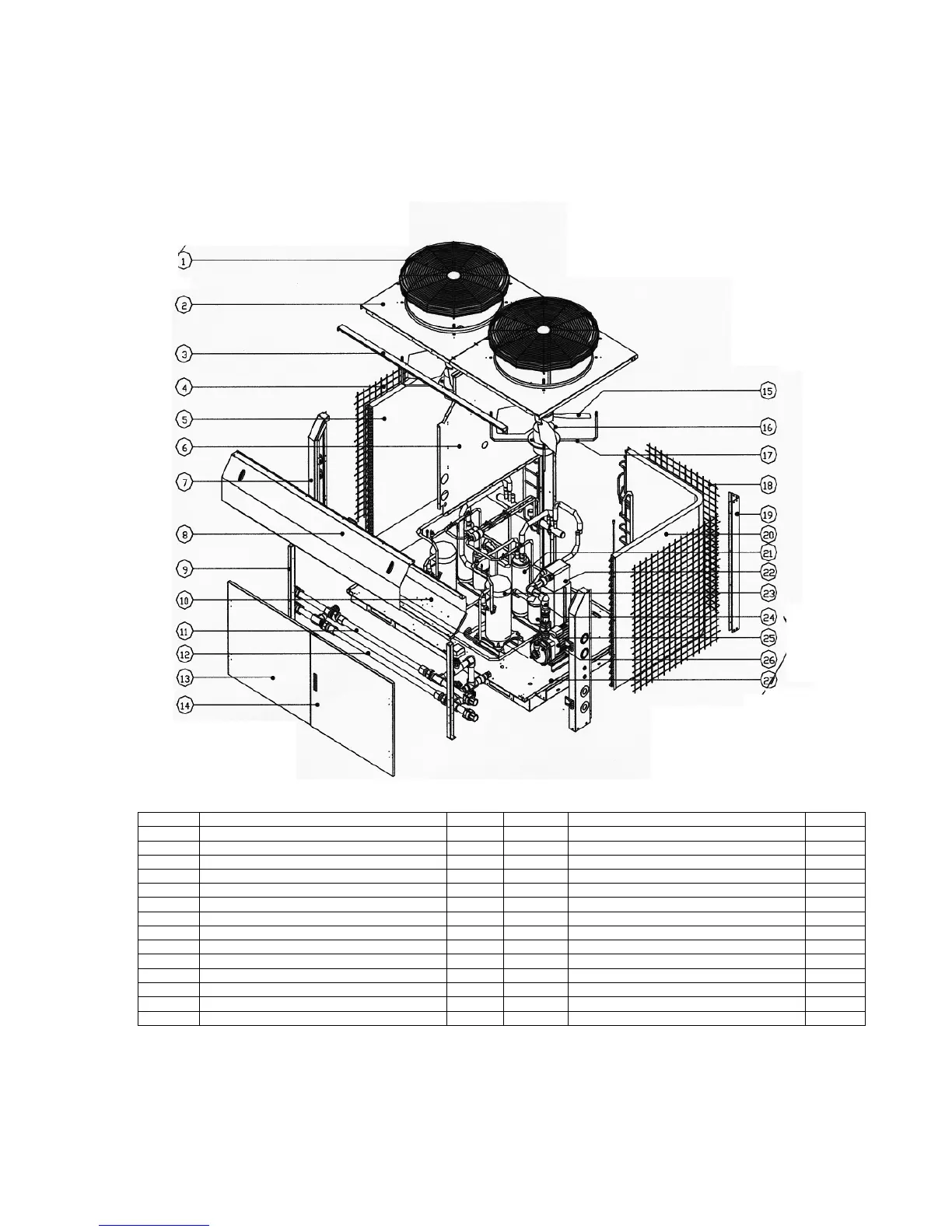

Below is the structure of MAC080CR, units of MAC080C(R) to MAC150C(R) similar to this.
Item Name Qty Item Name Qty
1. Fan Guard 2 15. Fan 2
2. Top Panel 2 16. Fan Motor 2
3. Front Panel Support 1 17. Fan Motor Support 2
4. Left & Right Coil Guard 2 18. Rear Coil Guard 2
5. Left Coil Assy. 1 19. Left & Right Vertical Support 2
6. Separate Panel Assy. 1 20. Right Coil Assy. 1
7. Left & Right Side Panel Assy. 2 21. Accumulator 2
8. Front Panel Assy 1 22. BPHE 1
9. Electrical Box Support 2 23. Compressor 2
10. Electrical Box Assy. 1 24. Pump to BPHE Pipe Assy. 1
11. Water Out Pipe Assy. 1 25. Receiver 2
12. Water In Pipe Assy. 1 26. Water Pump 1
13. Left Service Panel Assy. 1 27. Base Pan Assy. 1
14. Right Service Panel Assy. 1
Page 51
