McQuay IM 987 7
Introduction

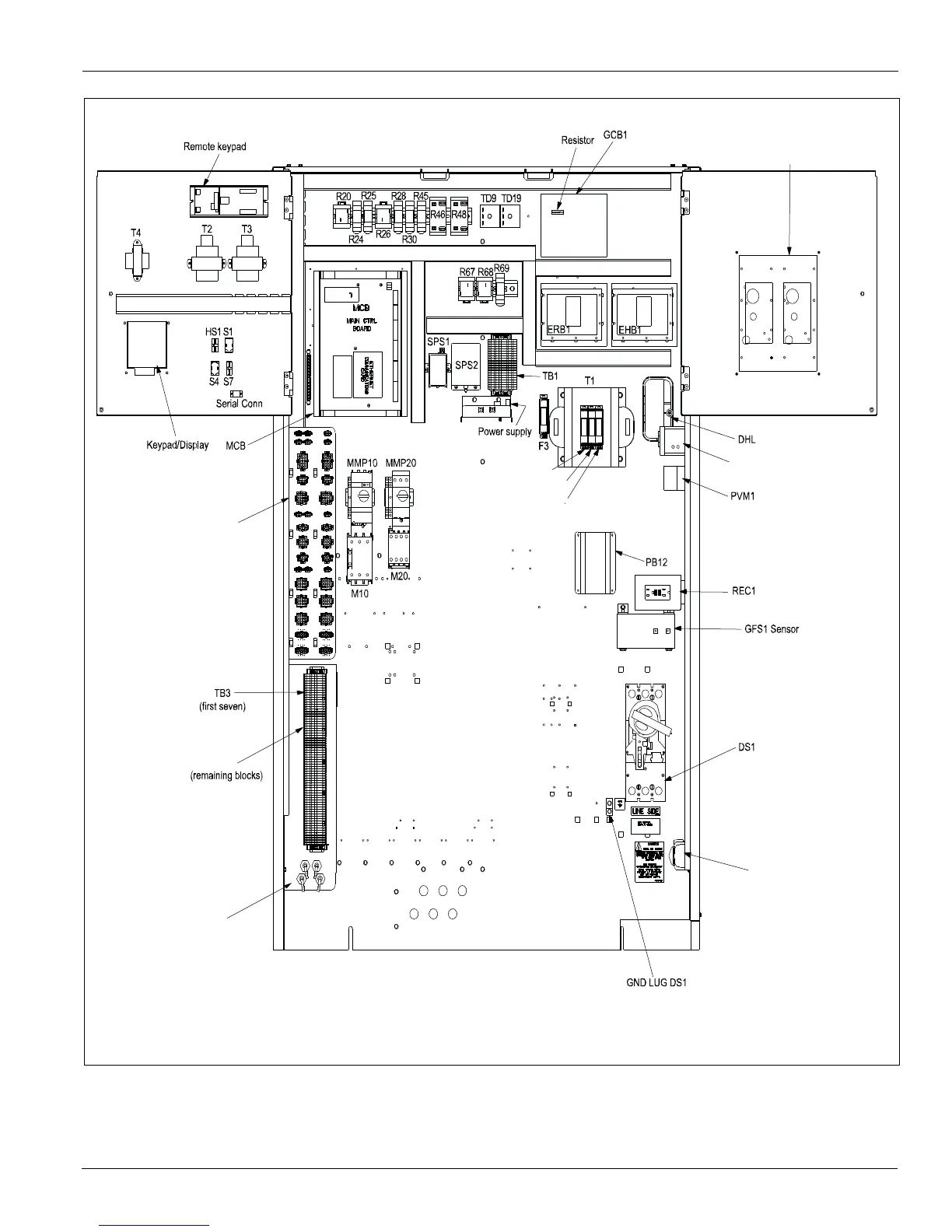

Figure 5: Typical Main Control Panel, Size 047C, 460 Volt
VFD remote
display
GFR1
TB7
SPS1,2
fittings for
static pressure
tubing
TB2
F1A
F1B
F1C
Harness
Plugs
