52
33-MAINTENANCE AND CLEANING
PERIODIC CLEANING PERFORMED BY A QUALIFIED TECHNICIAN
EXTRACTING THE PRODUCT
To perform maintenance of some devices and cleaning of certain parts, it is required to extract a part of the product from its housing.
The movable part is tted on sliding guides, which facilitate the handling process. Before extracting it, release the handle lock following
the instructions in this manual. The guides are tted with end-of-travel devices that block the movable part when extracted completely.
ATTENTION: THE PRODUCT MUST ONLY BE EXTRACTED WITH THE STRUCTURE COLD. THE POWER IS AUTOMATICALLY
TURNED OFF WHEN THE PRODUCT IS EXTRACTED.
When the movable part is put back in place, make sure the machine is locked to the xed part by closing the handle or the
mechanical lock (Basic version). Forgetting to do so may result in the product not working due to leaking soot.

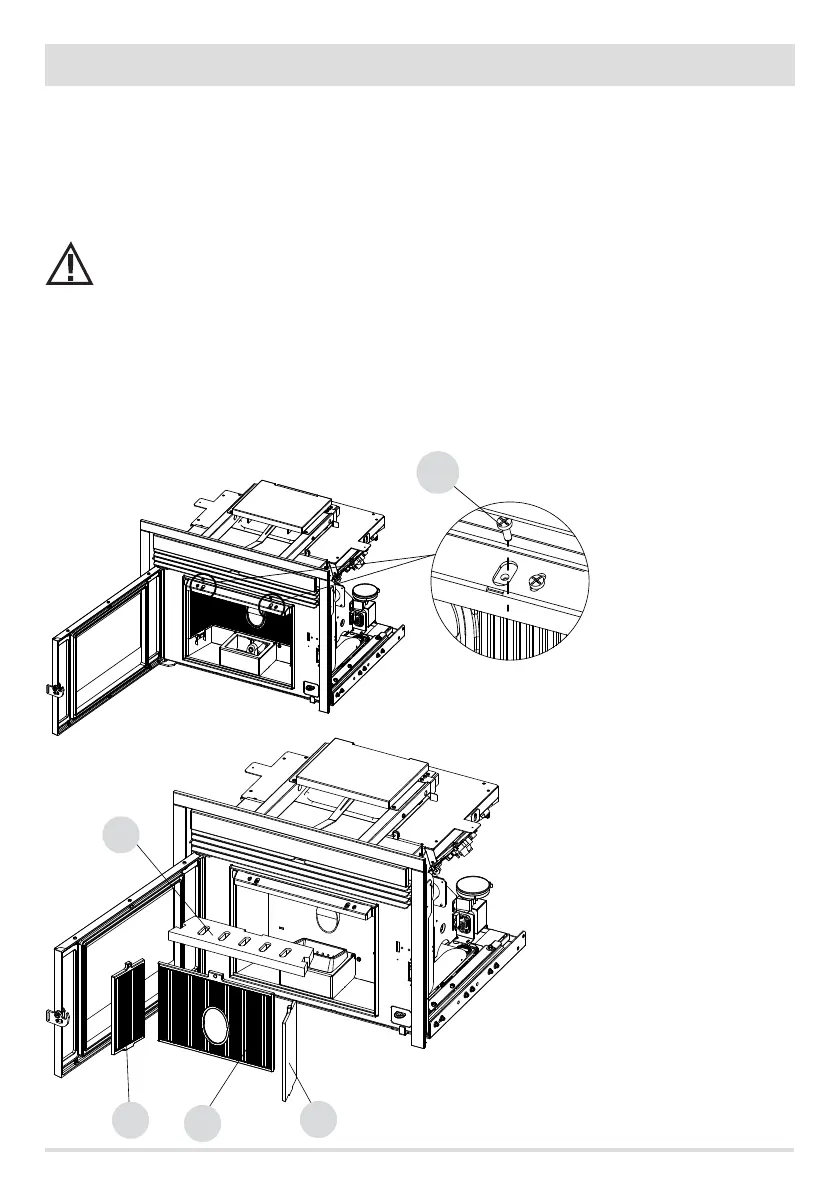

CLEANING THE EXCHANGER
Clean the exchanger when the stove is cold. Open the rebox door and proceed as follows:
• loosen the two screws “x” fastening the deector so that the top calorite “H” can be removed
• extract the left cast iron side panel “F”
• extract the right cast iron side panel “L”
• remove the back “G”
• take the top calorite “H” out. Lift it upwards
and tilt it to the right or left so that it comes out
of the supports and remove it.
Reassemble the pieces following the sequence
in reverse order.
Attention! Before reassembling the
pieces, make sure the calorite “H” is
intact, if in doubt replace it.
