MDC XT14E - Adjuster

20
1300 4X4 4X4
Adjuster

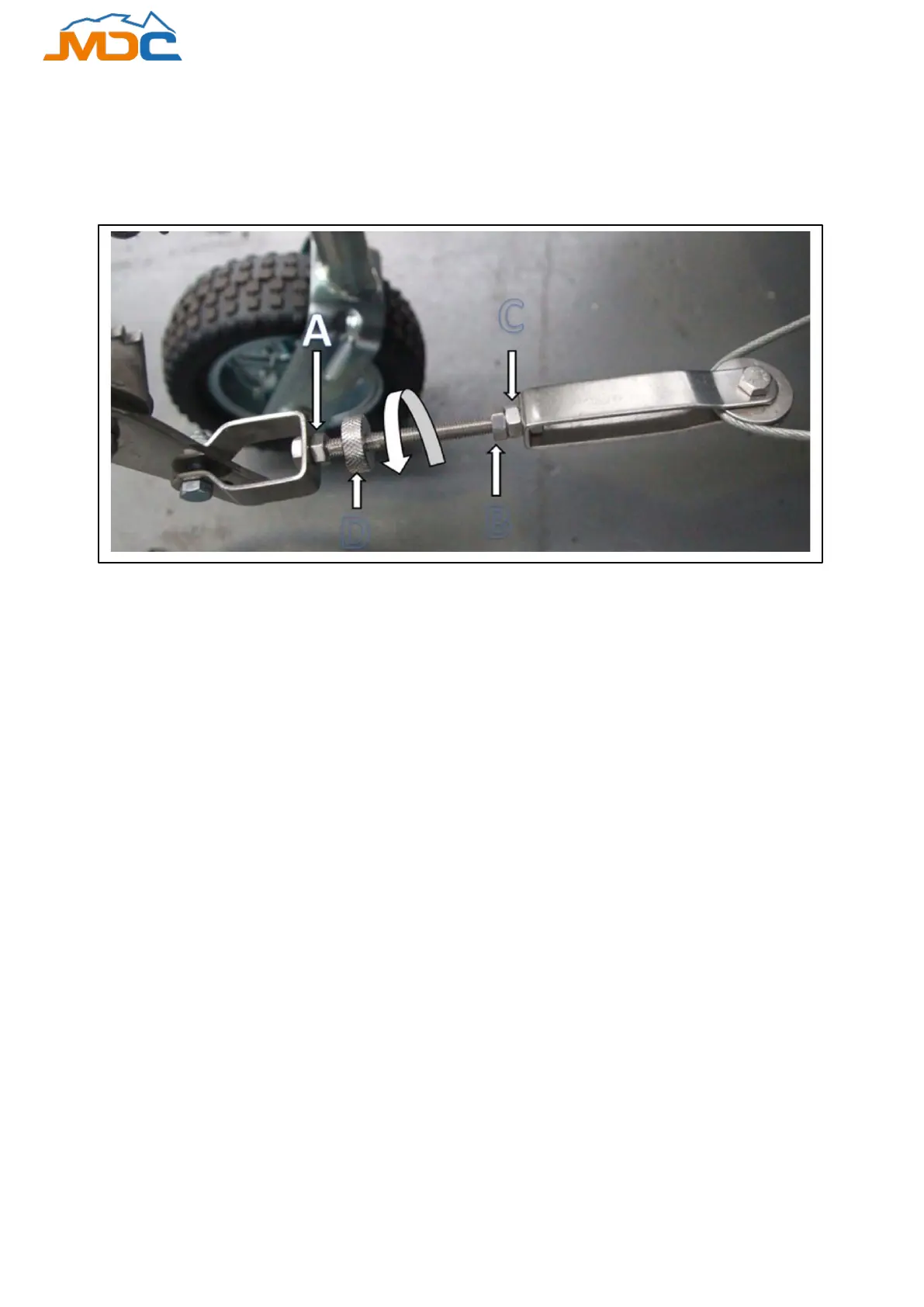

To adjust the handbrake cable tension release locknuts A, B and C in the diagram Handbrake Adjuster 1 below. To
tighten the handbrake cable, turn the adjuster wheel D in a clockwise direction. Once adjusted retighten lock nuts and
test. Always ensure that wheels turn freely when handbrake is off. Overtightened cables can cause brakes to drag and
damage the brake linings.
