MDC XT16HR ISLAND 2021 - Electrical Panel; Control Panel

www.marketdirect.com.au Ph: 1300 494 494
20

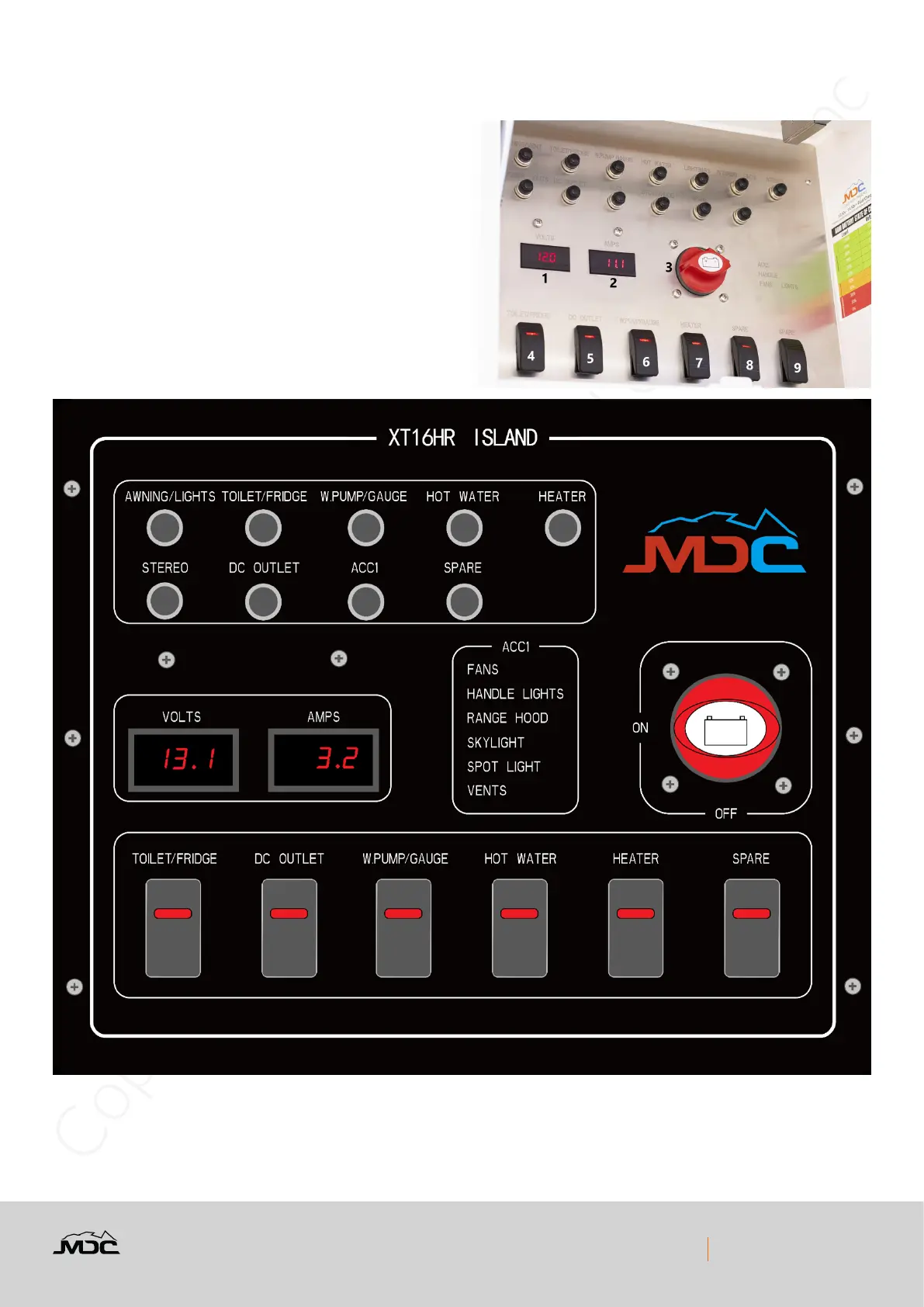

Electrical Panel
Control Panel
*Voltmeter will indicate battery voltage when idle or charge voltage when charging.
* Amp meter will show current being used not charge current.
1. Volts
2. Amps
3. 12v Main Switch
4. Toilet/Fridge
5. DC Outlets
6. Water Pump/Gauge
7. Water Heater
8. Spare/Diesel Heater
9. Spare
