Page 137 SE
AC
Slab Series - Service & Parts Manual
March 2022Section 18 - Hydraulics
Lower Lift Cylinder Assembly, 2632SE
AC
-4555SE
AC

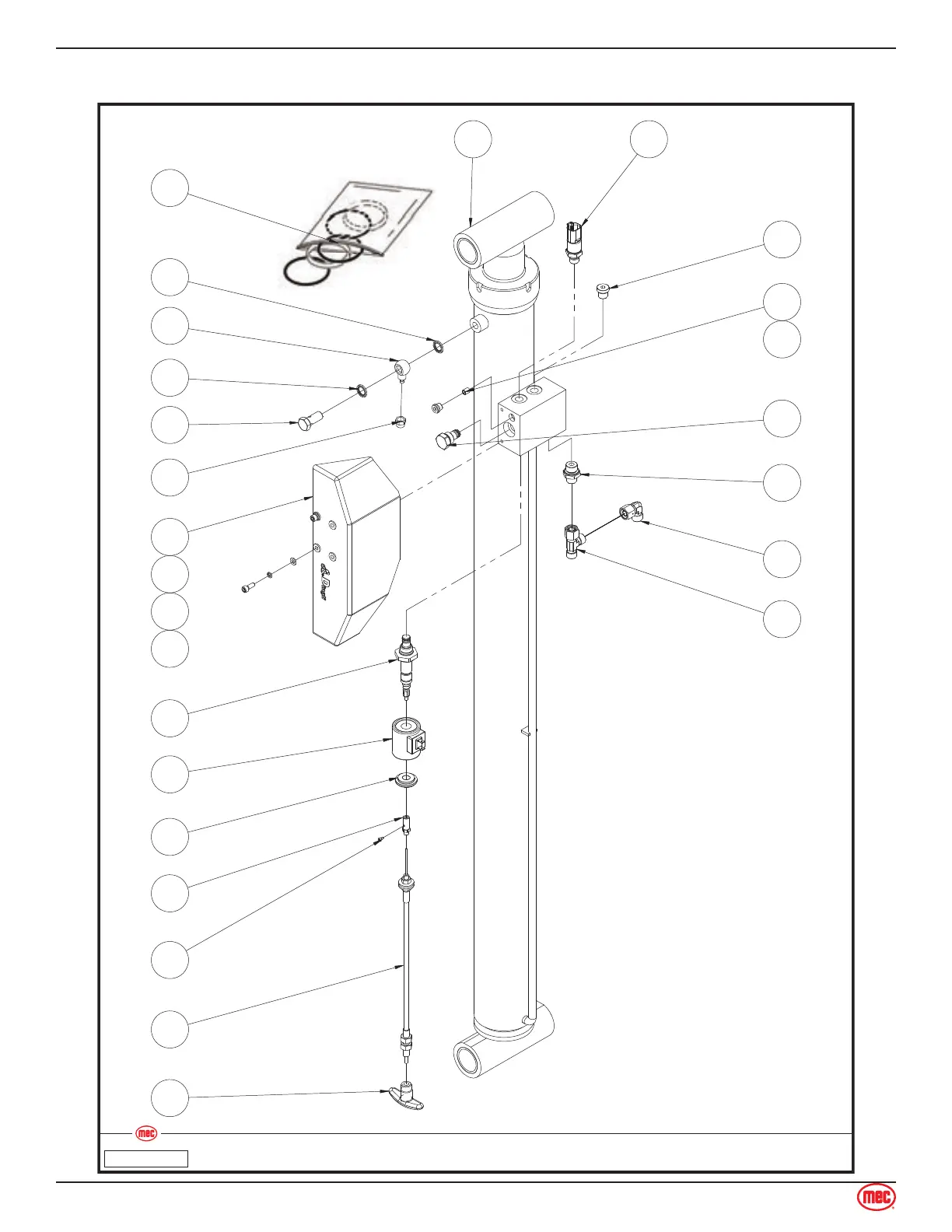

Lower Lift Cylinder Assembly
ART_5904
ILLUSTRATION No.
2632SE
AC
, 3346SE
AC
, 4046SE
AC
, 4555SE
AC
2
1
9
5
4
8
6
7
3
10
25
19
18
17
23
24
23
16
15
14
13
12
11
21
20
22
