Page 11 69 Series - Operator’s Manual
February 2019

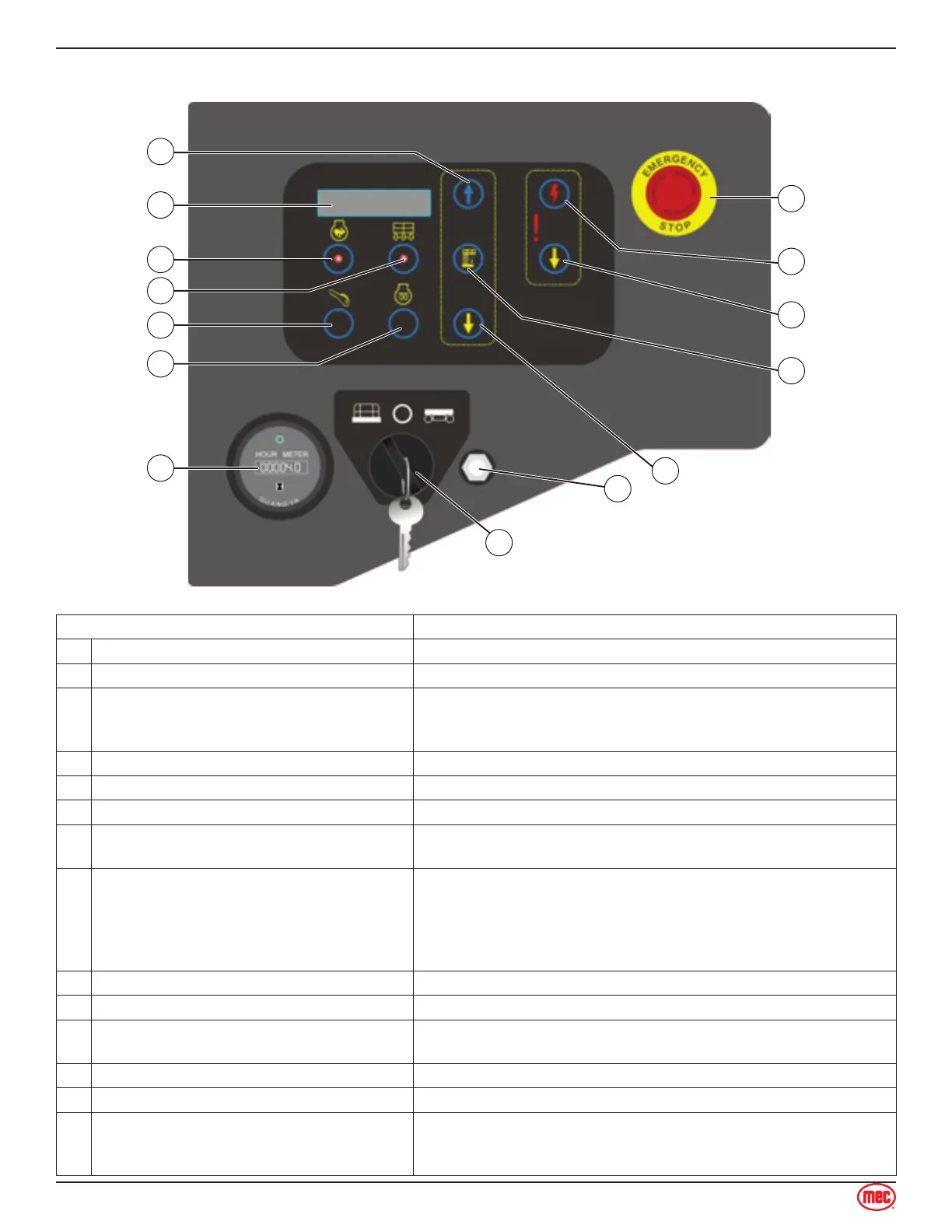

Ground Control Panel
Control Description
1 Platform Up Button Press this button and the platform will lift.
2 Display Diagnostic readout
3 Engine Idle Select Button
Press this button to select the engine idle setting. Light on
indicates high idle is selected. Light off indicates low idle is
selected.
4 Overload Indicator Light Light on indicates when platform is overloaded (If fitted).
5 Engine Start Button Press this button to start the engine.
6 Engine Glow Plug Button Press and hold this button to preheat engine.
7 Hour Meter
The hour meter displays the number of hours the machine has
operated.
8 Key Switch
Turn the key switch to the platform position and the platform
controls will operate.
Turn the key switch to the off position and the machine will be off.
Turn the key switch to the base position and the ground controls
will operate.
9 Circuit Breaker Circuit breaker
10 Platform Down Button Press this button and the platform will lower
11 Lift Function Enable Button
Press and hold this button along with the Platform Up Button or
the Platform Down Button.
12 Emergency Lowering Down Button Press this button and the platform will lower
13 Emergency Lowering Down Enable Button Press this button to activate the Emergency down function.
14 Red Emergency Stop Button
Push in the red Emergency Stop button to the off position to stop
all functions. Turn the red Emergency Stop button clockwise to
the on position to operate the machine.
Ground Control Panel
Section 4 - Control Panel
