Page 28 69 Series - Operator’s Manual
February 2019Section 8 - Transport and Lifting Instructions
Lifting Instructions
Observe and Obey:
Only qualified riggers should rig and lift the machine.
Only qualified forklift operators should lift the machine with a forklift.
Be sure the crane capacity, loading surfaces and straps or lines are sufficient to withstand the
machine weight. See the serial plate for the machine weight.
Lifting Instructions
Fully lower the platform. Be sure the extension decks, controls and covers are secure. Remove all
loose items on the machine.

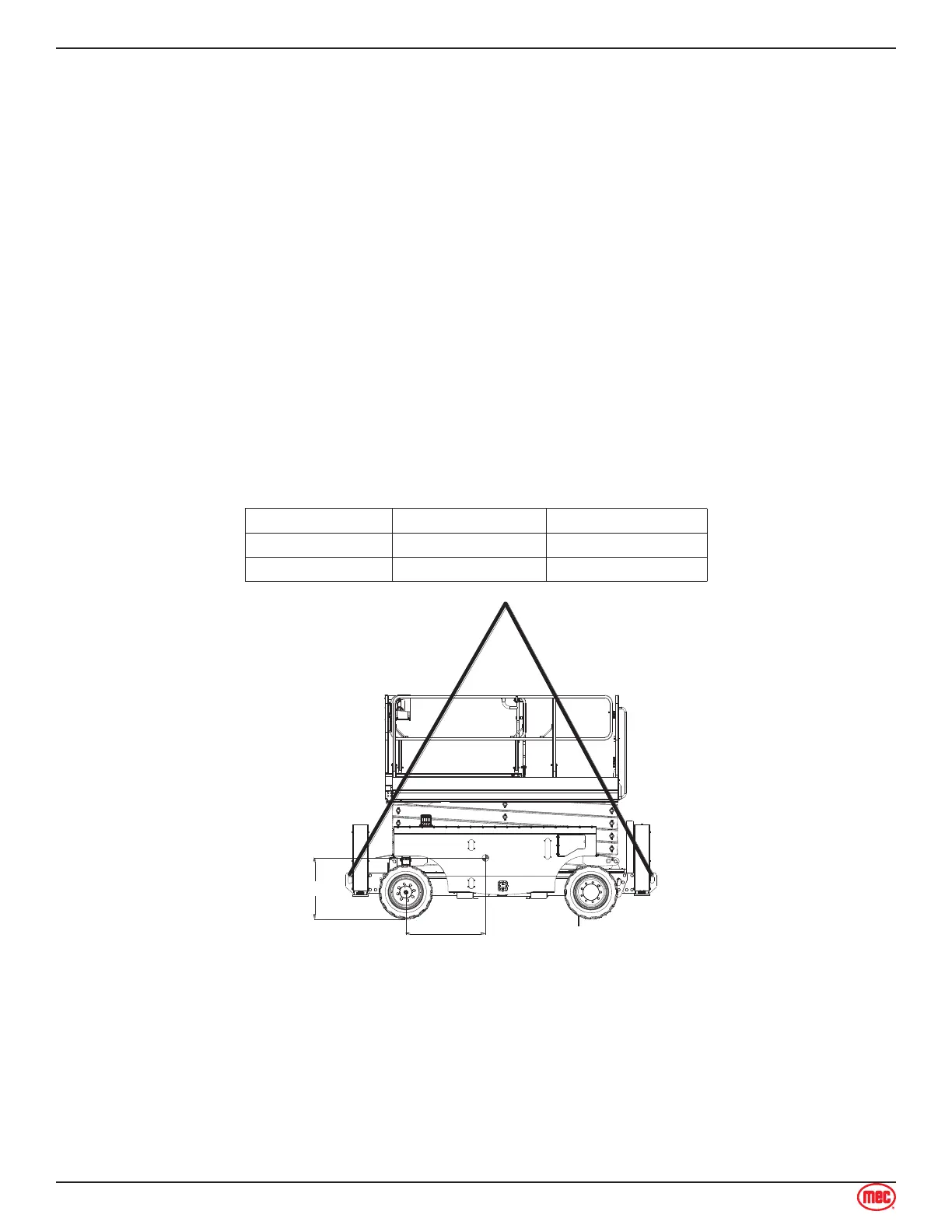

Determine the center of gravity of your machine using the table and the picture on this page.
Attach the rigging only to the designated lifting points on the machine. There are two lifting points on
each end of the machine.
Adjust the rigging to prevent damage to the machine and to keep the machine level.
Center of gravity X Axis Y Axis
3369 3 ft 7 in 1.1 m 2 ft 7 in 0.78 m
4069 3 ft 7 in 1.1 m 2 ft 9 in 0.84 m
1.
2.
3.
