Important: Maximum capacity - 1 person - 250 lbs (113Kg)
The control box may be placed on the upper telescopic guardrail and the machine
controlled as instructed in this manual.
To stow first dis-engage the swinging tube guardrail
and step down. Fold-up the Xtra Deck until the
magnets pull it into the retained vertical position.
•

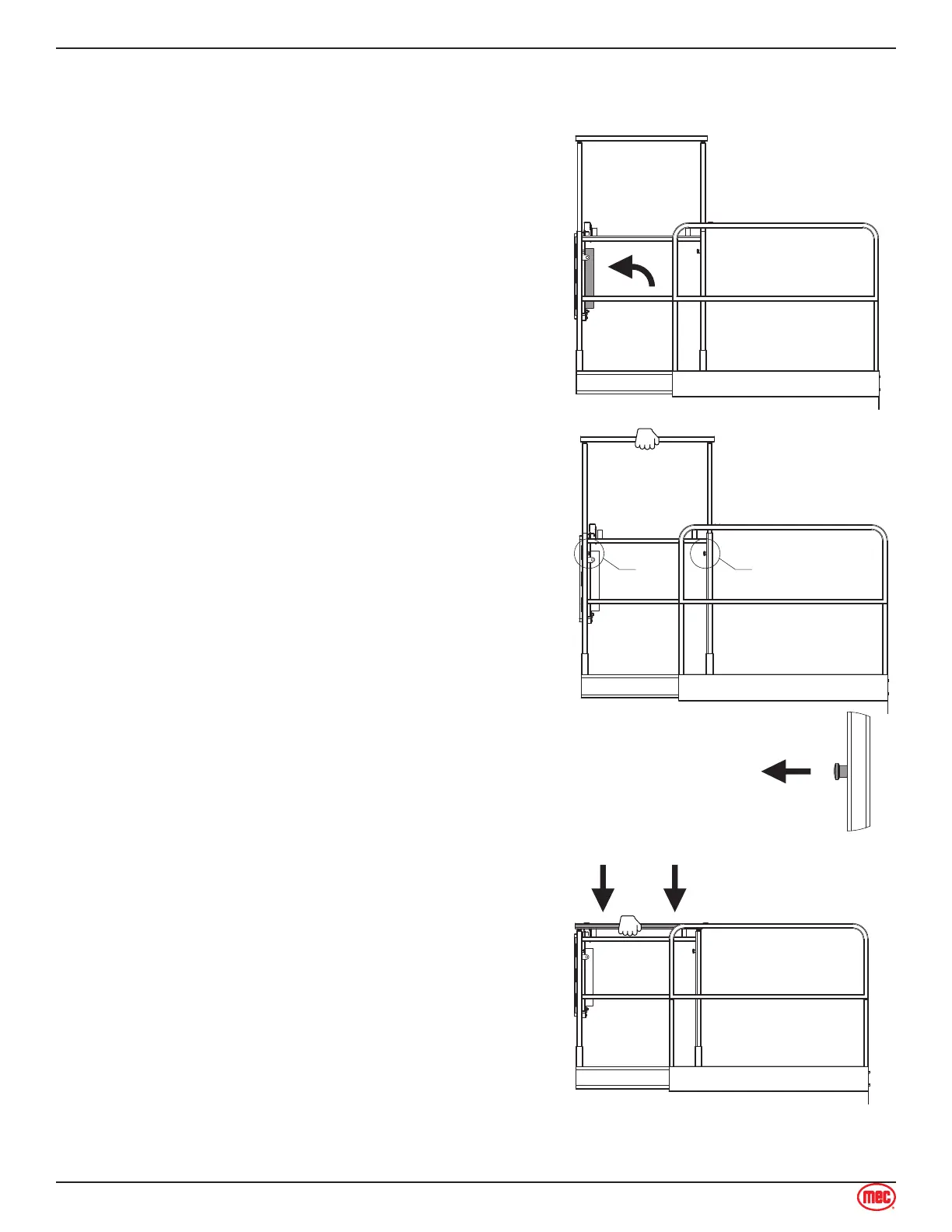

4. Fold up the Xtra Deck
Art_5584
Pull each spring loaded snap pin individually but when
releasing the last snap pin hold the yellow upper
guardrail in the center on either the left hand or right
hand side.
•
PULL
Detail A
AA
5. Pull the spring
loaded snap pins.
Art_5584
When pulling and releasing the last pin support the
weight of the yellow upper guardrail in the center of
either the left hand or right hand yellow guardrail.
Gently lower the telescopic guardrail to the lowered
position.
•
•
6. Hold the yellow guardrail
when releasing the last
snap pin and gently lower
the yellow guardrail.
