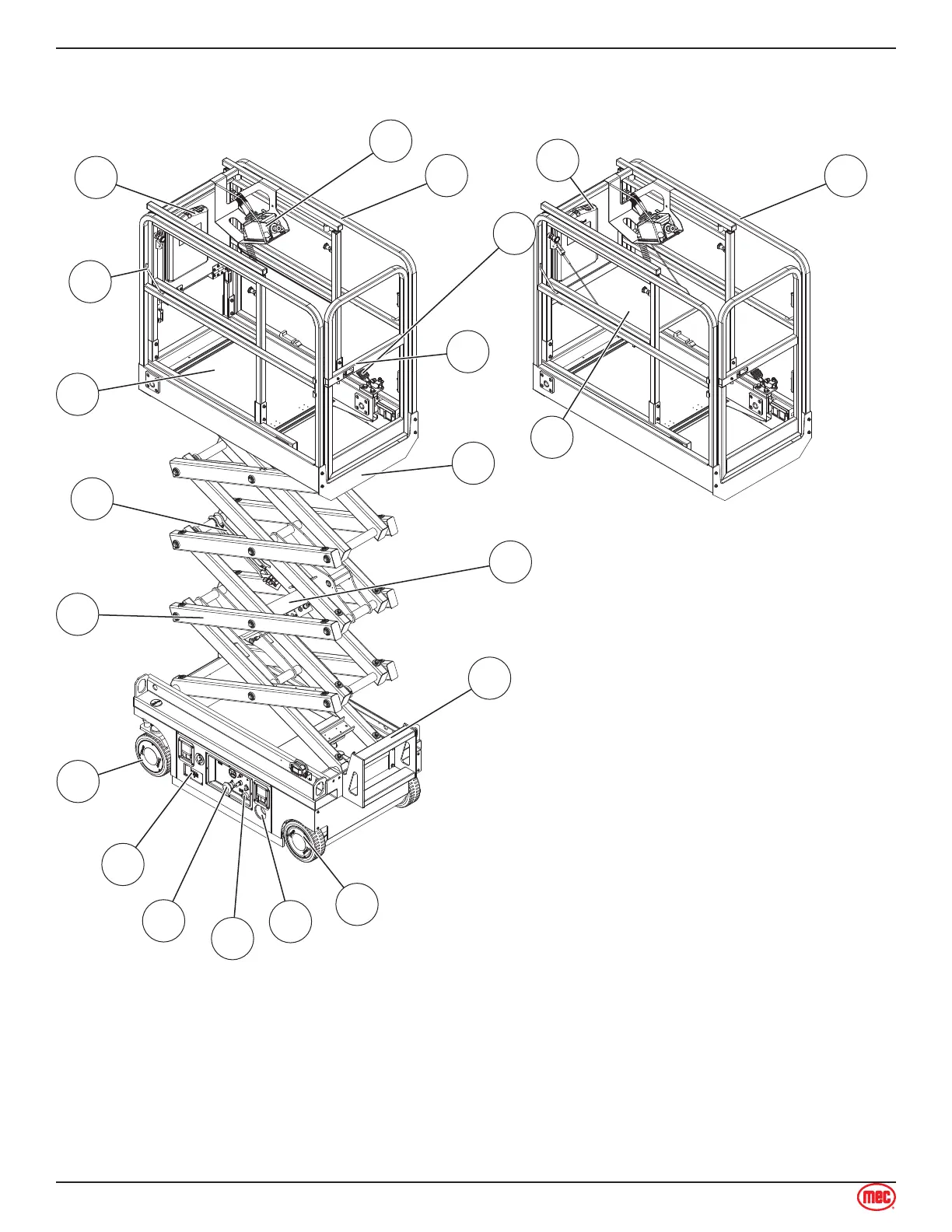

Component Locations
Art_5591
1) Platform Controller
2) Platform Guard Rails
3) Platform Extension Release Pedal
4) Platform Entry Gate
5) Main Platform
6) Lift Cylinders
7) Entry Ladder
8) Drive Wheels
9) Emergency Lowering Knob
10) Ground Control Panel
11) Batteries Charger
12) Main Power Switch
13) Steer Wheels
14) Scissor
15) Safety Chock
16) Lanyard Anchorage Points
17) Platform Extension
18) Manual Storage Container (2)
19) Xtra Deck
20) Telescopic Guardrails
1
Xtra Deck Up Xtra Deck Down
2
20
3
4
5
6
7
8
9
10
11
12
13
14
15
19
16
17
18
18
