Xtra Deck Deployment And Stowing
Warning! Only 1 person is allowed on the machine when the Xtra Deck is deployed.
The preferred platform position to deploy or stow the Xtra Deck is with the slide-out deck extended.
Extend the telescopic guardrails (painted yellow) until
all 4 pins snap into holes when the guardrails reach the
extended position.
•

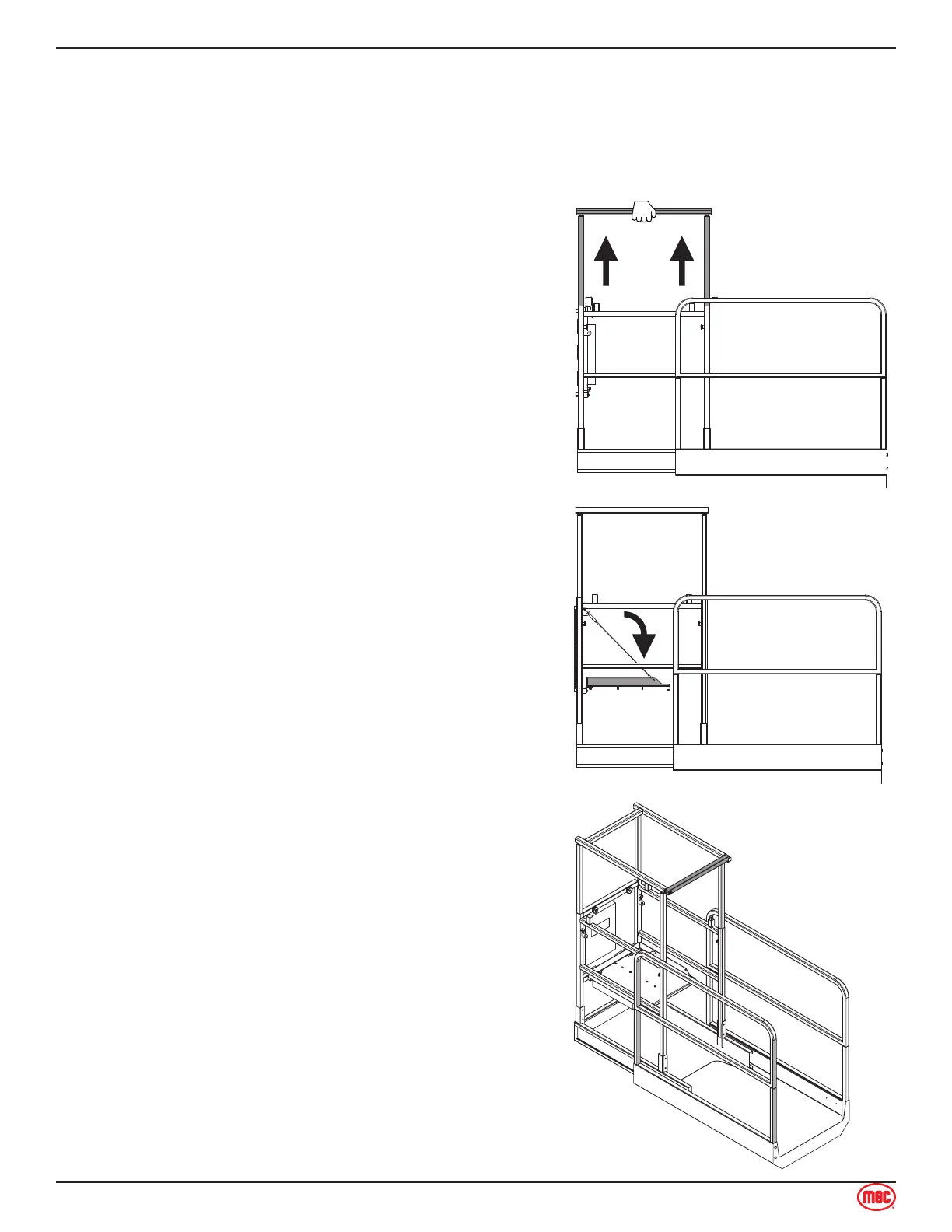

1. Pull up the yellow
guardrails until they
snap into place.
Art_5584
Pull firmly on the Xtra Deck to release it from the
magnets and fold down the Xtra Deck.
•
2. Pull down on the Xtra
Deck to lower it.
Art_5584
Once on the Xtra Deck lift-up and engage the swinging
tube guardrail to enclose the Xtra Deck on all 4 sides.
•
3. Swinging tube
guardrail must
be across the
Xtra Deck
guardrail entrance
Art_5584
