Mec Micro19 - Section 9 - Transport and Lifting Instructions; Free-Wheel ConfGuratOn for WNchNg or TowNg

Page 12 Micro19 - Service & Parts Manual
October 2021

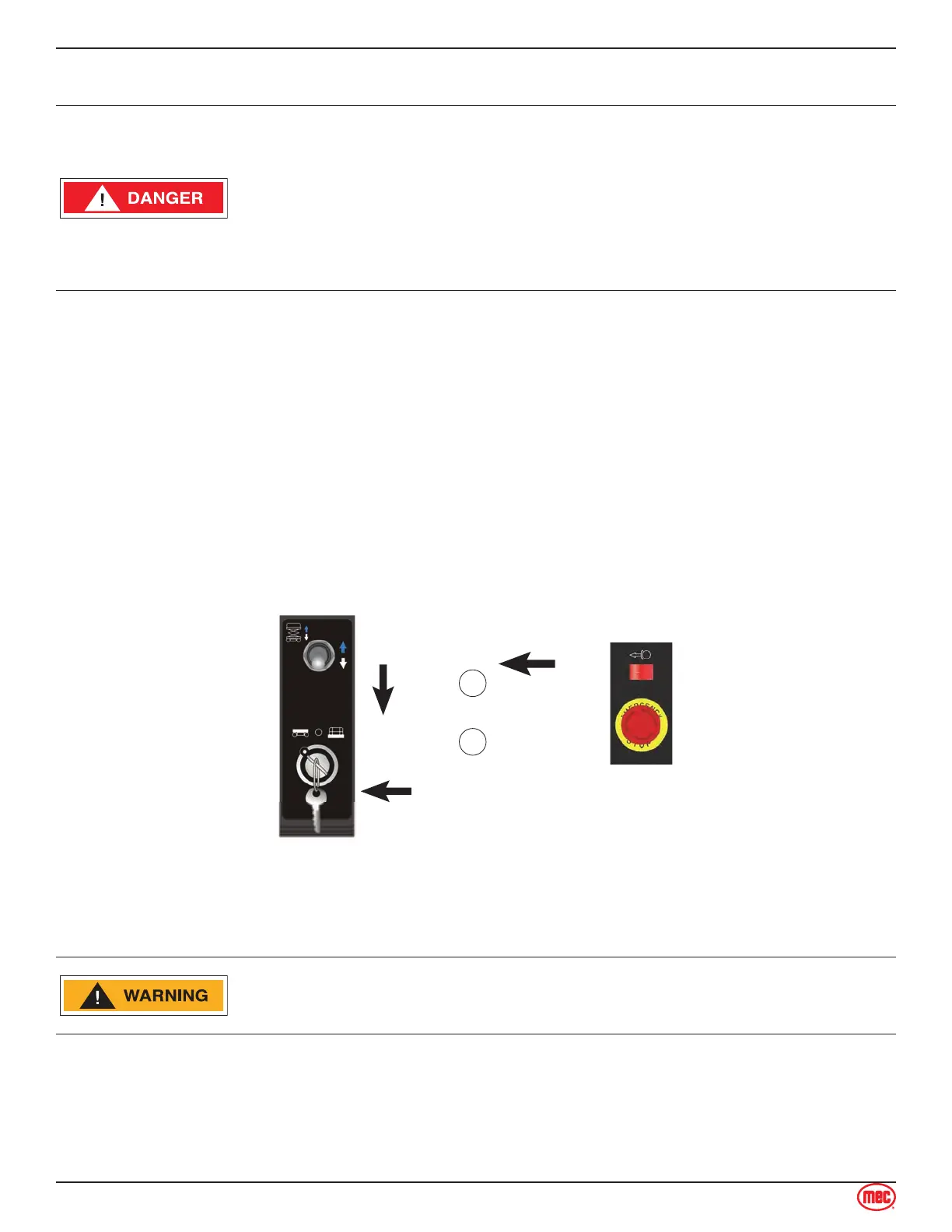

Free-Wheel Configuration for Winching or Towing
RUNAWAY HAZARD!
AFTER RELEASING THE BRAKES THERE IS NOTHING TO STOP
MACHINE TRAVEL. MACHINE WILL ROLL FREELY ON SLOPES.
ALWAYS CHOCK THE WHEELS BEFORE MANUALLY RELEASING THE
BRAKES.
The machine can be winched or towed short distances at speeds not to exceed 2.5 MPH (4 km/h).
Before towing or winching the machine, it is necessary to release the brakes. Reset the brakes after
towing or winching.
Disengage Brakes Before Towing Or Winching
Chock the wheels.
Turn the Key Switch to the OFF position.
Turn the red Emergency Stop button clockwise to the on position at both the ground and
platform controls.
At the Ground Controls panel, push and hold the red rocker switch to the left & Push Down and
Hold The Lift/Lower Switch to the Lower Position
Turn Key Switch to the base controls. An alarm will sound, signaling that the brakes have been
released.
1.
2.
3.
4.
5.
Push Down
& Hold
Turn to
Ground
Reset E-Stop
(pull out)
2
Push red rocker
switch to left
1
Art_4998
Resetting Brakes
Press the Emergency Stop button to reset the brake.
BE SURE THAT THE BRAKES ARE ENGAGED BEFORE REMOVING THE
WHEEL CHOCKS.
Section 9 - Transport and Lifting Instructions
Free-Wheel Configuration for Winching or Towing
