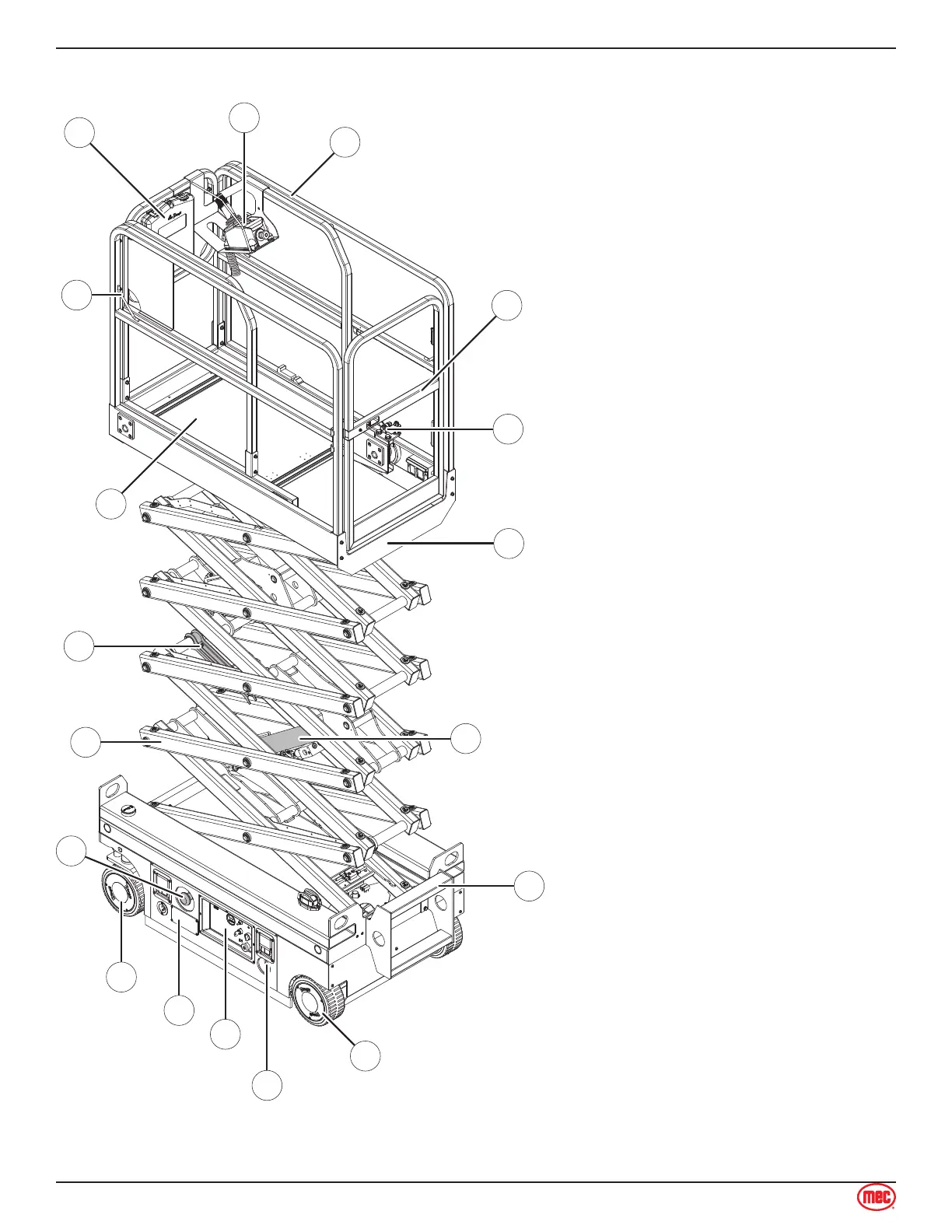

Component Locations
1) Platform Controller
2) Platform Guard Rails
3) Platform Extension Release Pedal
4) Platform Entry Gate
5) Main Platform
6) Lift Cylinder
7) Entry Ladder
8) Drive Wheels
9) Emergency Lowering Knob
10) Ground Control Panel
11) Batteries Charger
12) Main Power Switch
13) Steer Wheels
14) Scissor
15) Safety Arms
16) Lanyard Anchorage Point
17) Platform Extension
18) Manual Storage Container
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Art_5545A
Section 5 - Components and Controls
Component Locations
