Page 35 Micro19 - Operator’s Manual
August 2021Section 10 - Decals

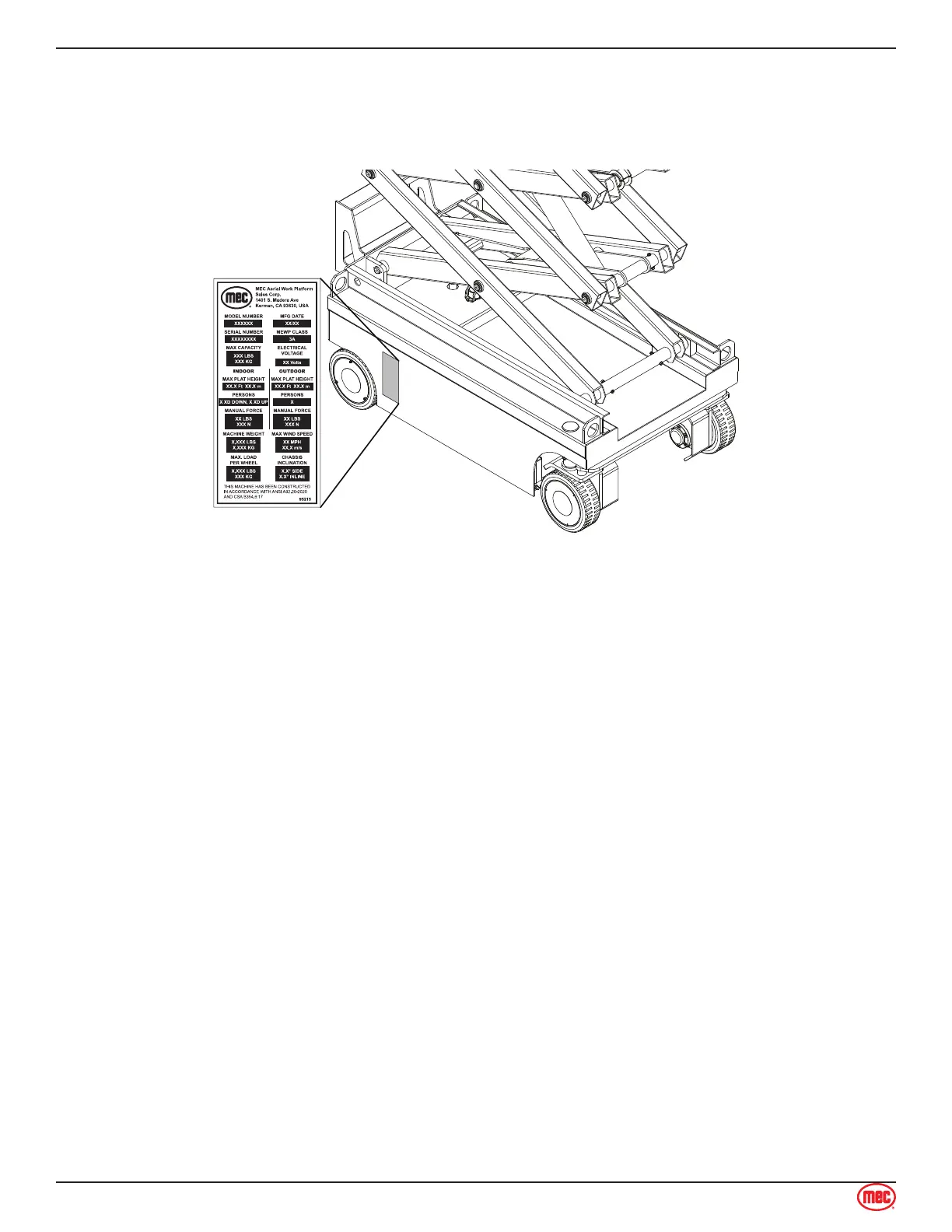

Serial Plate
The serial plate is attached to the machine at the time of manufacture. Important information about
the machine is recorded on the serial plate.
Serial Plate Description
MODEL NUMBER: Identifies the machine.
MFG DATE: Month / Year of manufacture.
SERIAL NUMBER: Identifies a machine with reference to its original owner. Refer to the number when requesting
information or ordering parts.
MODEL YEAR: Machine model year.
MAX. CAPACITY: The maximum safe load (material, persons + equipment) which can be correctly placed on the
platform at any elevation.
ELECTRICAL VOLTAGE: The voltage at which this machine operates.
MAX. PLATFORM HEIGHT (INDOOR): The indoors maximum attainable height measured from level ground
surface to platform floor.
PERSONS (INDOOR): The maximum number of occupants indoors.
MANUAL FORCE (INDOOR): Amount of manual force need to move machine indoors.
MAX. PLATFORM HEIGHT (OUTDOOR): The outdoors maximum attainable height measured from level ground
surface to platform floor.
PERSONS (OUTDOOR): The maximum number of occupants outdoors.
MANUAL FORCE (OUTDOOR): Amount of manual force need to move machine indoors.
MACHINE WEIGHT: The weight of the machine with no options.
MAX WIND SPEED: The maximum wind speed for safe working conditions.
MAX. LOAD PER WHEEL: The maximum safe weight applied to each wheel. Calculated with all available options
installed. Fw = 30% (Wm + Wc + Wopt)
CHASSIS INCLINATION: The maximum amount of tilt for safe working conditions.
