Page 15 Mast Series - Operator’s Manual
April 2021Section 5 - Components and Controls

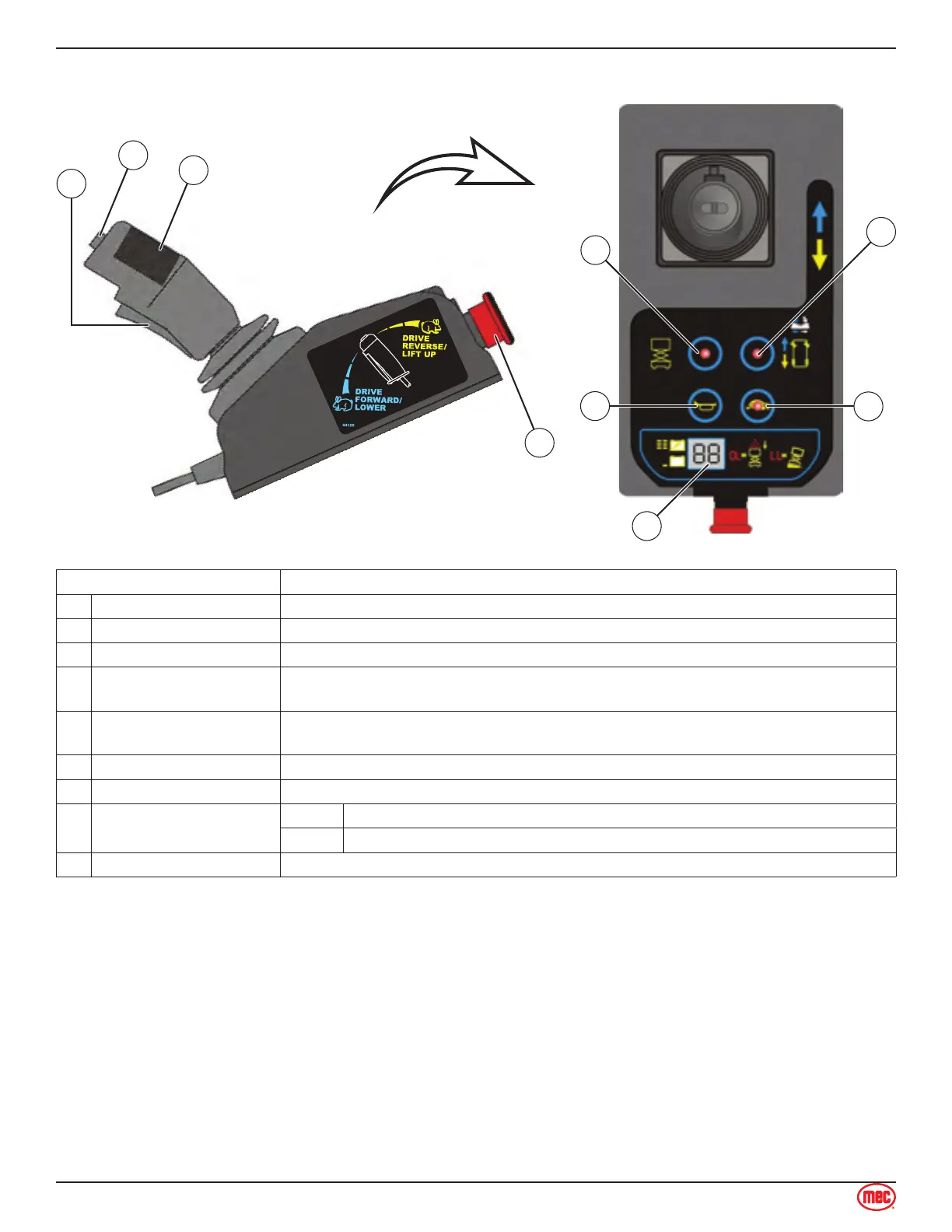

Upper Control Panel
Control Description
1 Thumb Rocker Switch Press the thumb rocker switch in either direction to activate steer function.
2 Drive Select Press this button to select the drive function.
3 Drive Speed Button Press this button to activate the slow or fast drive function.
4 Emergency Stop Switch
Press the EMERGENCY STOP switch at any time to stop all machine functions.
Pull the button outto the on position to operate the machine.
5 LED Display
Indicates the state of battery charge and displays diagnostic codes when
necessary.
6 Horn Button Press to sound warning horn.
7 Lift Select Press this button to select the Lift function.
8
Proportional Control
Handle
DRIVE Proportionally controls Forward and Reverse travel.
LIFT Proportionally controls Lift and Lower functions.
9 Function Enable Switch Function Enable Switch for LIFT & DRIVE & STEER functions.
Lift function
Press the Lift Select switch. Squeeze the Function Enable Switch then move the control handle
in the direction indicated by the yellow arrow and the platform will raise. Squeeze the Function
Enable Switch then move the control handle in the direction indicated by the blue arrow and the
platform will lower. The descent alarm will sound while the platform is lowering.
Drive function
Press the Drive Select switch. Squeeze the Function Enable Switch then move the control
handle in the direction indicated by the blue arrow on the control panel and the machine will
move in the direction that the blue arrow points. Squeeze the Function Enable Switch then move
the control handle in the direction indicated by the yellow arrow on the control panel and the
machine will move in the direction that the yellow arrow points.
•
•
