16 | Preparation for use
1. If you use a DISPOSABLE collection system proceed
with step 6.4b
3. 3.1 Attach the lid to the jar and
lock with the two lid
clamps.
3.2 Attach the jar to the
carrying handle (portable
version only) or to the
optional clampholder on
the rail (see step 5.4).
3.1 3.1
3.2
2. 2.1 Attach mechanical
overflow protection to lid.
2.2 Pull gently downwards to
make sure it is
open / deactivated.
2.1
2.2
4. 4.1 Connect tubing from the
Safety Set to the lid of the
jar (vacuum port).
5. 5.1 Connect patient tubing to
the lid of the jar (patient
port).

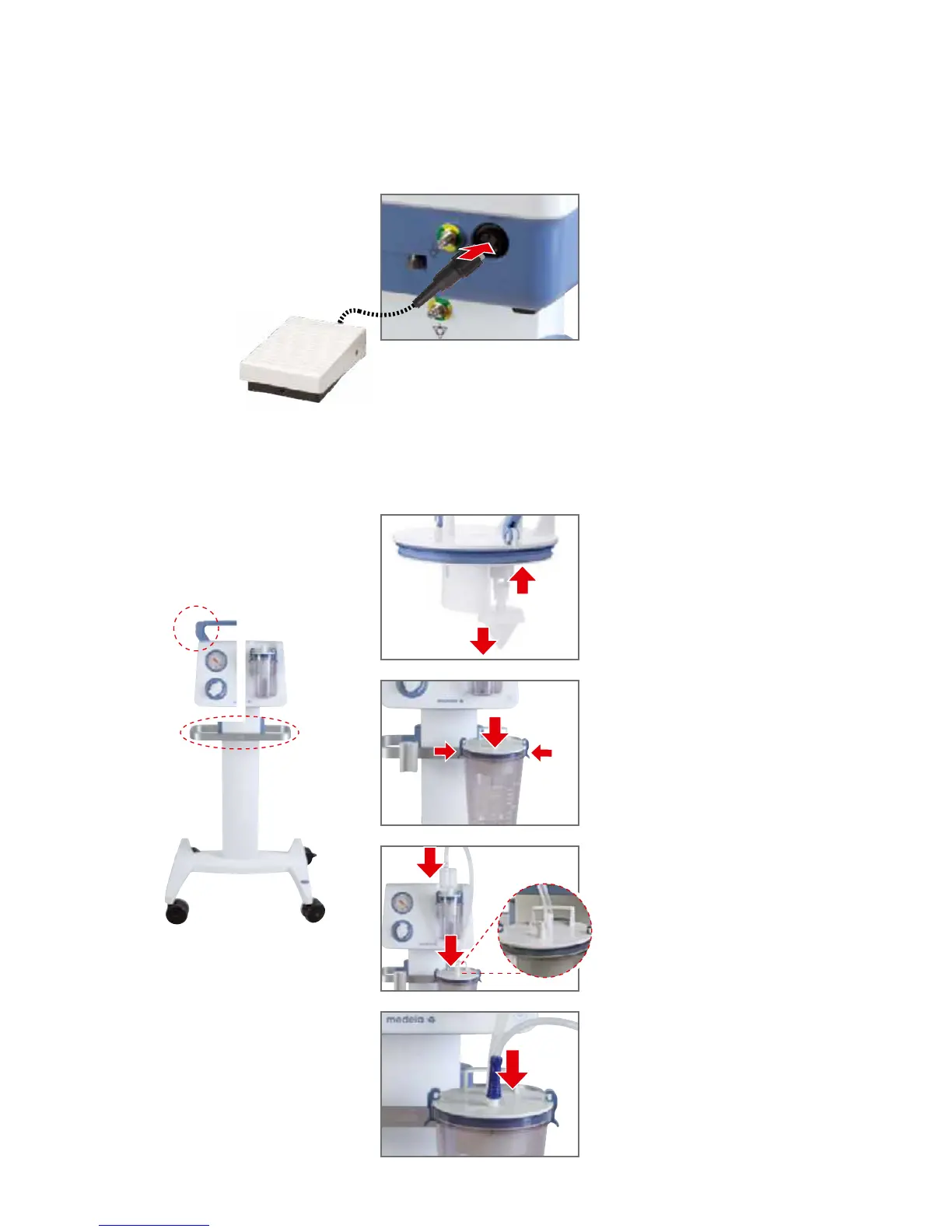

Assembly of the
optional foot switch
1 1.1 Connect the optional foot
switch to the pump by
plugging in the plug.
1.2 Test the correct function-
ning of the foot switch.
6.3
Assembly of the
REUSABLE
collection system
positions for jars:
6.4a
