Medeli DD620 - Panel & Display Description; Front Panel

5
Panel Description
1. [VOLUME] Knob
Adjust the phone volume level.
Note:
Rotate the [VOLUME] knob anticlockwise to the minimum
position before power on.
2. [POWER] Button
Press this button to power on/ off the module.
3. [DBT] (DOUBLE BASS TRIGGER) Button
Turn DBT function on/ off.
*Turn DBT function on. It can generate two or three
continuous kick sounds when you step on the bass drum
only once. Easy to achieve double bass pedal techniques.
4. [COACH] Button
Enter learning mode.
5. [AFI] (AUTO FILL IN) button
Turn AFI function on/ off.
*Turn AFI function on when play a song. Strike specified
AFI trigger to play intro/ ending or fill drum solos without
striking a pad.
6. [CLICK] Button
Start/Stop the metronome; enter the metronome
parameter setting mode.
7. [KIT/VOICE] Button
Shortly press: enter drum kit mode.
Press and hold: enter voice mode.
8. [SONG/REC] Button
Shortly press: enter the song mode.
Press and hold: enter the quick record mode.
9. [UTILITY] Button
Enter the utility mode.
10. [TEMPO] Button
Adjust the tempo value.
11. [SAVE/ENTER] Button
Save the drum kit / pad settings.
12. [START/STOP] Button
Start / Stop playing songs.
13. [PAGE] Button
Switch between the settings of different functions.
14. [+]/ [-] Button
Gradually increasing or decreasing the value of settings.
15. LCD Display
Shows the name and parameter settings of Kit, Voice,
Song and so on.

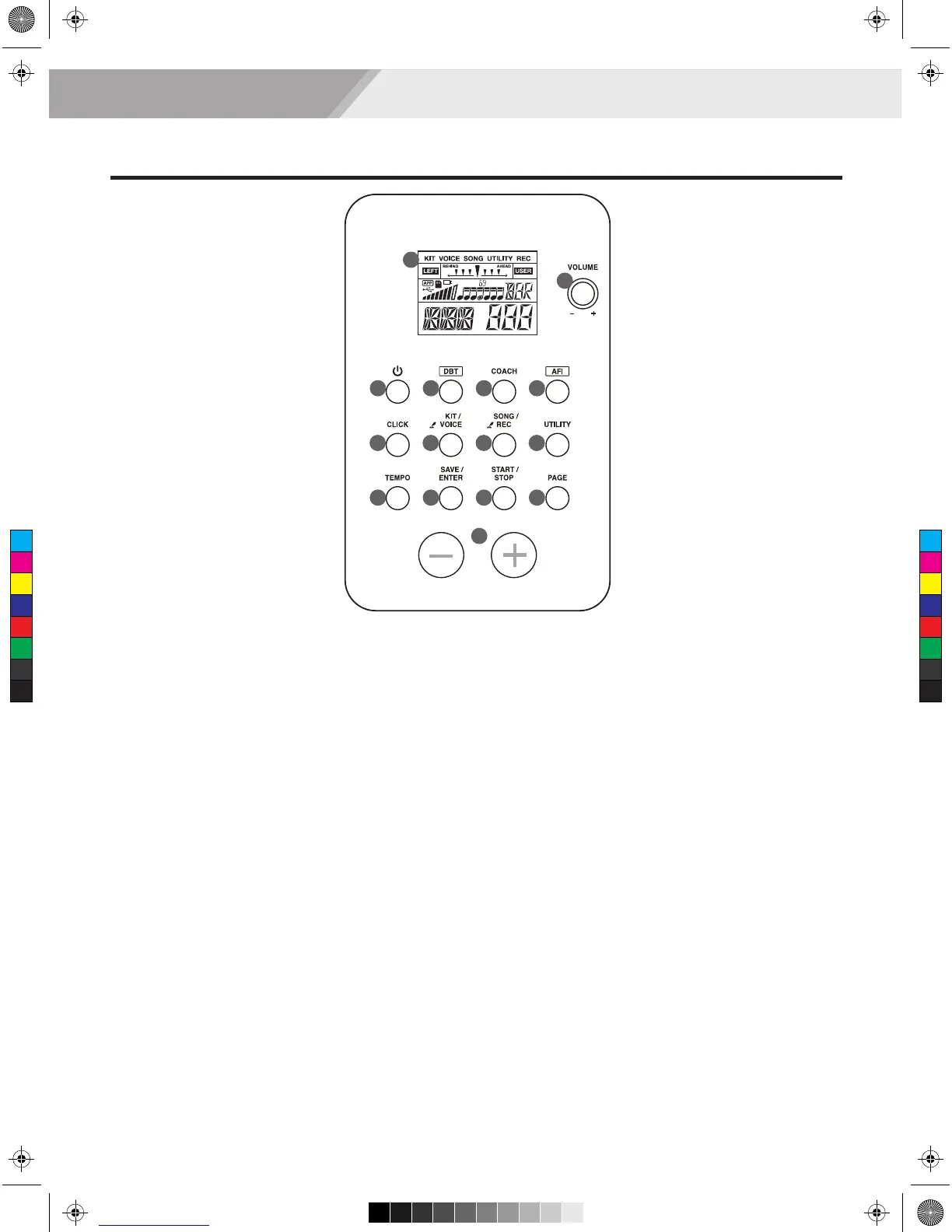

Front Panel
1
2 3
4
5
6 7 8
9
10 11 12 13
14
15
