Medeli M12 User Manual

SUSTAIN
PEDAL
PHONE S/
OUTPUT
SUSTAIN
PEDAL
PHONE S/
OUTPUT
SUSTAIN
PEDAL
PHONE S/
OUTPUT
SUSTAIN
PEDAL
PHONE S/
OUTPUT

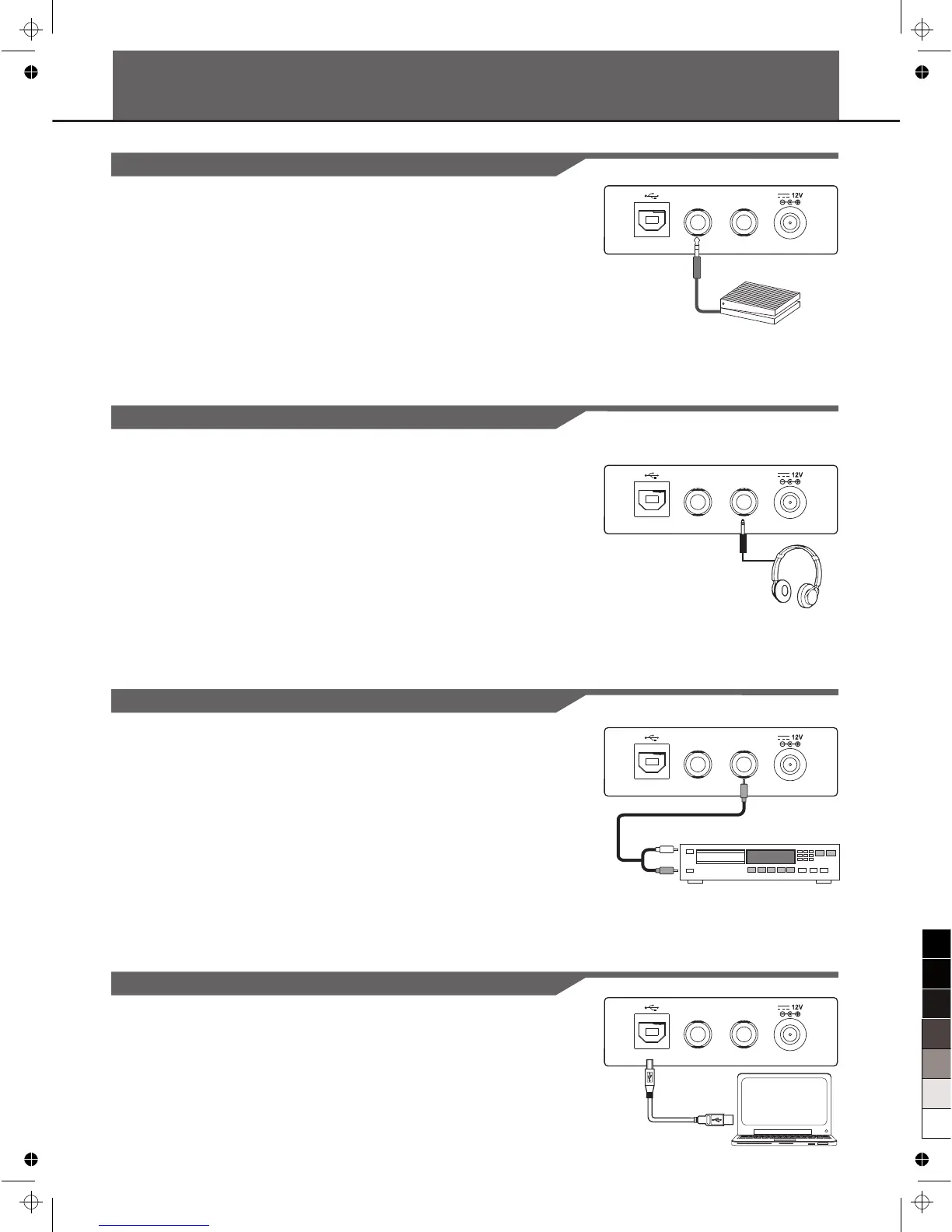

Connections
Connecting a Computer
7
The instrument receives and transmits MIDI messages via the USB
connector.
Connecting a pair of Headphones
A standard pair of stereo headphones can be connected to the
PHONES jack for private practice or late-night playing. The internal
stereo speaker system is automatically shut off when a pair of head
phones is plugged into this jack.
Note:
Do not listen with the headphones at high volume for long periods
of time. Doing so may cause hearing loss.
Connecting an Audio Equipment
The PHONES jack can be also connected with an audio equipment,
such as an amplifier, mixer, recorder,etc.
Note:
To avoid damaging the speakers, please ensure that the volume has
been set to the minimum level before connecting the power and other
devices.
Connecting a Footswitch
An optional footswitch can be plugged into the sustain jack and be
used to switch sustain on or off. Simply by pressing a sustain
footswitch, you will have a natural sustain as you play.
0
5
25
75
95
100
AW_M12_Manual_G04_150209
2015󾾠󾾠3󾾠󾾠1󾾠󾾠 10:56:41

Medeli M12 Specifications

General

Control type	Buttons
MIDI-keyboard number of keys	61 keys
Product color	Silver
Volume control	Rotary
Pitch bend wheel	Yes
Maximum polyphony (notes)	32
Music memory capacity (songs)	1
Display type	LCD
Interface	-
Power source type	DC
Power consumption (typical)	12 W

Weight and Dimensions

Depth	955 mm
Width	360 mm
Height	145 mm
Weight	5500 g
