MIDI
Musical Instrument Digital Interface. The
standard interface between PC and Electronic
instrument
The keyboard is equipped with standard MIDI
interface, including 1 MIDI IN and 1 MIDI OUT.
Connection
The keyboard can connected with PC or other
MIDI equipment.

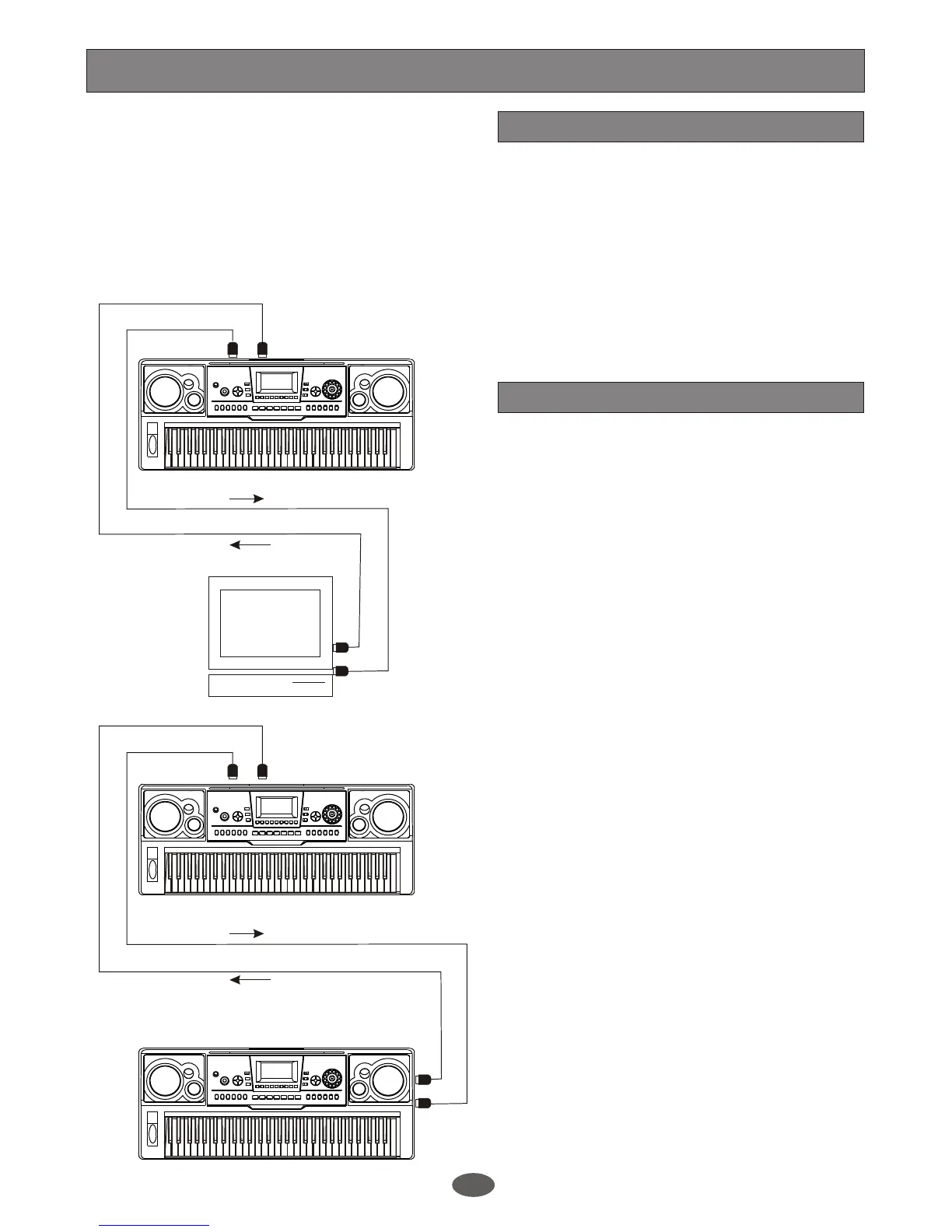

MIDI Connection
1.
1.
2.
3.
2.
The method of connection
Connect the MIDI interface with PC.
Connect the MIDI interface with the other MIDI
interface.
3.
Major application
The keyboard can control other equipment or
electronic instrument.
Other equipment can control the keyboard.
PC recorded data(MIDI) can be played on the
keyboard.
MIDI transmit
MIDI IN
MIDI OUT
29
MIDI
What is MIDI?
Connection rule
In midi connection, the equipment which
control another equipment is called Host
Equipment ,while another is called affiliated
Equipment.
The host equipment's MIDI OUT connect with
affiliated equipment's MIDI IN
Cannot connect MIDI OUT with MIDI IN on
the same equipment.
MIDI receive
MIDI IN MIDI OUT
MIDI transmit
MIDI IN
MIDI OUT
MIDI receive
MIDI IN MIDI OUT
