DRW-015 (GPI171)
Revised: 11/23/09
11
Cup Holder Assembly

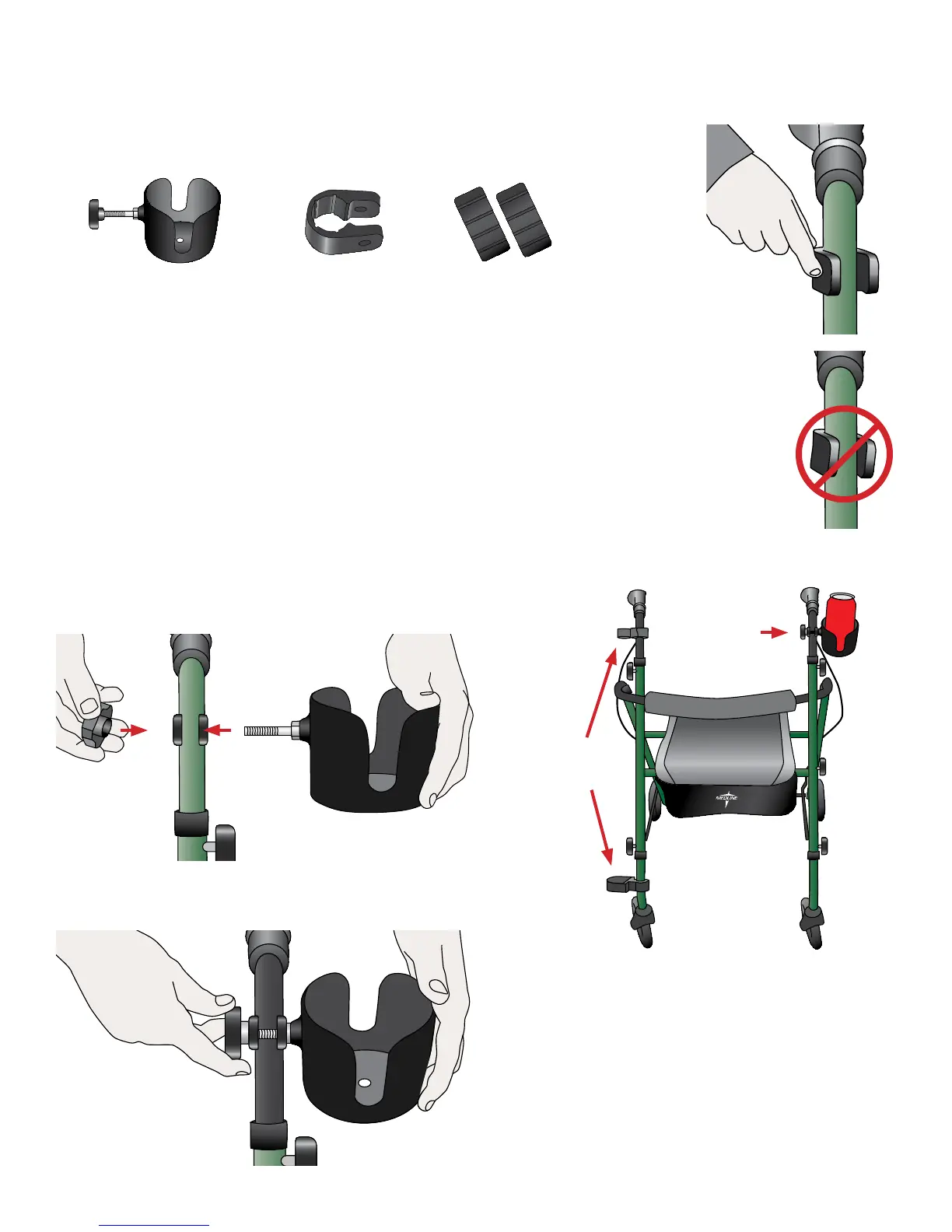

1. Make sure you have all the necessary pieces.
2. Snap U-shaped clamp onto the tubing of your mobility
devise (see Figure A).
Note: Be sure the clamp is positioned in such a way that
it allows the cup to sit level, NOT tilted in a direction
that might allow your drink to spill (see Figure B).
3. Remove the star-shaped knob from the cup holder, insert
holder through the opening in the clamp, and tighten the
knob to assure that the cup holder stays tightly attached
(see Figures C and D). (Important: Hand Tighten Only!)
Note: If necessary, insert a rubber
sleeve in the clamp to better fit the
size of the tubing. Whether you use
a sleeve or not, the clamp should fit
tightly onto the tubing, otherwise the
cup holder is susceptible to slipping
and spilling your drink, which may
cause injuries.
Enjoy your drink on the go!
