DRW-015 (GPI171)
Revised: 11/23/09
8

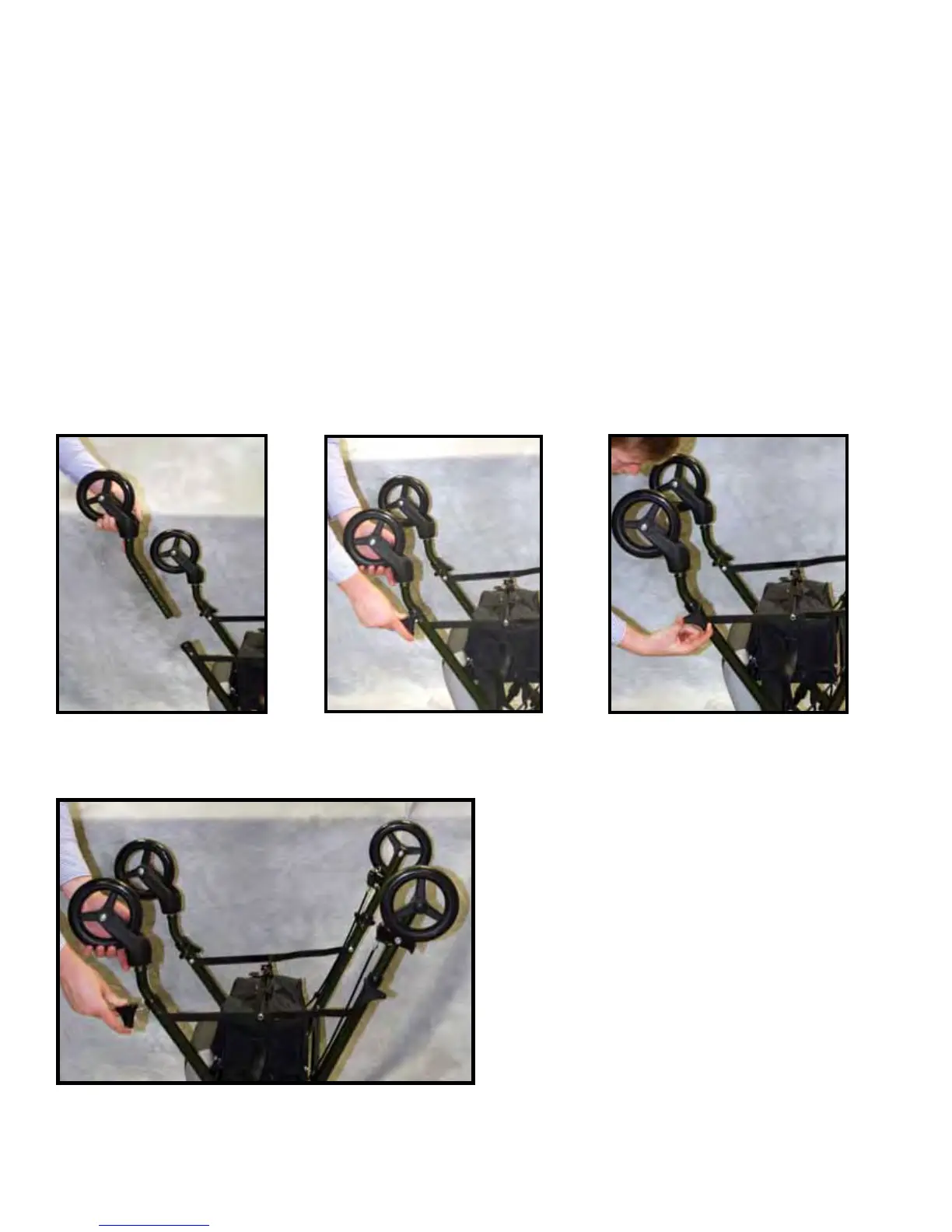

Front Wheel Assembly
1. When inserting front wheel, make sure FRONT sticker is pointed toward the
front and away from walker (see Figure A).
2. Insert wheel to desired height depicted by numbered holes (set to the same
number as rear wheels) (see Figure B).
3. Place triangular hand screw into hole. Make sure triangular hand screw stays
outside of walker frame (see Figure B).
4. Tighten triangular screw (Important: Hand Tighten Only!) until secure
(see Figure C).
5. Repeat steps 1-4 for other front wheel.
Figure A Figure B Figure C
To Next Page
