DRW-015 (GPI171)
Revised: 11/23/09
To determine proper height, stand upright behind the walker with
shoulders relaxed, arms hanging at your side and eyes looking straight
ahead. Standing in current position, the hand grips (A) of the walker
should be adjusted to a height even with the wrists. This will position
the arms at an approximated 20 to 30 degree bend when using the
walker. Secure the wheels to the closest hole to the desired height.
Insert and tighten the triangular hand screws until secure.
(Important: Hand Tighten Only!)
Hole 1 Hole 2 Hole 3 Hole 4
Hole 1
30.50" (77.5 cm) 31" (78.7 cm) 32" (81.3 cm) 33" (83.8 cm)
Hole 2
31.50" (80 cm) 32" (81.3 cm) 33" (83.8 cm) 34" (86.4 cm)
Hole 3
32.50" (82.6 cm) 33" (83.8 cm) 34" (86.4 cm) 35" (88.9 cm)
Hole 4
33.25" (84.5 cm) 33.75" (85.7 cm) 34.75" (88.3 cm) 35.75" (90.8 cm)
Hole 5
34" (86.4 cm) 34.50" (87.6 cm) 35.50" (90 cm) 36.50" (92.7 cm)
Hole 6
34.75" (88.3 cm) 35.25" (89.5 cm) 36.25" (92.1 cm) 37.25" (94.6 cm)
9
Brake Handle Assembly

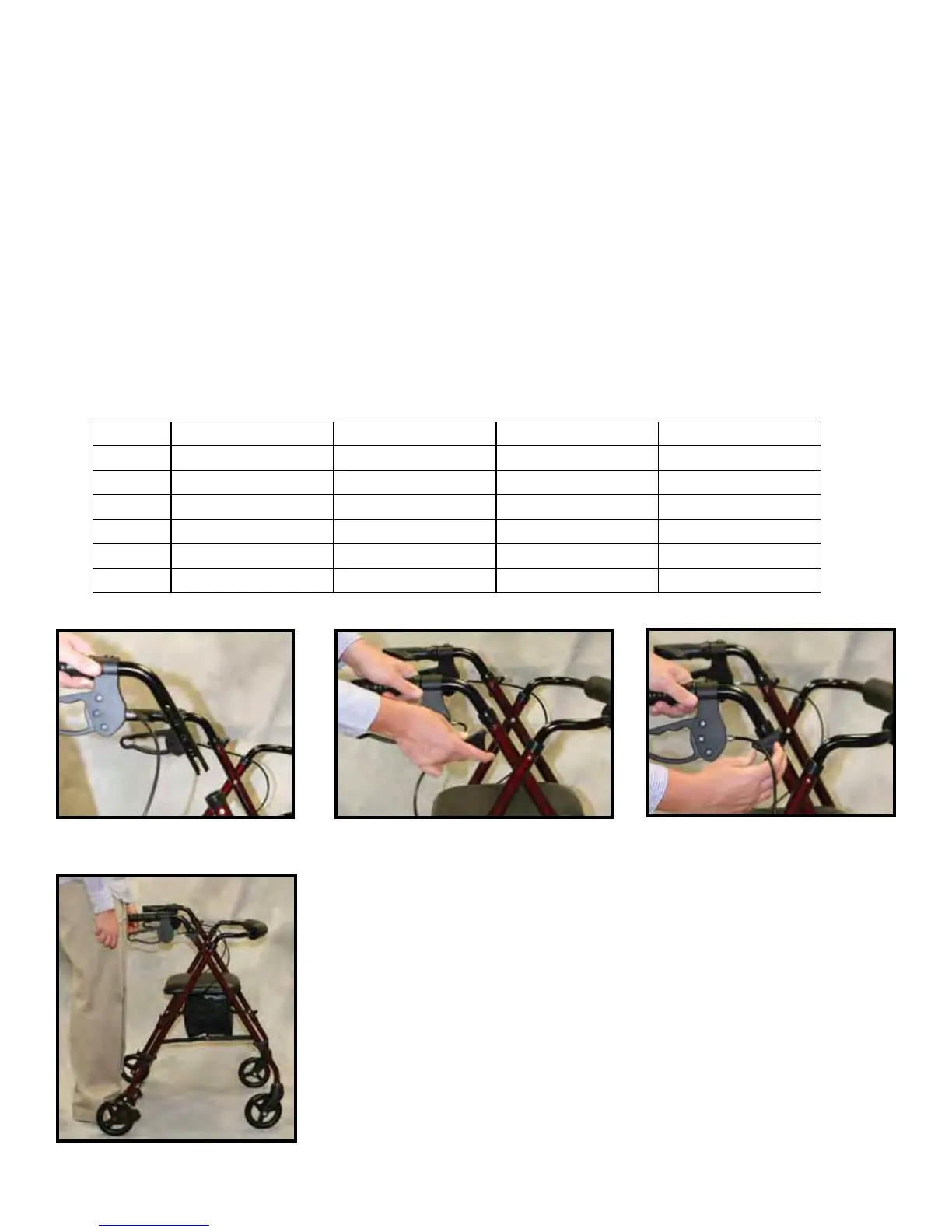

1. Insert hand grip into appropriate hole (see Figure A and chart below).
Note: Keep brake cable on outside of walker.
2. Insert triangular hand screw into hole on outside of walker frame (see Figure B).
(Important: Insert hand screw into one of the 4 holes provided.
DO NOT put hand screw in open slot at end of hand grip!)
3. Hand tighten screw until secure (see Figure C). (Important: Hand Tighten Only!)
4. Repeat steps 1-4 for other hand grip.
Deluxe Rolling Walker Hole Measurements:
Arm Height
Figure CFigure BFigure A
Seat height adjustable from 19 to 23.25" (48.2 to 59 cm)
Handle height adjust
able from 30.5 to 37.25" (77.5 to 94.6 cm)
