ASSEMBLY
ASSEMBLING GUIDE BAR AND SAW CHAIN
WARNING The saw chain is very sharp. Be sure to wear safety gloves.
1. Pull the front handle guard/chain brake towards the front handle to check that the chain
brake is not on.
2. Loosen two nuts, then remove the clutch cover and the spacer.
3. Hook the chain onto the sprocket. While tting the saw chain around the guide bar,
mount the guide bar to the power unit.
A. Saw chain
B. Guide bar
C. Front hand guard/
chain brake
D. Starter handle
E. Air lter cover
F. Lock nut
G. Choke knob
H. Trigger lock-out
I. Rear handle
J. Throttle trigger
K. Engine switch
L. Oil tank
M. Fuel Tank
N. Front handle
O. Guide bar scabbard
P. Primer bulb

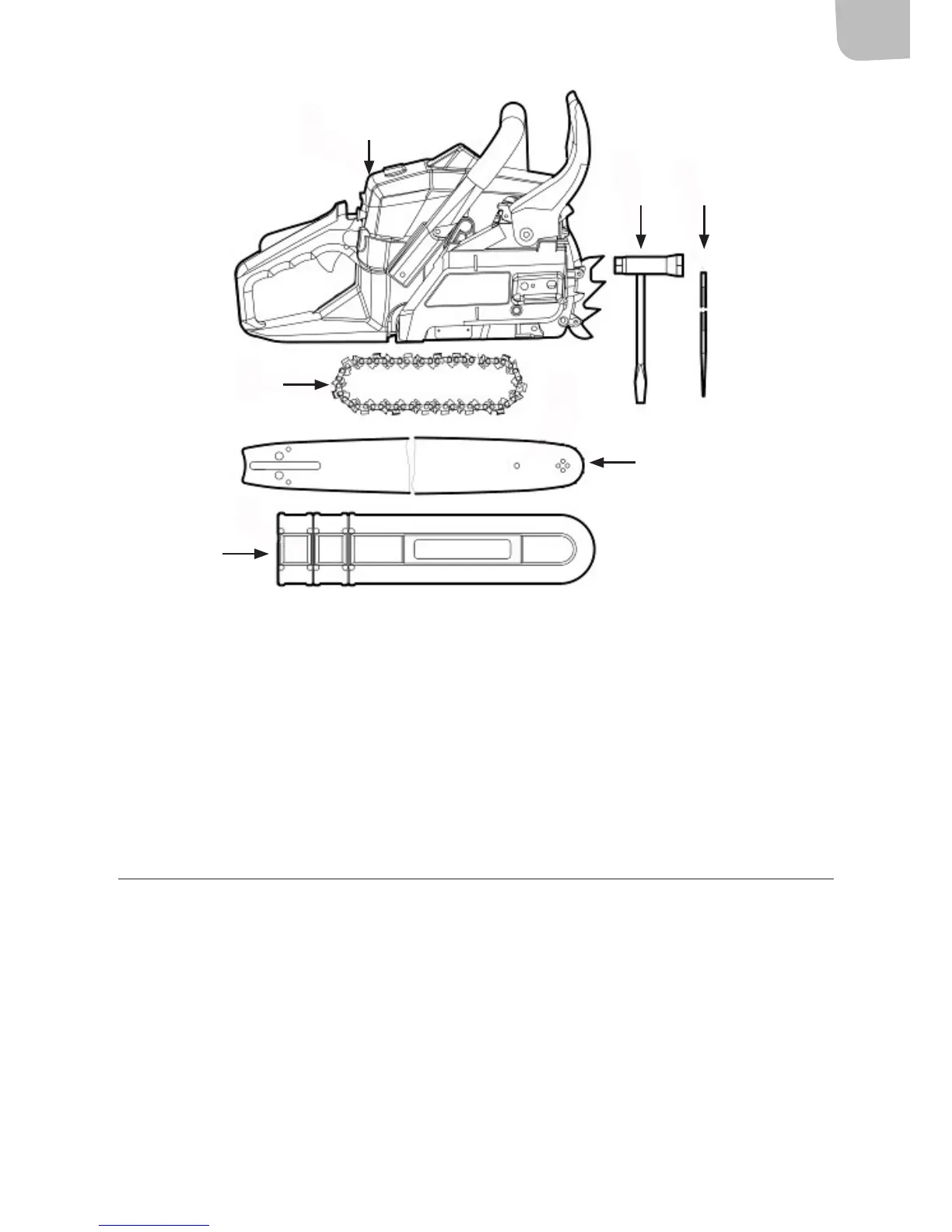

Q. Clutch cover
R. Engine
S. Spark plug wrench
T. File
U. Saw chain
V. Guide bar
W. Guide bar scabbard
R
U
V
W
S T
