5.2 Oiling and Lubricant
The operator should be responsible for the proper lubrication of the machine. The grade and quality
of lubricant are given in the lubrication chart below :

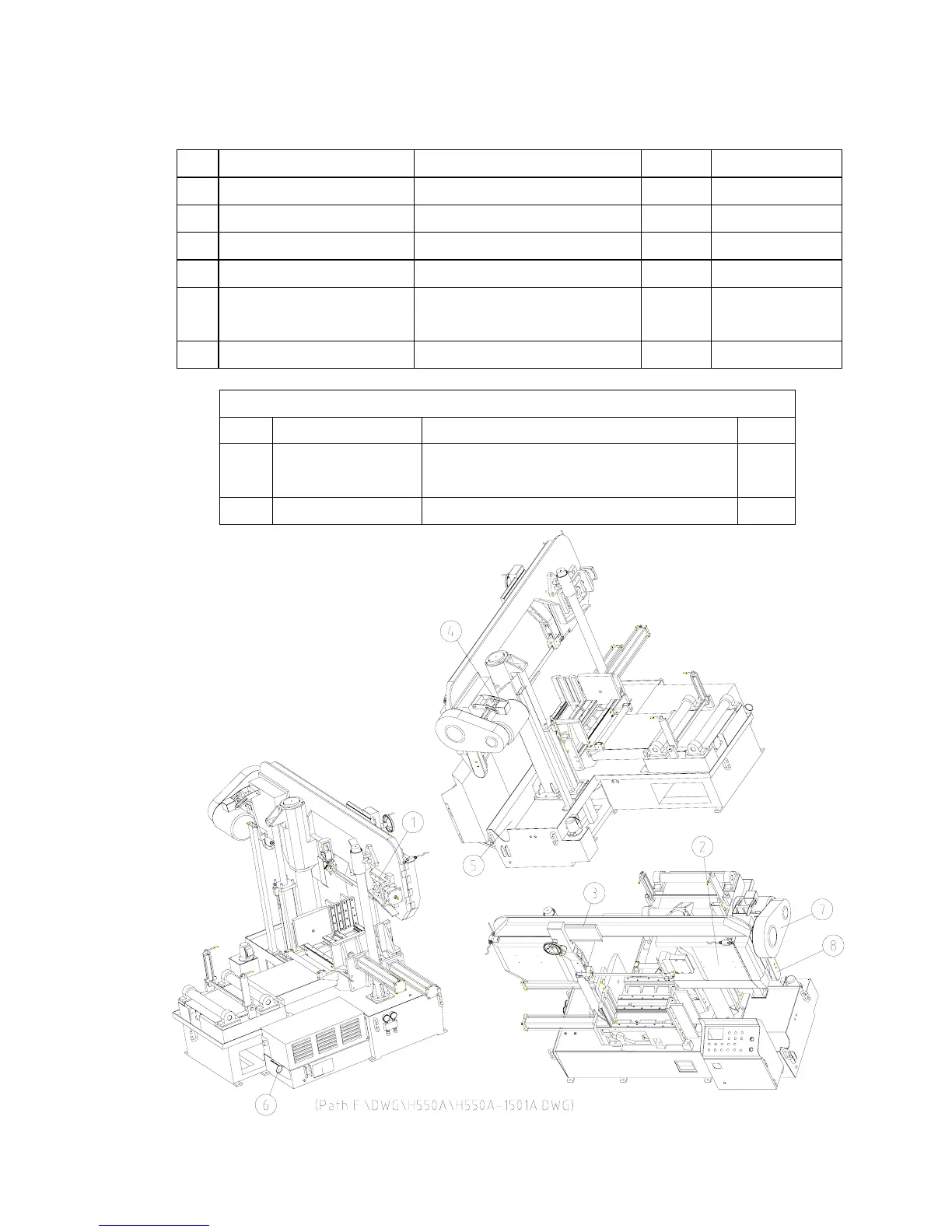

Oil Lubrication chart
Lubricating Point Lubricant Quantity Oiling Frequency
1. Blade Tension Device DAPHNE FLUID 32T Few Twice a year
2. Drive Wheel Bearing Grease Few Thrice a year
3. Guide Slides Shell Tonna 33 Few Oil daily
4. Transmission Gear Box DAPHNE GEAR LUBE 320 Few Twice a year
5. Cutting Fluid Tank
Cutting Oil Mixture
(KH ULTRA COOL EX-2)
67 litre Daily
6. Hydraulic Oil Tank DAPHNE FLUID 32T 65 litre Twice a year
Belt Size
NO. Belt Name Belt Size Qty.
7 Motor Belt
For 50HZ use 3V670 & 60HZ use 3V630
For Variable use 5V600
1
8 Wire Brush Belt M56 1
5 - 2
