MEGAFLO Eco - 8 Bar Pressure Relief Valve

Unvented Hot Water Cylinder
13
8 Bar Pressure Relief Valve (see Figure 5 below)
This should be installed between the 3 bar Pressure Reducing Valve and the MEGAFLO Eco cylinder. Should a balanced pressure cold water draw off supply be
required for the cold water outlets, this should be taken off between the 3 bar Pressure Reducing Valve and 8 bar Pressure Relief Valve (see Figure
7, p. 14). Branches to drinking water outlets should be taken BEFORE the 8 bar Pressure Relief Valve to avoid the possibility of warm
expanded water being drawn from the tap.

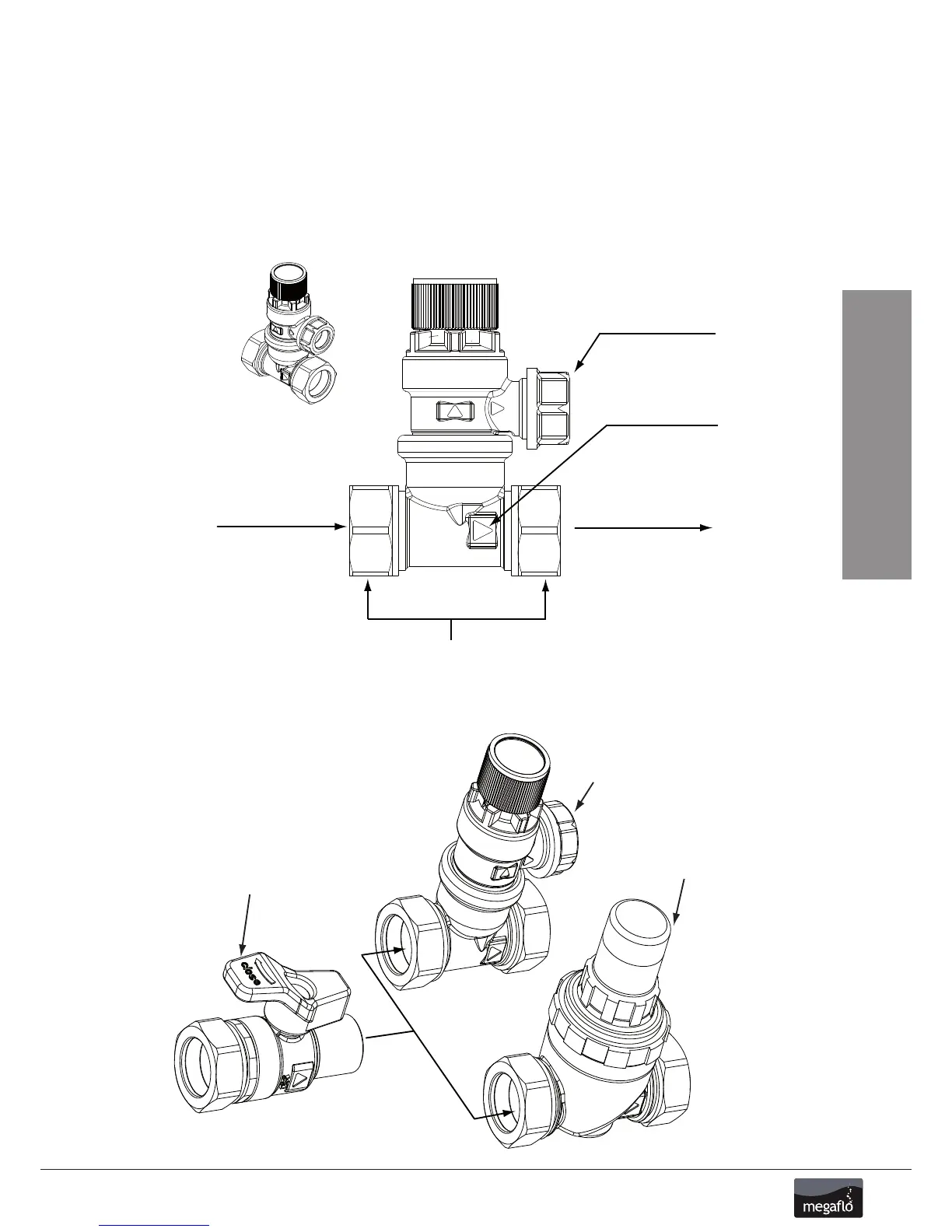

Figure 5 - 8 bar Pressure Relief Valve
Figure 6 - Valve set can be grouped two ways
Stopcock can be grouped with either
3 bar Pressure Reducing Valve or
8 bar Pressure Relief Valve on the
inlet to either valve only
8 bar Pressure Relief
Valve
3 bar Pressure
Reducing Valve
Stopcock
INSTALLATION AND
COMMISSIONING INSTRUCTIONS (2)
22mm compression connection
Outlet to MEGAFLO Eco
From cold water
combination valve
Take note of flow
direction
Pressure Relief Valve
discharge connection
Pressure Relief Valve
“TEE” ( incorporates
Check Valve )
