MEGAFLO Eco - Indirect Control Assembly; Indirect Exploded View

Unvented Hot Water Cylinder
30

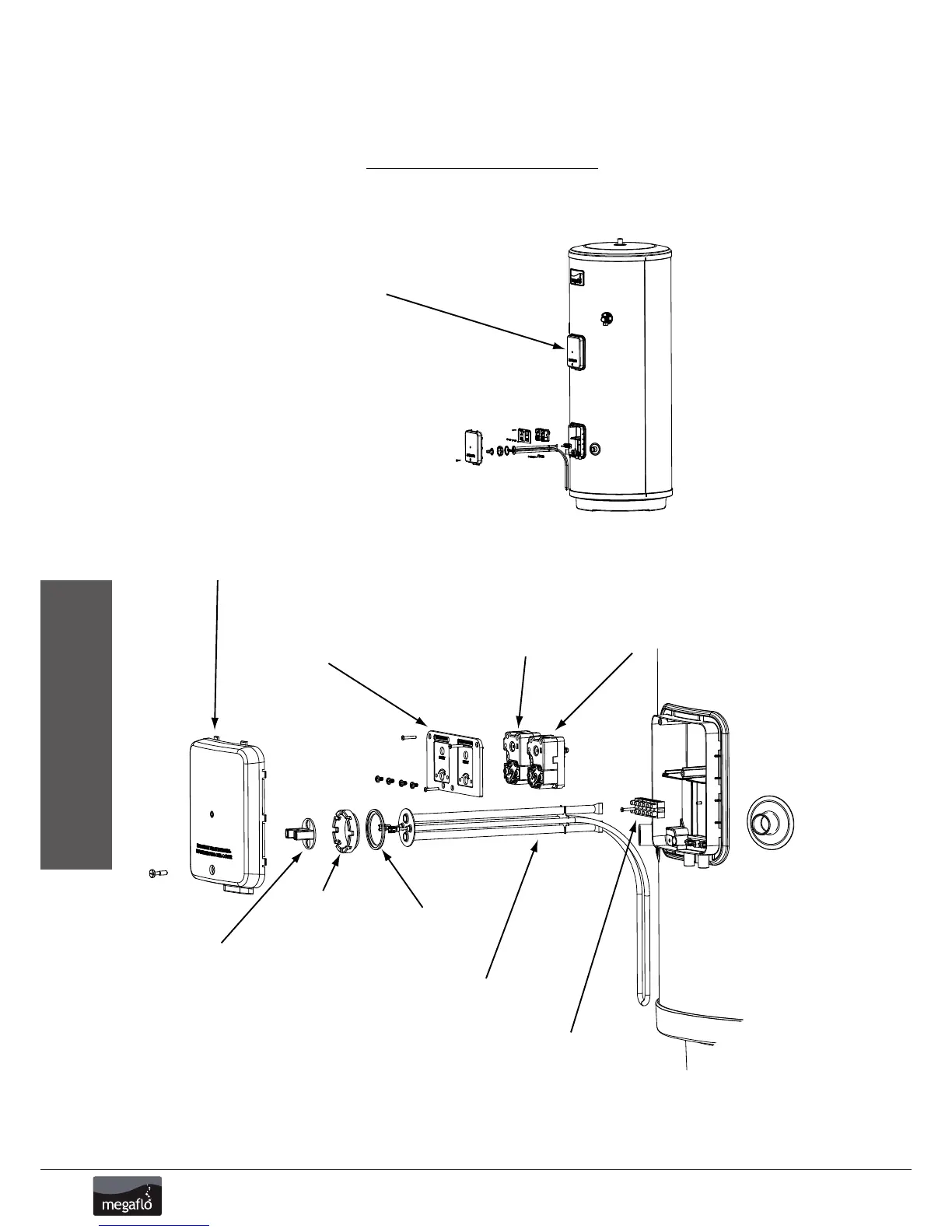

Figure 20: Indirect Exploded View
MAINTENANCE AND
SERVICING (3)
Terminal Cover (indirect)
95:614:118
Mounting PLate
95:607:931
6 Way Terminal Block
95:607:933
Terminal Shroud
95:606:993
Backnut
95:607:940
Gasket
95:611:822
Incoloy Immersion
Heater - Lower
95:606:984
Direct Combined
Thermostat and
Thermal Cut-Out
95:612:717
Indirect Combined
Thermostat and
Thermal Cut-Out
95:612:716
Indirect Control Assembly
For 210 Litre and above a further
Boost Immersion Heater (direct control
assembly) accessory
is available 95:970:554
See diagram A on page 33
