MEGAFLO Eco - Safety Precautions

Unvented Hot Water Cylinder
23
N
L
Direct Wiring Layout
1.5mm² 3 Core
HOFR sheathed
cable
THERMAL CUT-OUT RESET BUTTON
SPINDLE POSITIONS
= MINIMUM TEMP
= MAXIMUM TEMP
= APPROX 60 °C
ROTATE SPINDLE CLOCKWISE
FOR TEMPERATURE INCREASE
AND COUNTER CLOCKWISE
FOR TEMPERATURE DECREASE
TEMPERATURE ADJUSTING
SPINDLE
Figure 16 - Adjustment details
INSTALLATION AND
COMMISSIONING INSTRUCTIONS (2)
Safety
DO NOT BYPASS THE THERMAL CUT-OUT(S) IN ANY CIRCUMSTANCES.
DISCONNECT FROM THE MAINS SUPPLY BEFORE REMOVING ANY COVERS.
NEVER ATTEMPT TO REPLACE AN IMMERSION HEATER OTHER THAN WITH THE RECOMMENDED MEGAFLO Eco SPARE PART.

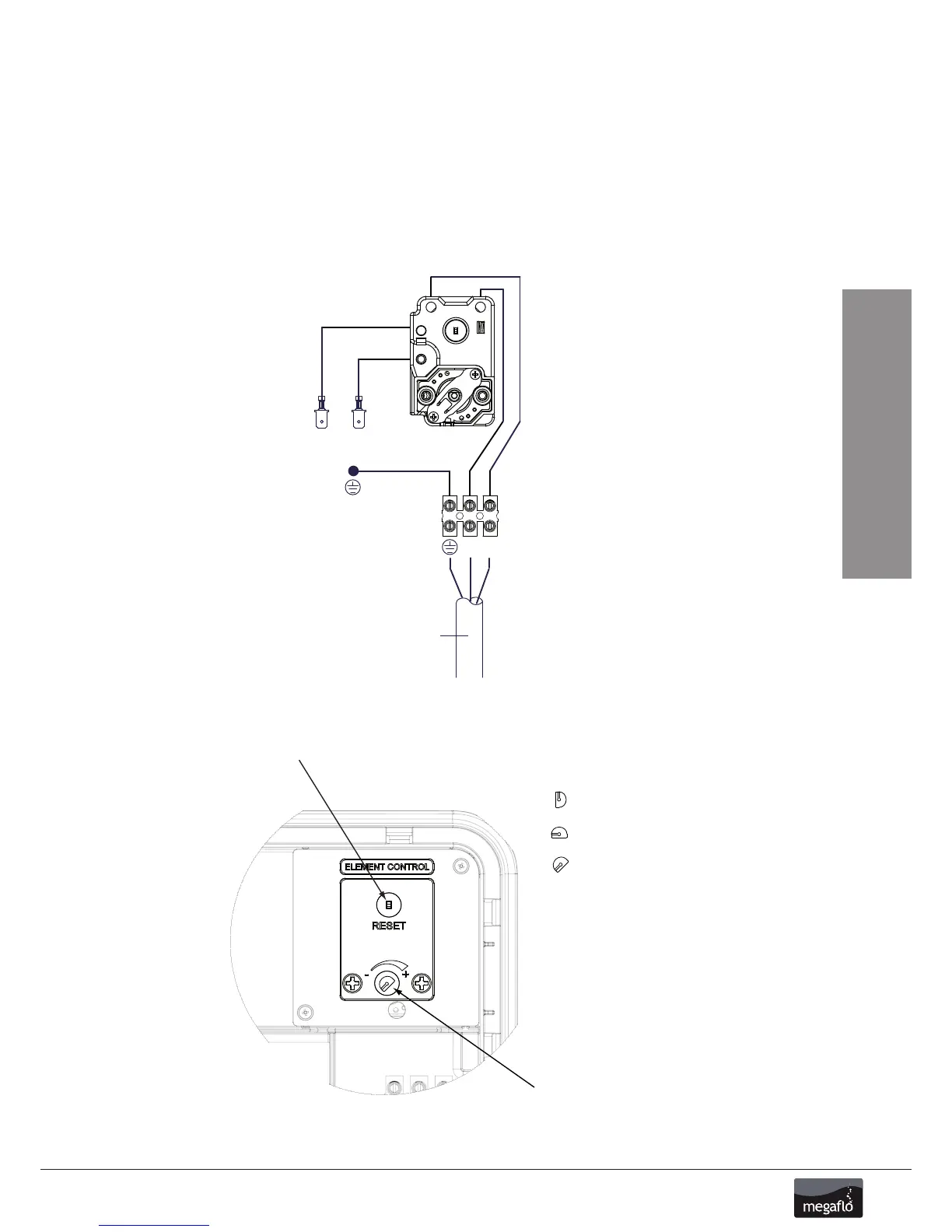

Figure 15- Schematic wiring diagram - Direct immersion heater with adjustment details
