MEGAFLO Eco - Direct Exploded View; Direct Control Assembly

Unvented Hot Water Cylinder
31

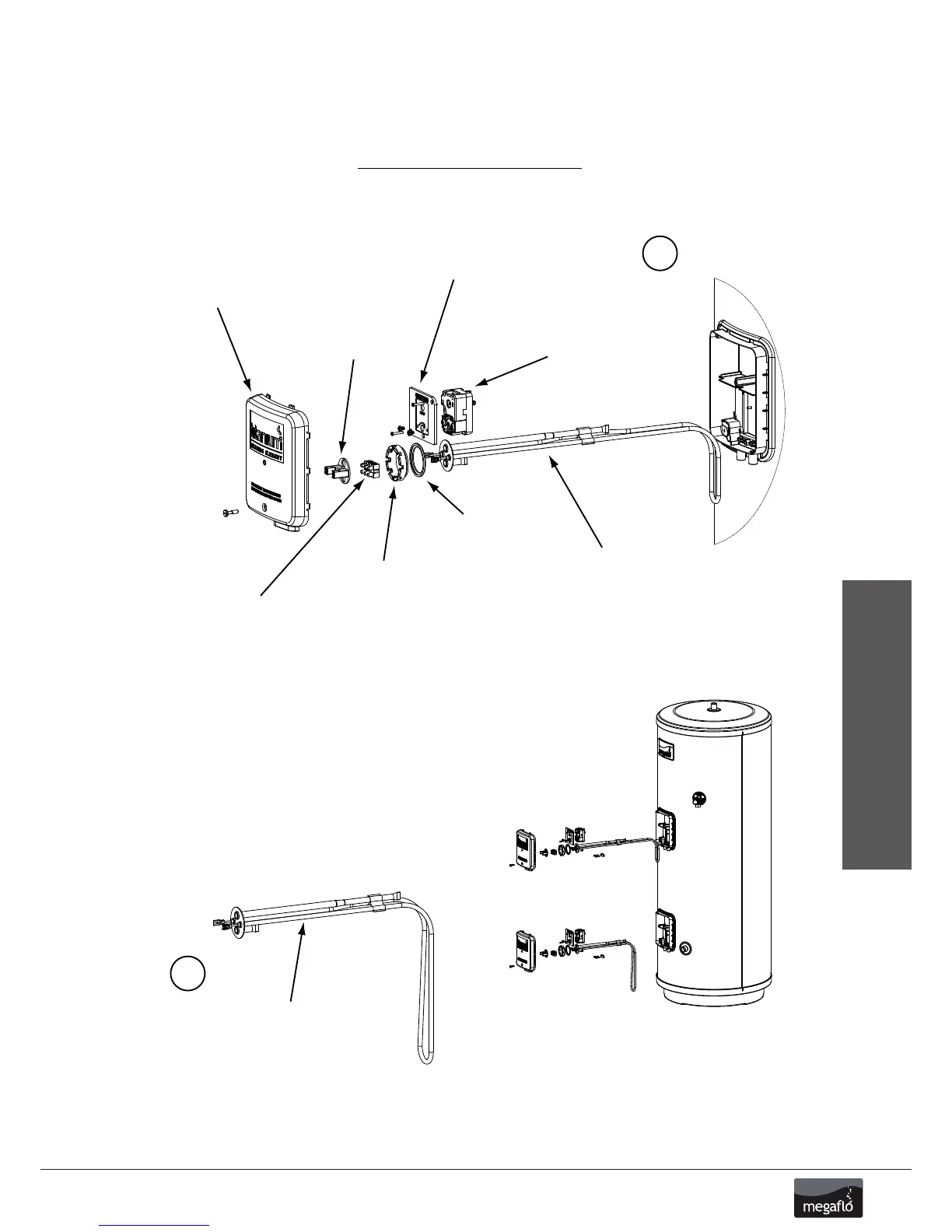

Figure21: Direct Exploded View
MAINTENANCE AND
SERVICING (3)
Terminal Cover (direct)
95:614:119
Mounting PLate
95:607:929
3 Way Terminal Block
95:607:932
Titanium Immersion
Heater - Lower
95:606:988
Terminal Shroud
95:606:993
Backnut
95:607:940
Gasket
95:611:822
Titanium Immersion
Heater - Upper
95:606:989
Direct Combined Thermostat
and Thermal Cut-Out
95:612:717
Spare components are comman to Upper and
Lower Direct Control Assemblies Except for
the Upper elements 95:606:989 and Lower
element 95:606:988
A
A
B
B
Direct Control Assembly
