5 ACTIVE BRIDGE

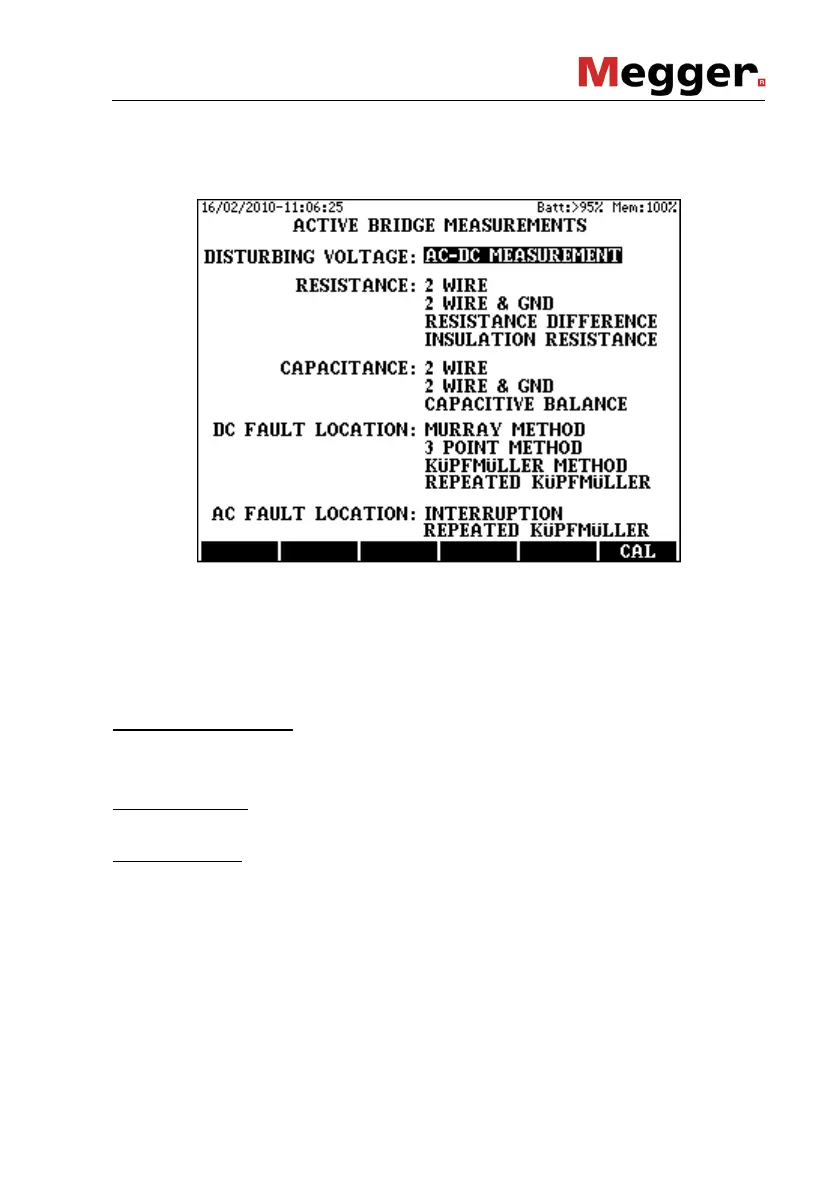

Having the ACTIVE BRIDGE selected in the MAIN MENU the following
Display appears:
5.1 Interference Voltage Measurement (AC and DC)
KMK 8 has a measuring module with balanced input to measure AC and
DC voltages at the same time. Measuring range is 1 to 300 V DC and
1 to 200 V AC, input impedance 2 MOhm
IMPORTANT NOTE
During that measurement the PC connection must be removed!
High voltages on the line may destroy the instrument or the PC!
Mode selection
• Select the AC-DC MEASUREMENT mode and press ENTER
Input selection
• Pressing the Vab(F3), VaE(F4) or VbE(F5) key KMK 8 measures
the AC, DC voltages continuously between the selected two
inputs.
• The measuring range can be changed with the SCALE (F2) key
• Pressing AUTO (F6) KMK 8 performs all the AC-DC voltage
measurements after each other. In auto mode the results can be
saved with key SAVE (F1). The measurement can be restarted
with key START/STOP
To Next Page
