8.4 Insulation Resistance Measurement
Purpose of the test is to measure the insulation resistance between the a
and b wires. KMK 8 in this mode provides fast measurement of pairs
which are not affected by interference volatges! The measuring range is
10 kΩ to 300 MΩ.
Test Procedure
• Open the far endings of a and b wires
• Select PRE MEASUREMENTS/INSULATION RESISTANCE
mode and Press ENTER

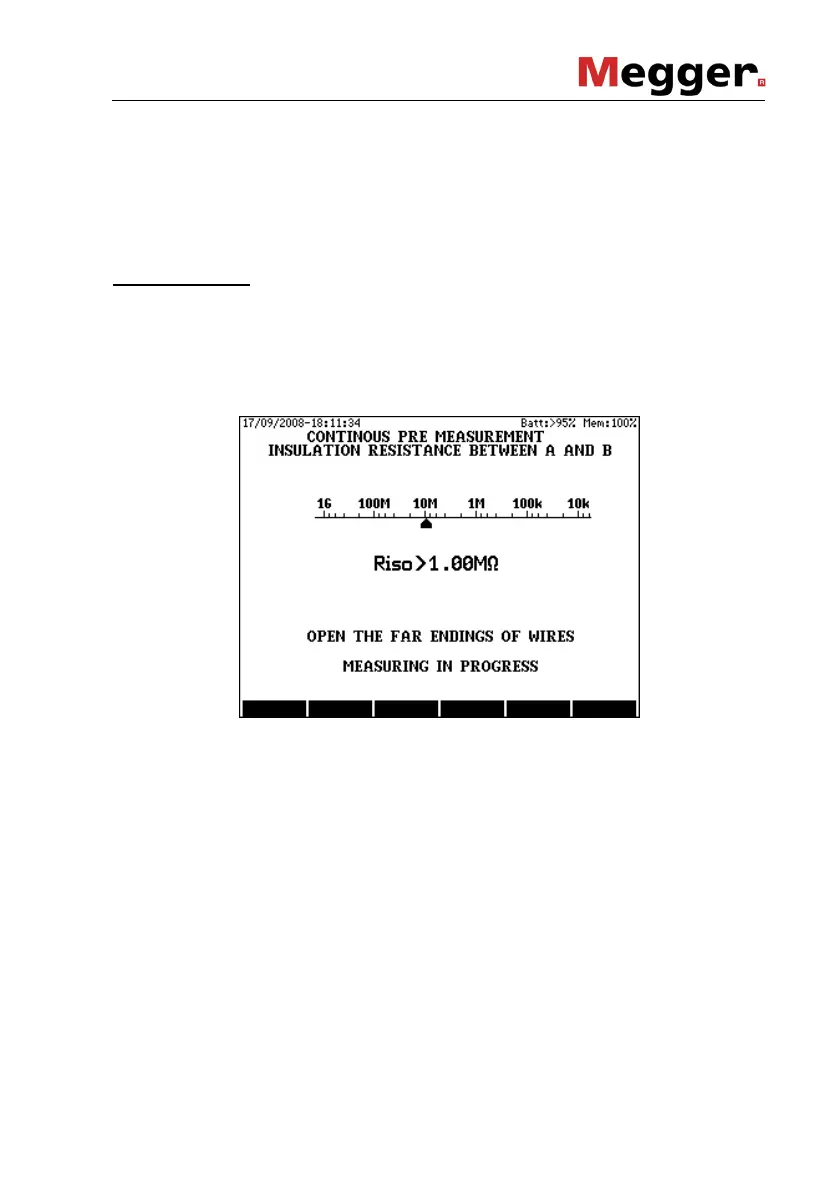

The measurement starts automatically. KMK 8 measures continuously
until stopping the measurement with the START/STOP key.
