8.2 AC DC Voltage Measurement
The purpose of that measurement is to get quick information about the
DC and AC interference voltages between the wires of the tested pair.
Test Procedure
• Open the far endings of the tested pair
• Select the PRE MEASUREMENTS /AC-DC VOLTAGE mode
and press ENTER
The measurement starts automatically. KMK 8 measures continuously
until stopping the measurement with the START/STOP key.
The sensitivity can be changed with the SCALE (F2) key.

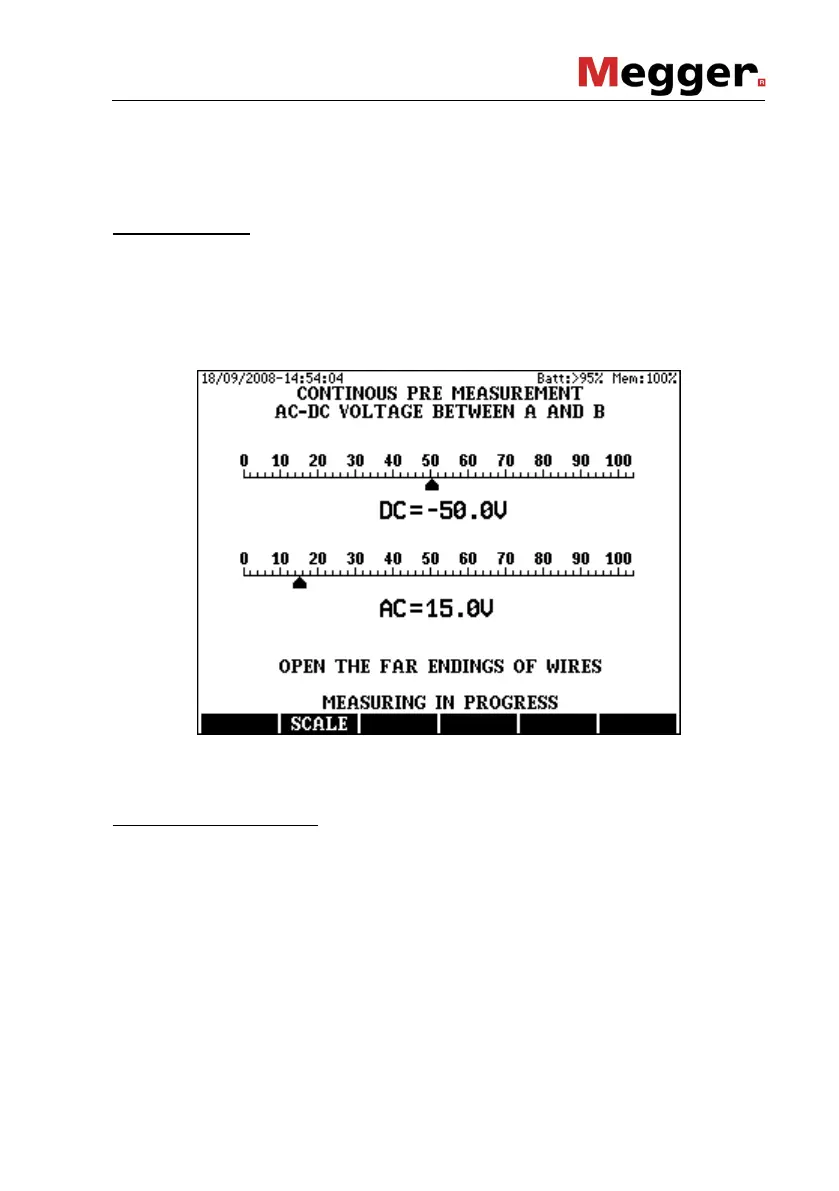

Displayed Test Results
• DC-AC voltages in graphic form
• DC-AC voltages in digital form
