6-20
Bridge Balancing
• Select the minimum gain with key F2.
• Set the pointer to the minimum point of the scale with the M
balancing potentiometer. The minimum point may be on the
negative or positive side of the scale
• Press the 0 KORR (F1) key to shift the pointer to the middle of the
scale
• Increase the gain gradually with key F3 and repeat the first three
points until reaching the perfect balance. The balance is perfect
when the gain is 5 and the pointer stands on the minimum
• When the balancing is completed press ENTER to store the result
(ML).
• Before the second measurement the loop should be closed. Close
it manually or by means of the remote controllable loop-closing
device KLC 8.
In case of manual control:

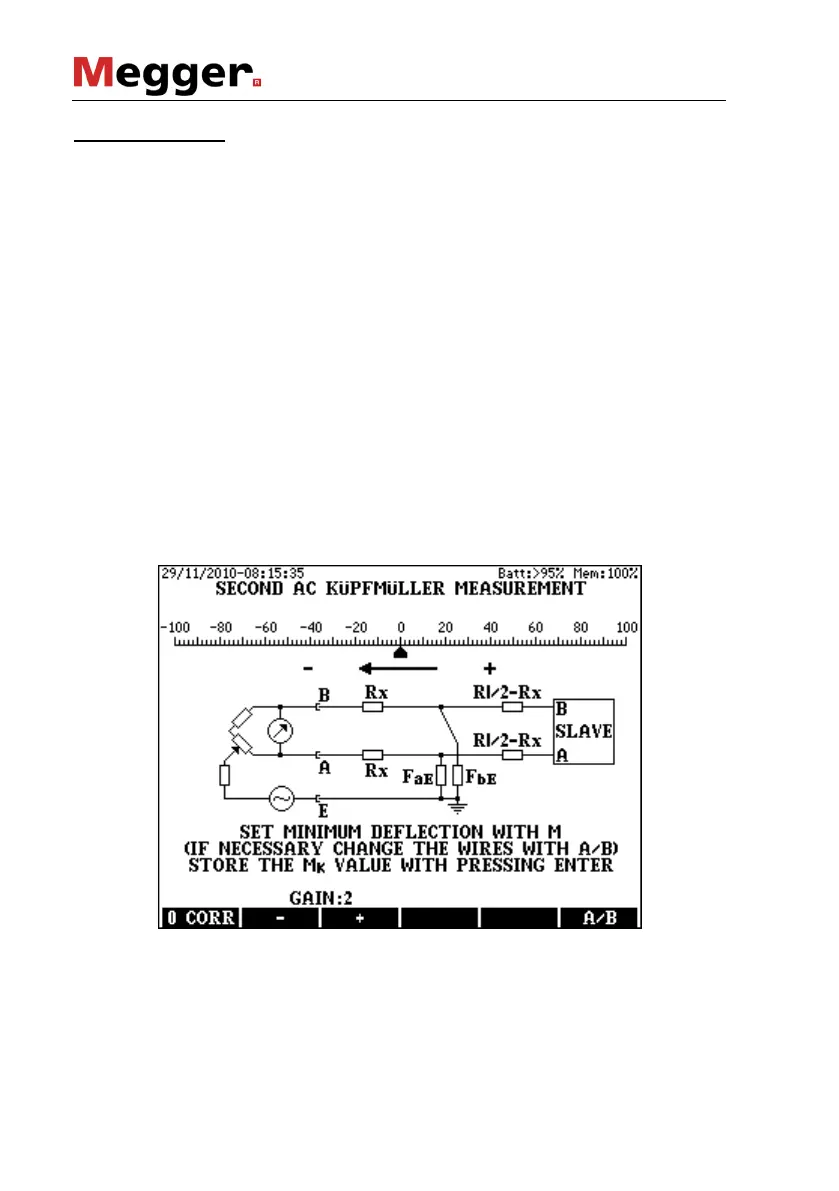

• Start the second measurement pressing the START/STOP key and
the bridge is ready for the second balancing:
Balance the bridge again and press ENTER to store the result (MK) and
to call the result display.
