Instrument Overview

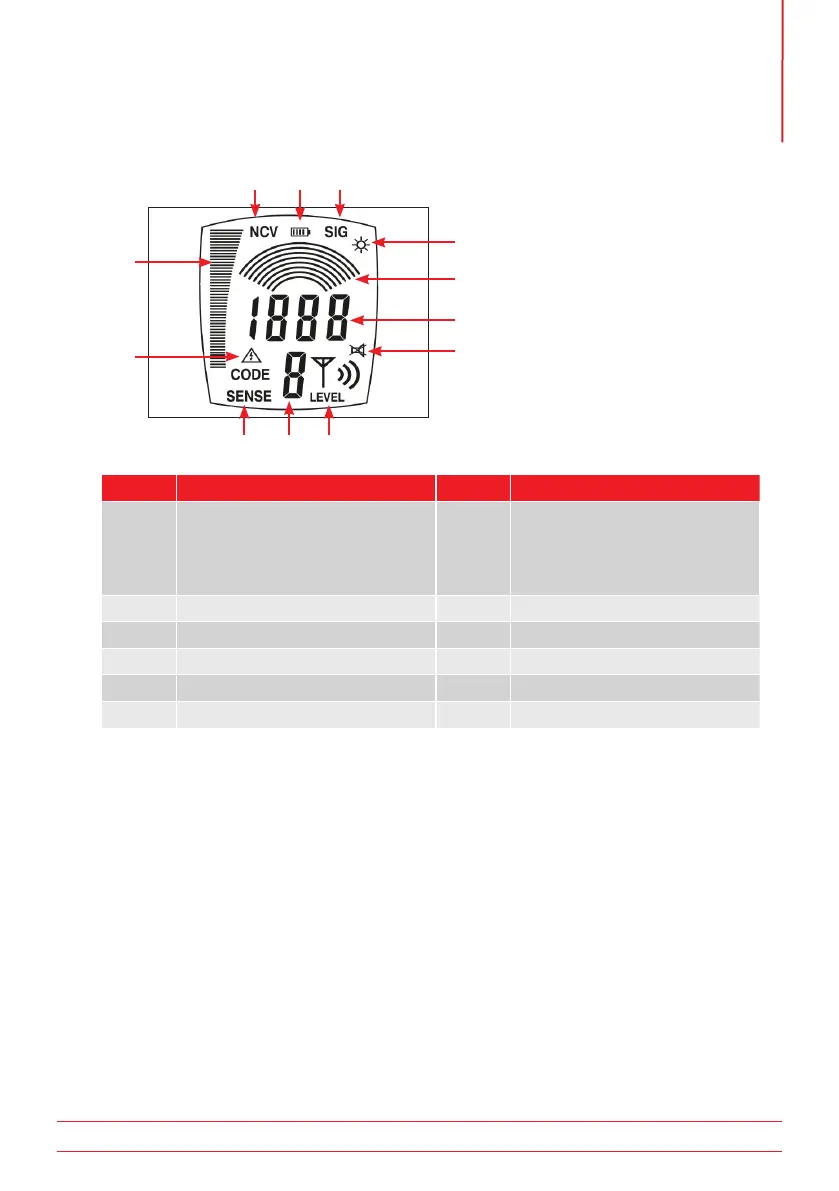

3.5 Receiver display
3
6
11
4
5
9
8
12
2
7
10
1
Item Description Item Description
1 Acoustic signal (ON/OFF) 7 Manual mode sensitivity indicator:
1 arc - low sensitivity
8 arcs - high sensitivity
User selectable using up and down
arrow buttons
2 Torch ON/OFF indication 8 The manual mode active indicator
3 Transmitter signal code 9 Mains voltage indicator (NCV mode)
4 Automatic signal mode active indicator 10 Signal intensity digital display
5 Signal strength bar-graph 11 Transmitter signal level (1 to 3)
6 Battery level 12 Non-contact voltage mode active
