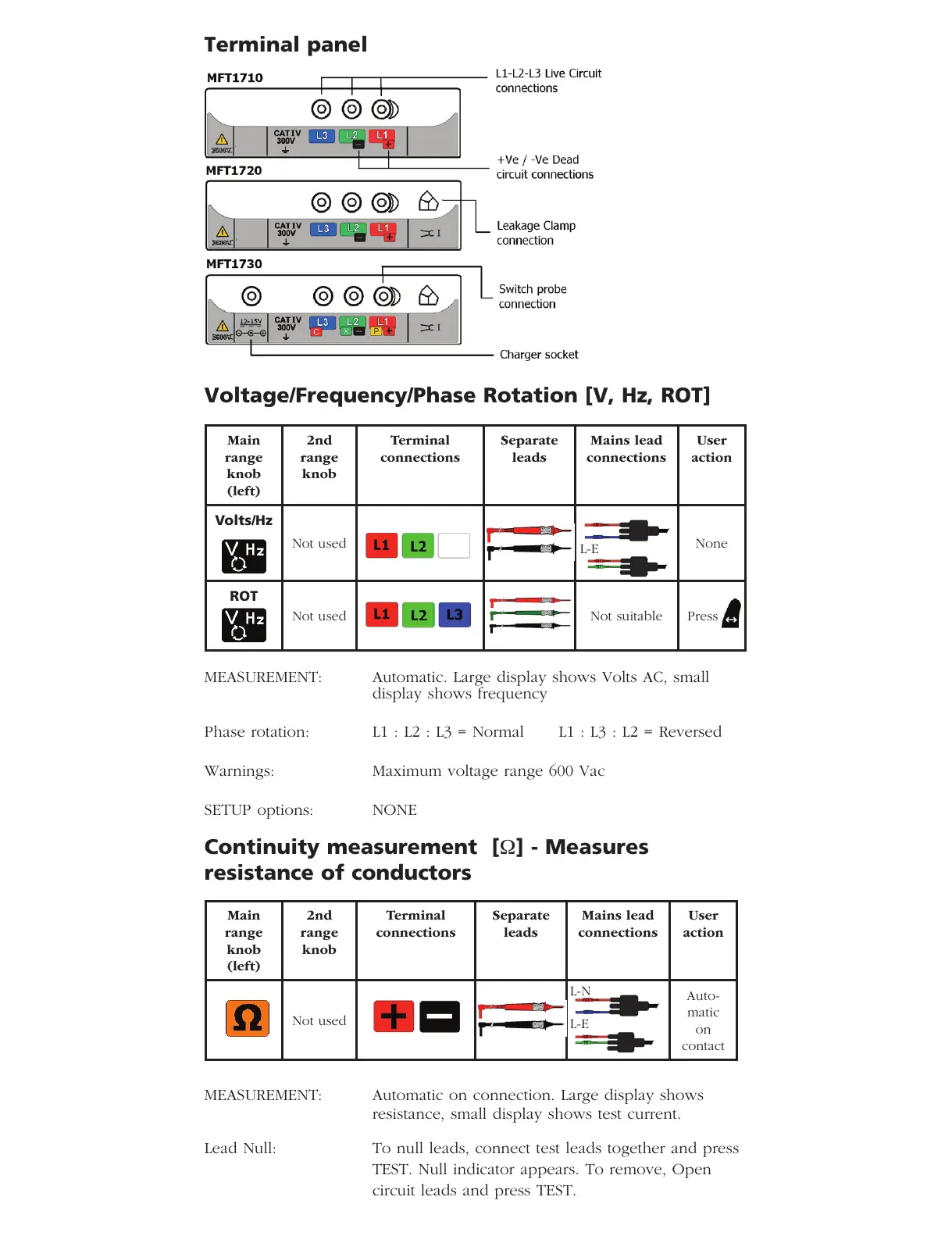

Megger MFT1700 series Quick Start Guide

Terminal panel
Voltage/Frequency/Phase Rotation [V, Hz, ROT]
MEASUREMENT: Automatic. Large display shows Volts AC, small
display shows frequency
Phase rotation: L1 : L2 : L3 = Normal L1 : L3 : L2 = Reversed
Warnings: Maximum voltage range 600 Vac
SETUP options: NONE
Continuity measurement [Ω] - Measures
resistance of conductors
MEASUREMENT: Automatic on connection. Large display shows
resistance, small display shows test current.
Lead Null: To null leads, connect test leads together and press
TEST. Null indicator appears. To remove, Open
circuit leads and press TEST.



Main
range
knob
(left)
2nd
range
knob
Terminal
connections
Separate
leads
Mains lead
connections
User
action
Volts/Hz
Not used None
ROT
Not used Not suitable Press







L-E
Main
range
knob
(left)
2nd
range
knob
Terminal
connections
Separate
leads
Mains lead
connections
User
action
Not used
Auto-
matic
on
contact



L-N
L-E


