During a test the analogue arc will reduce as the degree of
con󰘰dence in the measurement increases. As the in󰘱uence of
electrical noise on the measurement is removed the analogue
arc reduces down to one element. At this point the test stops and
a 󰘰nal result is shown.
The arc may 󰘱uctuate during a test and the shown digital value
will change as the Con󰘰dence Meter analyses the electrical noise
and corrects the value.
3Lo Loop Impedance Measurement
Note: Test leads should not be disconnected during a test, as the
sudden interruption of the test current could be detected by an
RCD as a leakage fault and cause a trip. If this is considered to
be potentially inconvenient or hazardous, change 3Lo from AC/A
to B mode. This will reduce the risk of the RCD tripping.
Important: It is impossible to guarantee that an RCD will not
trip as the RCD may be out of speci󰘰cation, subject to additional
external in󰘱uences, incorrectly connected or faulty. In this
instance alternative methods to test the circuit characteristics are
recommended, for example, the R2 method.
1. Select L-PE.
2. Connect the Live, Neural and Earth test leads of the
MFT to a live circuit. The display will show the standard
warning screen.

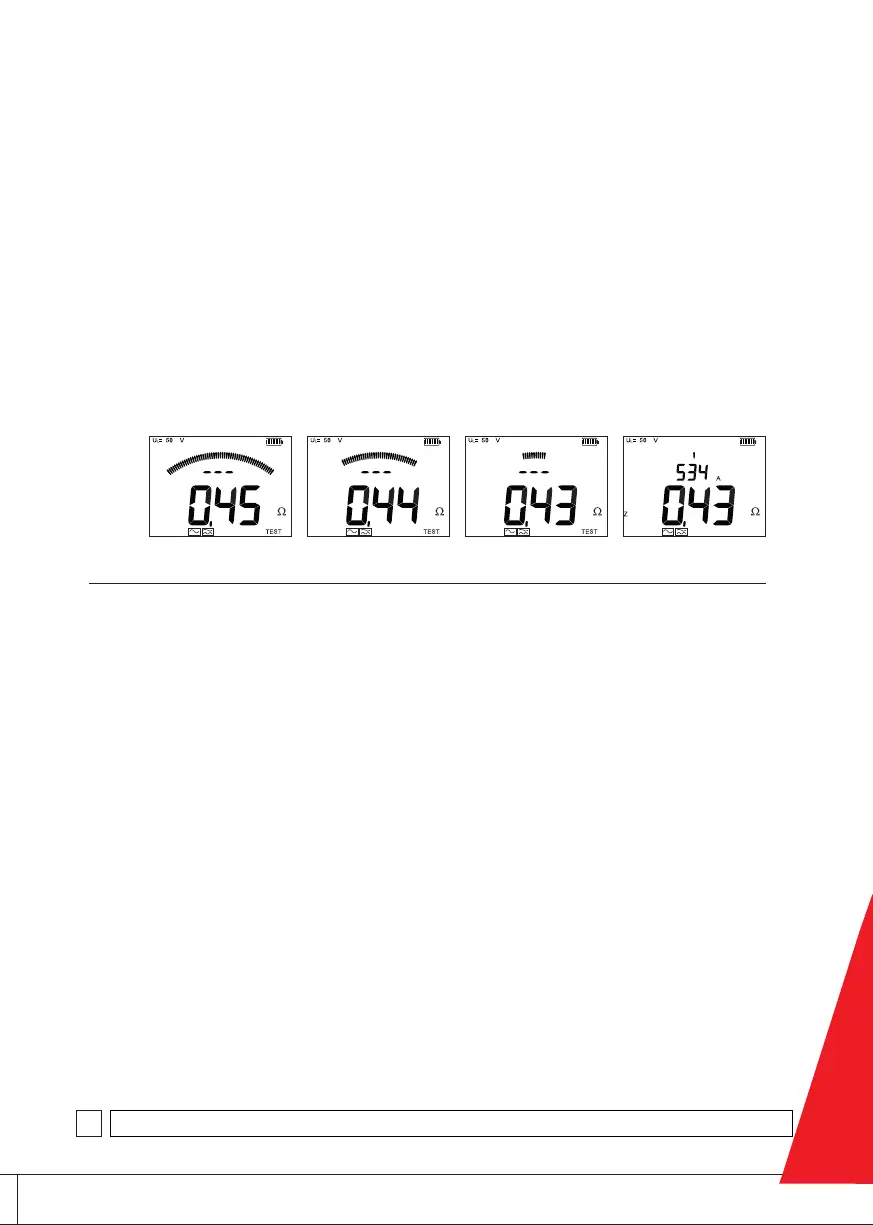

Figure 2. Analogue Arc
Initial valueStart Analysing noise Finished
