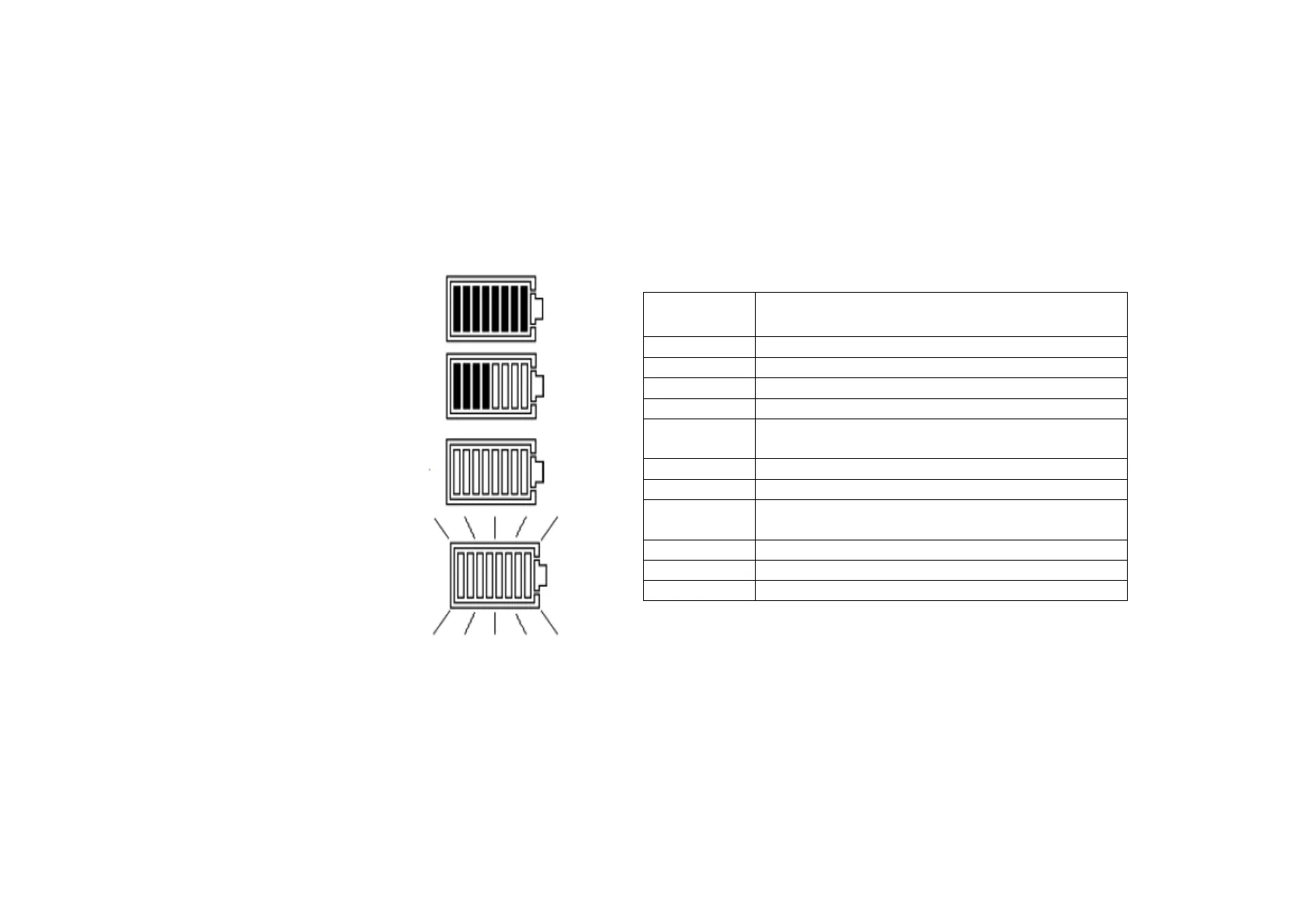

Battery indicator
The battery symbol on the LCD display contains four pairs of
segments. The battery is monitored continuously when the
instrument is turned on. The charge remaining in the battery is
indicated by segment pairs as follows:
Fully charged battery
50% charged battery
Tests cannot be started, insufficient charge
Symbol flashes when there is not enough
charge for a test and the instrument will
turn itself off.
When mains power is present the indicator
shows the battery is being charged by
animating the segments of the bar graph.
A blinking full battery icon indicates that the battery is prevented
from charging due to the temperature being out of the allowable
charge temperature range, 0 ºC to 40 ºC, or that the battery has
failed.
On screen error reporting
Should an error be detected during the operation of the S1
instrument, an error code is reported preceded by ‘Err’ with the ‘read
handbook warning’.
Error codes are given in the following table.
‘Err’ code
Fault
2
Output voltage over limit
3
FIFO (memory) overflow
4
HV board mismatch with control board setup
5
Battery low error
6
Control board detected inter-board
communication failure
7
Test button stuck
8
Measurement board i2c failed
9
Measurement board detected inter-board
communication failure
10
Isolation supply feedback fault
11
Instrument attempted auto power off but failed
12
HV circuit control fault
If an error occurs do not attempt to repair the instrument. Obtain a
repair number from Megger Instruments Limited, carefully pack in a
suitable box and send the faulty instrument to the nearest Megger
Approved Service Centre, if possible noting the error that was
reported.
