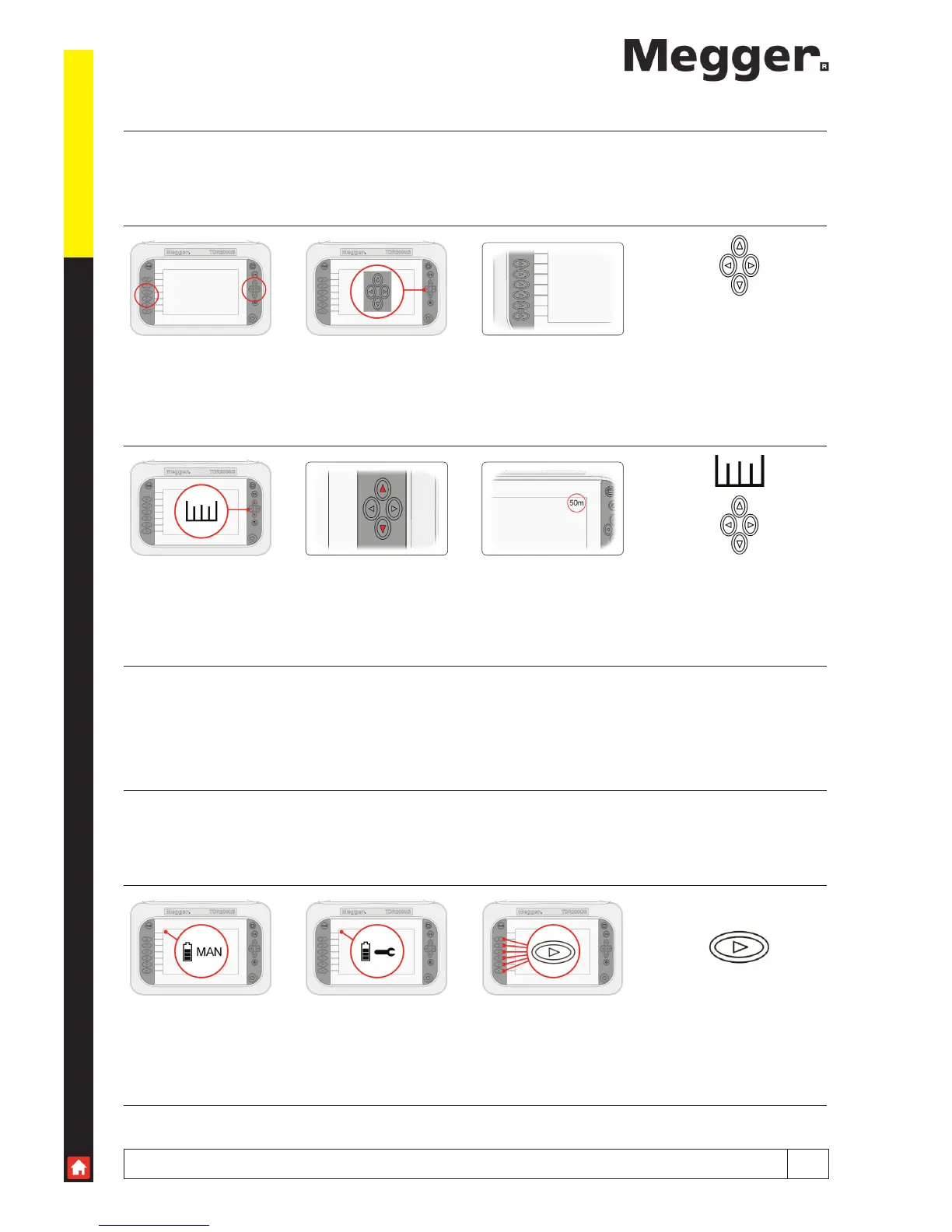

General functions are available from the main screen and be accessed using the left and right navigation keys and
appropriate selection buttons.
The instrument is also able to save and preview traces, enabling the user to maintain a database of information for
downloading to a PC to create reports or to use in other custom applications.
Navigation Use cursor keys Use soft keys to select
Range 10 m min to 20 km max in 11 steps
(30 - 60,000 ft)
The currently selected range is shown at top right of the screen
Operational state
The current operational state is shown at the top left of the screen and identifies the current operational setting for the
chosen screen. Icons displayed are specific to the function.
Current operational state.
Currently in Manual
operation
Current operational state.
Currently in Setup operation
Change current state using
the appropriate button
To Next Page
