Megger TDR2010 - Common Fault Traces Identification; Open and Shorted Conductor Traces; Splice and Joint Faults; Other Fault Patterns

www.megger.com
27

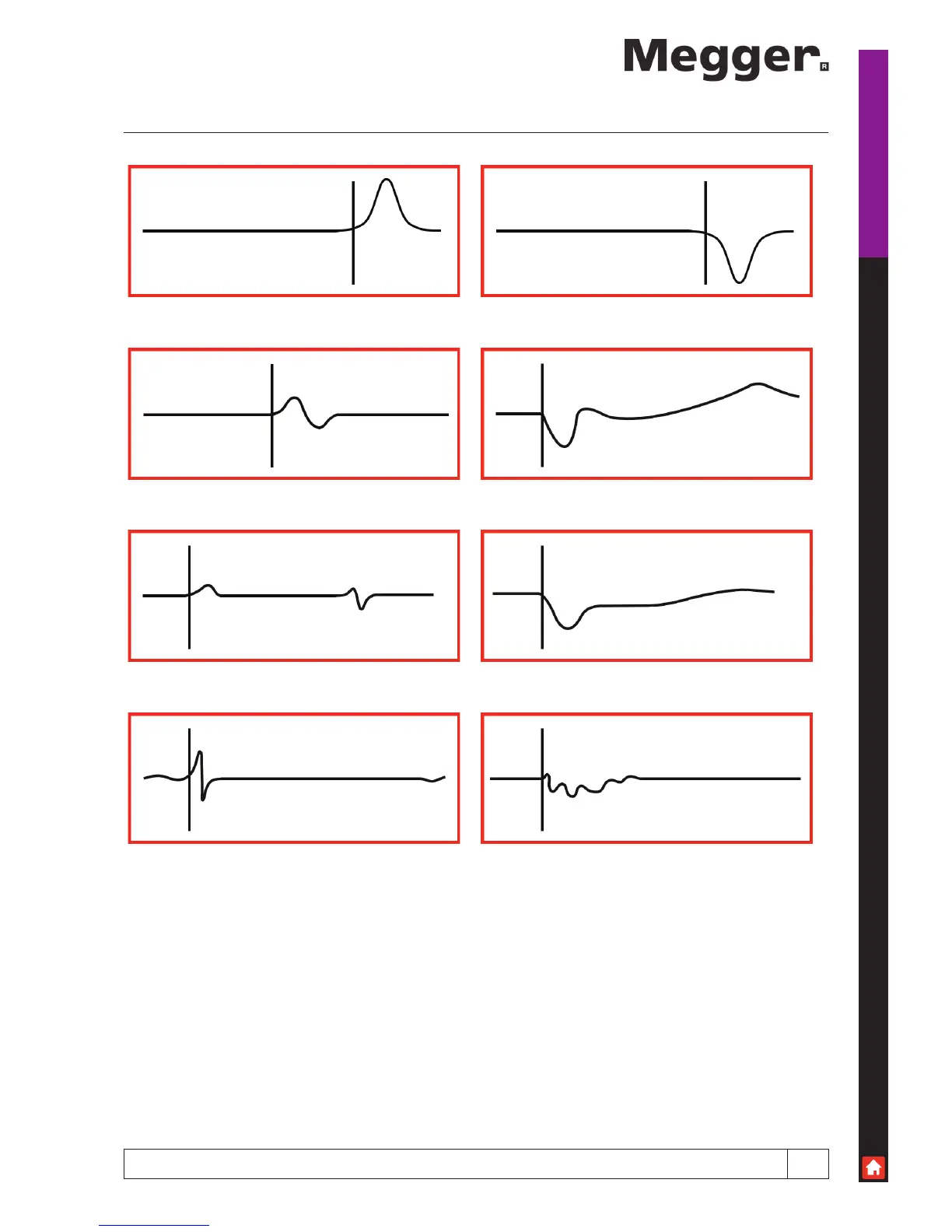

Common fault traces
Open conductor Shorted conductor
Cable splice/joint T-joint
Bridge tap Spilt/resplit
Wet splice Water ingress
Common fault traces
