2.2.2 Machine Lay-out
TIP
Dimension may be various depending on
type of condensation.

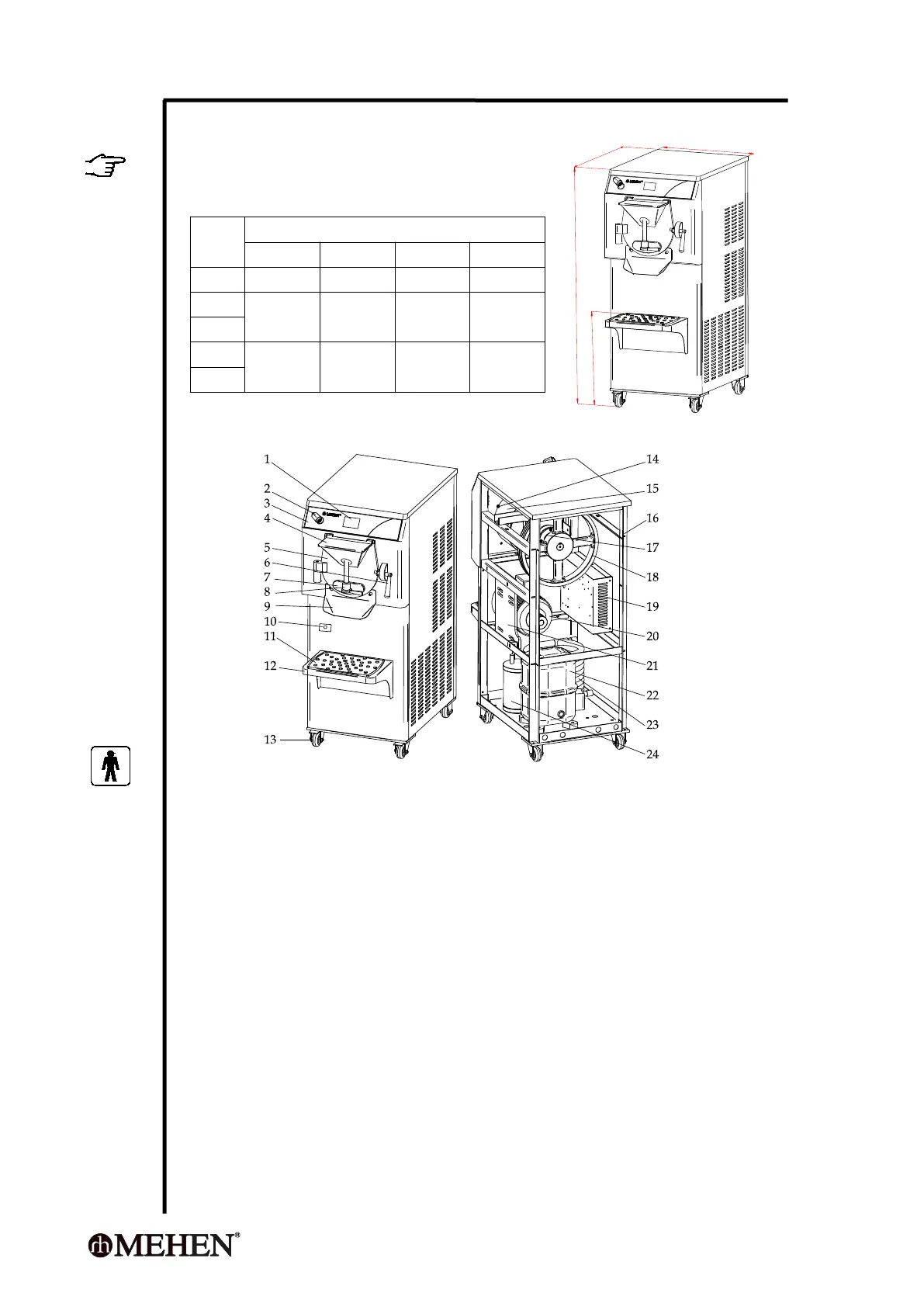

2.2.3 Components Position
1-Touch Screen 2-Rinse spigot 3-Plastic panel 4-Inlet cover 5-Cylinder door
6-Door latch 7-Output door 8-Output wrench 9-Output groove
10-Waste liquid collector 11-Anti slip pad 12-Pan holder 13-Caster
14-Door open detector 15-Cylinder 16-Frame 17-Bearing holder
18-Driving pulley 19-Electrical components box 20-Dasher motor
21-Motor mounting plate 22-Compressor 23-Condenser 24-Reservoir
2.3 Working Conditions
The following conditions are requested to ensure long term and steady operation:
Voltage Fluctuation: <10%
Ambient temperature: 5~35 ºC
Air-cooled temperature: below 25 ºC
Cooling water temperature: below 25 ºC
Cooling water pressure: 1~8 bar
Max relative humidity: 85% ( without moisture condensation)
