SECTION 5 - CLEANING

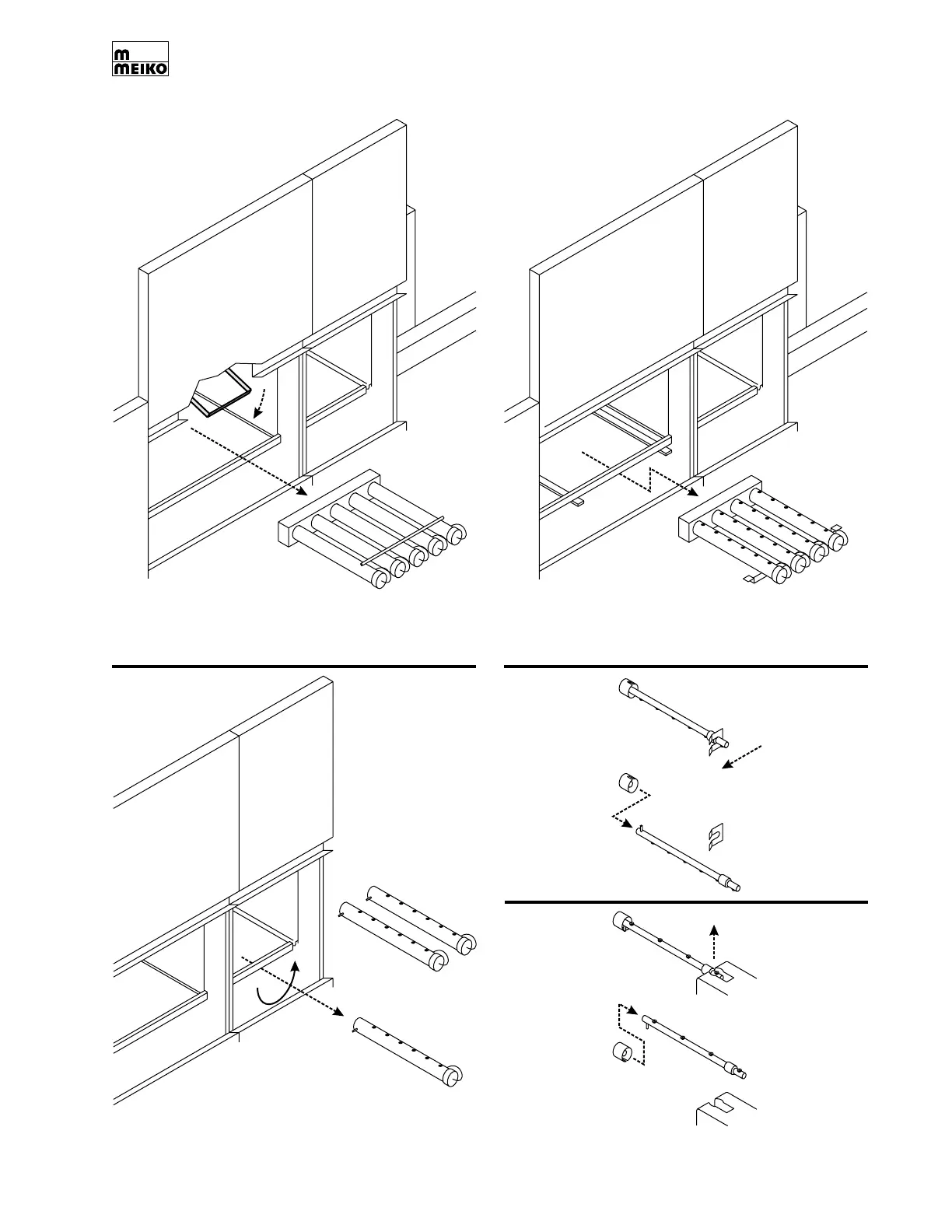

Figure 5-1: Arm removal
Push lever
down to release
manifold
Pull
manifold
out
Upper
manifolds
Pull manifold forward
to release it, then lift
up and out
Lower
manifolds
Single or dual
upper or lower
prewash arms
(K-66, K-76,
and K-86 only)
Rotate arm counter-
clockwise to free
the locking pin,
then pull out
To reinstall, seat the water inlet at the back of the manifold firmly
onto the water supply tube. Then, push the front of the manifold
up until it snaps into place.
To reinstall, slide the manifold into its track, checking that the
front support clips are seated properly on their rails. Then, push
the manifold back until it snaps into place.
To reinstall, seat the back end of the arm in its socket, then rotate
it clockwise to lock it in place.
Upper
rinse
arm
Lower
rinse
arm
Pull front of arm
towards center of
dishwasher, then
pull out
Pull front of arm
up, then pull out
To reinstall, seat
back of arm in
socket then push
front into place.
To reinstall, seat
back of arm in
socket then push
front into place.
