3.4 Tabling Attachment
1. Position the table lip-in at both ends of the
machine, as shown in Figure 3-2. Be sure
to seat the lip-in against the inner plate of
the sidewall of the dishwasher.
CAUTION
If the table lip-in is forced between the
inner and outer plates, it will not seat
properly. Always ensure that the lip-in is
seated correctly as shown in Figure 3-2.

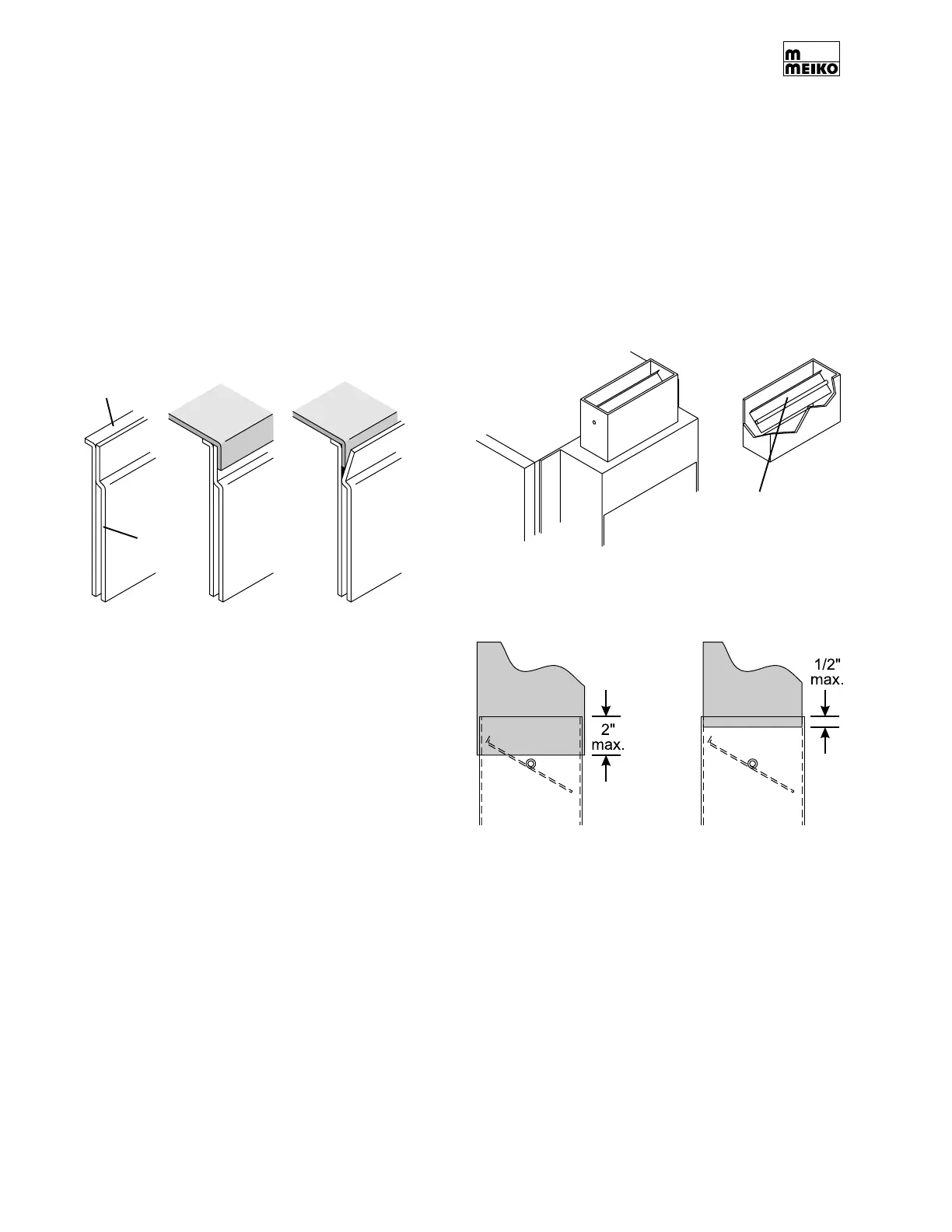

Figure 3-2: Tabling attachment
Outer
plate
Inner
plate
CORRECT INCORRECT
Table lip-in
extends to
inside face of
inner plate.
Table lip-in
should not be
inserted
between inner
and outer plate.
2. Position the dishwasher and tables as
follows:
• Check that the centerline at the open-
ing of each table is aligned with the
centerline of the rack track of the dish-
washer.
• Check that the surface height of each
table matches the height of the rack
track of the dishwasher, to ensure a
smooth transition. The standard table
surface height is 34” (864mm).
• Check that the dishmachine is level.
The height of the dishmachine, and of
most tables, can be adjusted by rotating
the feet at the end of the legs.
CAUTION
After adjusting the height of the
dishmachine, always check that it is level
to ensure proper operation.
3. After the tables have been positioned
correctly, secure them to the dishwasher
using silicone sealant.
3.5 Vent Cowl Collars (if so equipped)
For units that are not equipped with optional
vent cowl collars, skip ahead to Section 3.6,
“Booster Heater Placement.”
1. Check that the ventilation ducts (or “pant
legs” are correctly positioned above the
vent cowl collars on the machine.
2. Determine how the ducts will be attached.
See Figure 3-3.
• In most instances, the ducts can be
sleeved over the outside of the vent cowl
collars. This is the easiest installation and
is recommended.
For this installation, the INSIDE
DIMENSIONS of the ducting, when
viewed from the front of the machine,
should be 4” W x 16” D. The duct can
overlap the outside of the vent cowl collar
by up to 2” without interfering with the
operation of the baffle.
Figure 3-3: Vent cowl collar ducting
Baffle
DUCT SLEEVED
OUTSIDE COLLAR
(RECOMMENDED)
DUCT SLEEVED
INSIDE COLLAR
SECTION 3 - INSTALLATION
