1. Before inserting the card in a system, make sure that the system is off and the power cord is not connected to the
server. Please follow proper electrical grounding procedures.
2. Locate an available PCI Express slot for the adapter card. Make sure the adapter clips or screws are open.
3. Place the adapter card on the clips without applying any pressure.

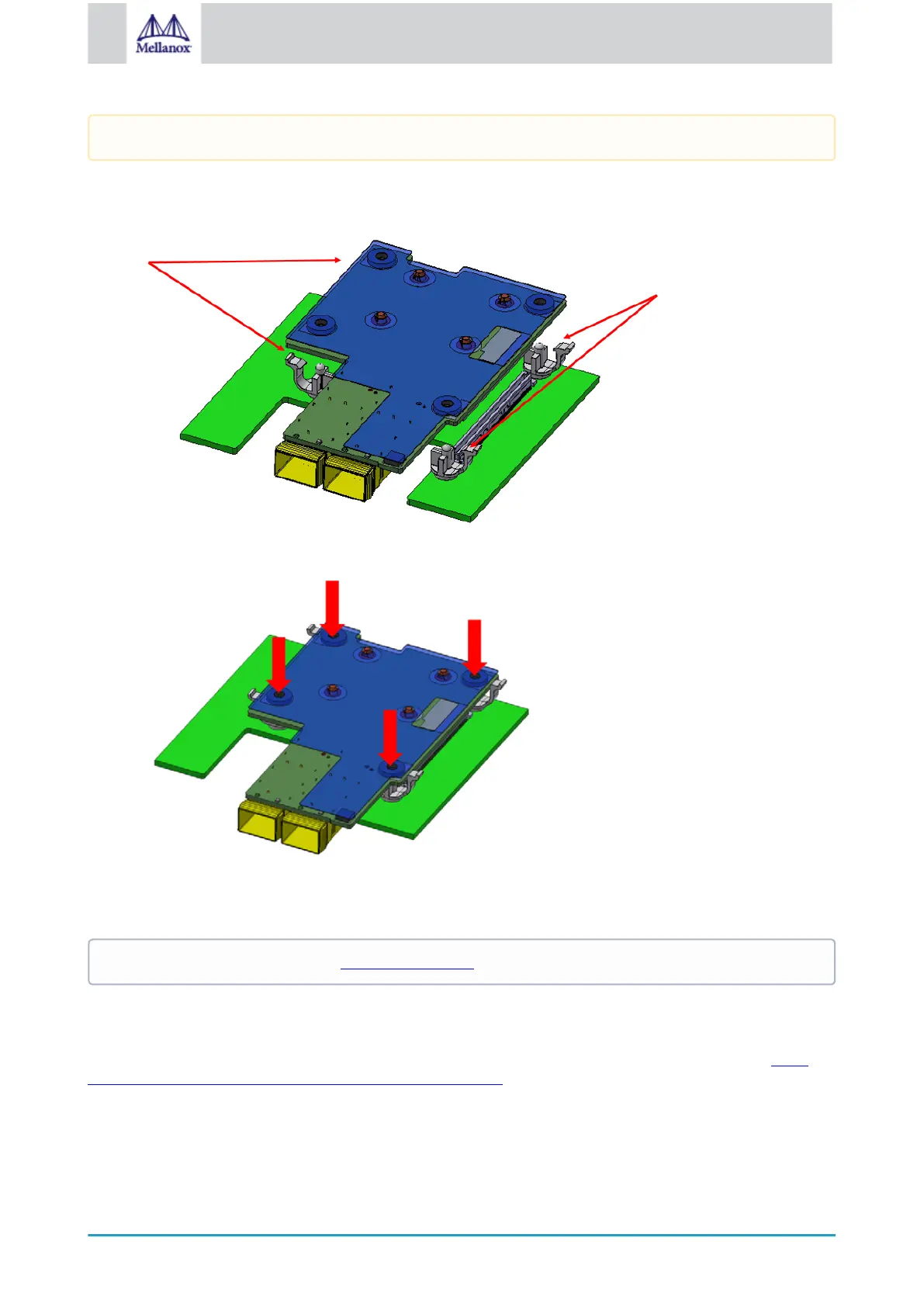

4. Applying even pressure on four corners of the card (as shown in the below picture), insert the adapter card into
the PCI Express slot until firmly seated.
5. Secure the adapter with the adapter clips or screws.
6. Close the system case.
3.6 Cables and Modules
To obtain the list of supported Mellanox cables for your adapter, please refer to the Cables Reference Table at http://
www.mellanox.com/products/interconnect/cables-configurator.php.
Cable Installation
1. All cables can be inserted or removed with the unit powered on.
2. To insert a cable, press the connector into the port receptacle until the connector is firmly seated.
Please note that the following figures are for illustration purposes only.
To uninstall the adapter card, see Uninstalling the Card.
