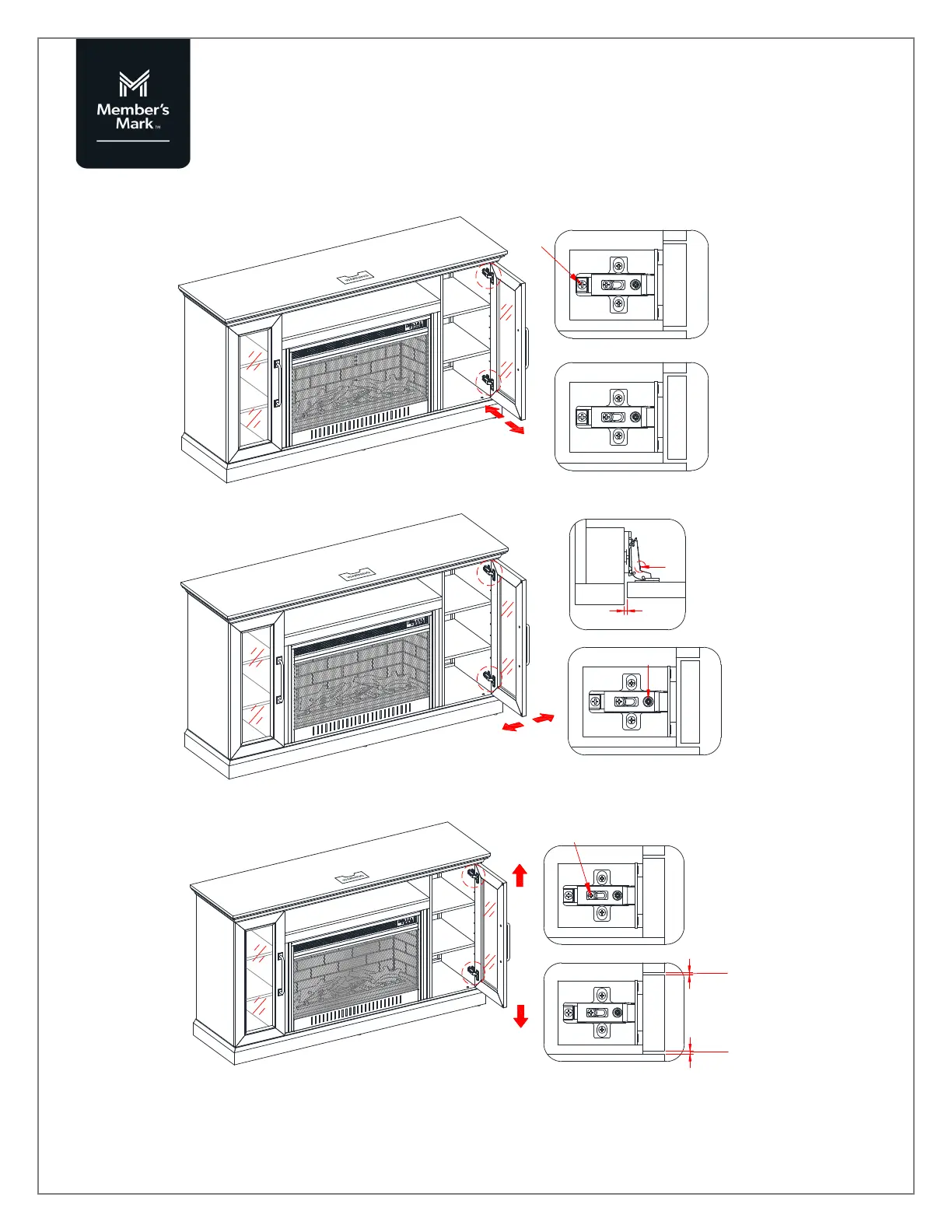

Step 4 - Hinge adjustment
a) Loosen or tighten the indicated screw to adjust the gaps forward and backward between doors and console.
b) Rotate the screw clockwise or counterclockwise to adjust the door horizontally as shown.
c) Loosen or tighten the indicated screw to adjust the door vertically to the desired position.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Lateral
adjustment
Height
adjustment
Depth
adjustment
1
2~3mm
2
2
2mm
3
2mm
