Memorex MLT3252 User Manual

- 14 -
INSTALLATION

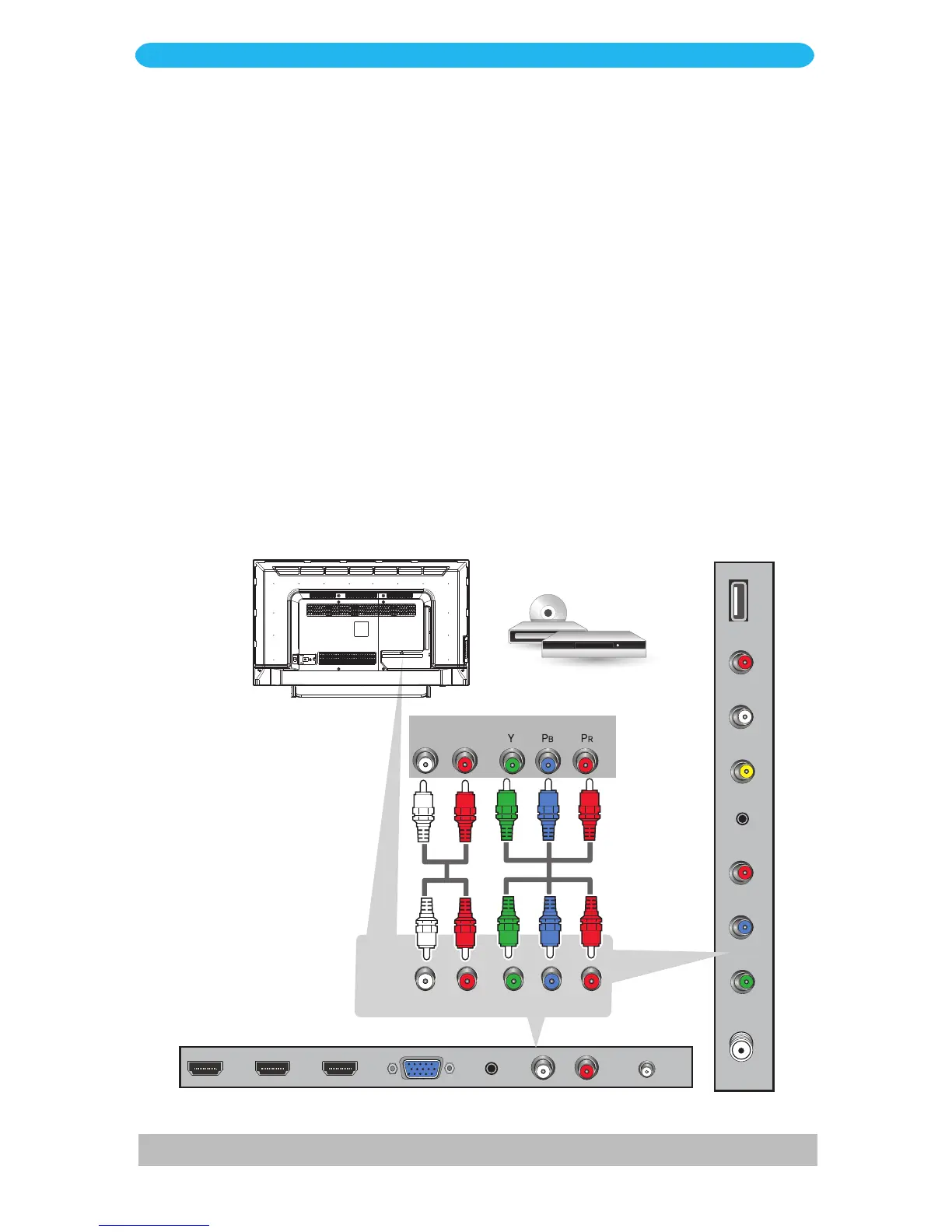

Connect an external device that utilizes Component Y/Pb/Pr jacks as follows:
1
Make sure the power is off on the TV and external unit.
2
Connect a Component cable (not included) from the Y/Pb/Pr Out jacks on the
external unit to the Y/Pb/Pr In jacks on the rear of the TV.
3
Connect the red and white plugs of an audio cable (not included) from the Audio Out
jacks on the external unit to the red and white Component AV1 Audio In jacks on the
rear of the TV.
4
Turn on the TV and external unit.
5
Press the SOURCE button and then select Component using the Navigation q/p
buttons. Conrm by pressing the OK button.
DVD
HD Cable Box
etc.
(Not
Included)
Out Jacks on External Unit
L R
NOTE: It is very important to insert the correct color plug into the same color jack.
Component Cable Connection
