CONNECTION
NOTES:
• If your TV has a Component input, connect the DVD player with the component cable for best results, otherwise use the
S-Video or Video OUT jack on the DVD player.
•
Set the
TV’
s TV/VIDEO button or switch to the VIDEO setting.
• When connecting the DVD, refer to the owner’s manual of the TV, as well as this manual.
• When connecting the DVD to the TV, make sure the power is off and both units are unplugged before making any
connections.
• If your TV only has one audio input, the use of a “Y” connector may be necessary. Visit your local electronics supply store.
• Connect the DVD player to your TV directly. If you connect the DVD player through a VCR, the playback picture will be
distorted because DVD video discs are copy protected.

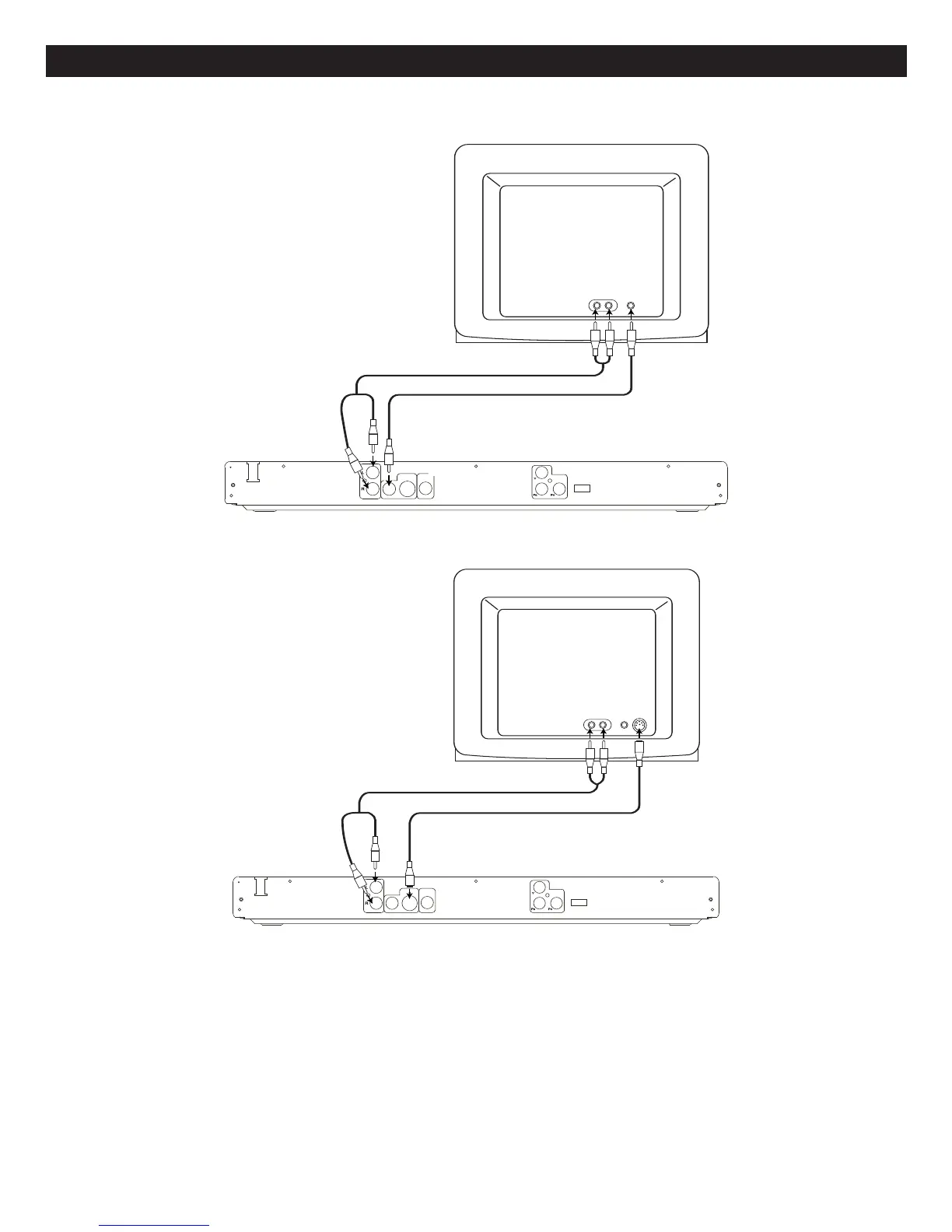

CONNECTING THE DVD TO A TV USING THE AUDIO/VIDEO OUTPUT JACKS
A
udio Cable (Included)
Video Cable (Included)
F
rom
V
ideo Out
F
rom
A
udio
Out
To
Audio In
To
Video In
CONNECTING THE DVD TO A TV USING THE S-VIDEO OUTPUT JACK
Audio Cable (Included)
S-Video Cable (Not Included)
From
S-Video
Out
From
Audio
Out
To
Audio In
To S-Video In
To Next Page
