CONNECTION (CONTINUED)
CONNECTING THE DVD TO A HOME THEATER SYSTEM
1
3
2
9
5
4
6
78
Coaxial Cable (Not Included)
To Digital
A
udio Input
F
rom
D
igital Out
F
rom
V
ideo Out
T
o Video
Input
Video Cable (Included)
NOTES FOR CONNECTING TO A TV:
•
If your
TV has a Component input, connect the DVD player with the component cable for best results, otherwise use the
S-Video or Video OUT jack on the DVD player.
• Set the TV’s TV/VIDEO button or switch to the VIDEO setting.
•
When connecting the DVD, refer to the owner
’
s manuals for the TV and the audio system, as well as this manual.
• When connecting, make sure the power is off and all units are unplugged before making any connections.
• Connect the DVD player to your TV directly. If you connect the DVD player through a VCR, the playback picture will be
distorted because DVD video discs are copy protected.
• If using a TV with a blue screen option, turn the option off, on the TV for best results.
• If you place the DVD player near a tuner, the radio broadcast sound might be distorted. In this case, move the DVD
player away from the tuner
.

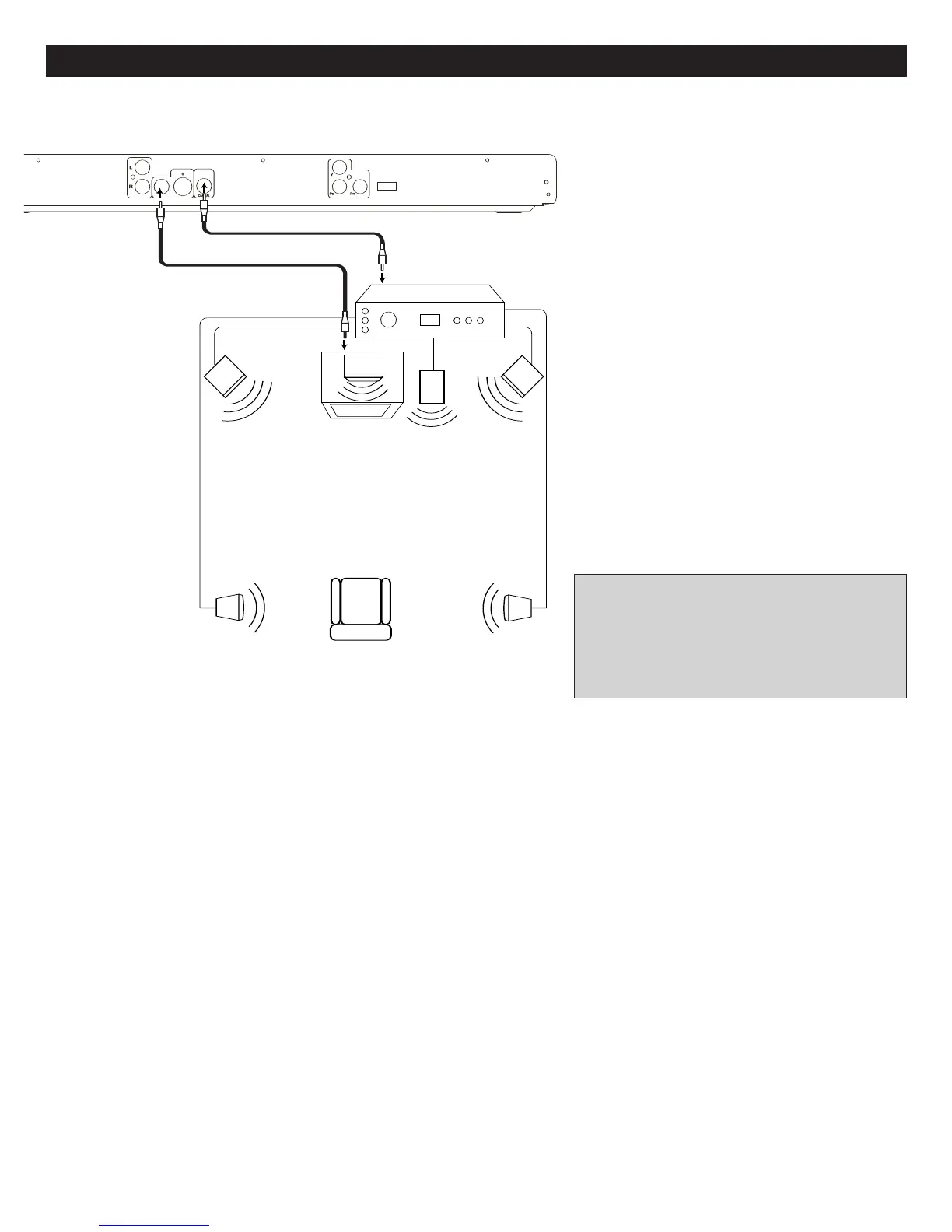

Place the subwoofer, front, rear and center
speakers in locations as shown/described
here. After correctly positioning the speakers,
perform the Tone Test on the AV Amplifier and
adjust the volume controls until the desired
sound is achieved. For best results, sit in the
viewing position and have someone adjust the
volumes for you; this will enable you to set the
optimal levels.
1. Front Left Speaker
2. Television
3. Center Speaker–can be located on top or below the
television.
4.
Sub-woofer–
can be located anywhere in the room.
5. Front Right Speaker
6. Viewing/Listening Position–
The best listening position
is obtained by positioning the chair, sofa, etc. in the
middle of all the speakers.
7. Rear Left Speaker
8.
Rear Right Speaker
9. AV Amplifier with Dolby Digital Decoder
NOTE:
• The rear speakers can also be located on
the side wall facing the viewing position and
each other. Make sure the viewing position
is located between the 2 speakers in this
case. Experiment to find optimal position.
