5 - PREPARATION AND USE

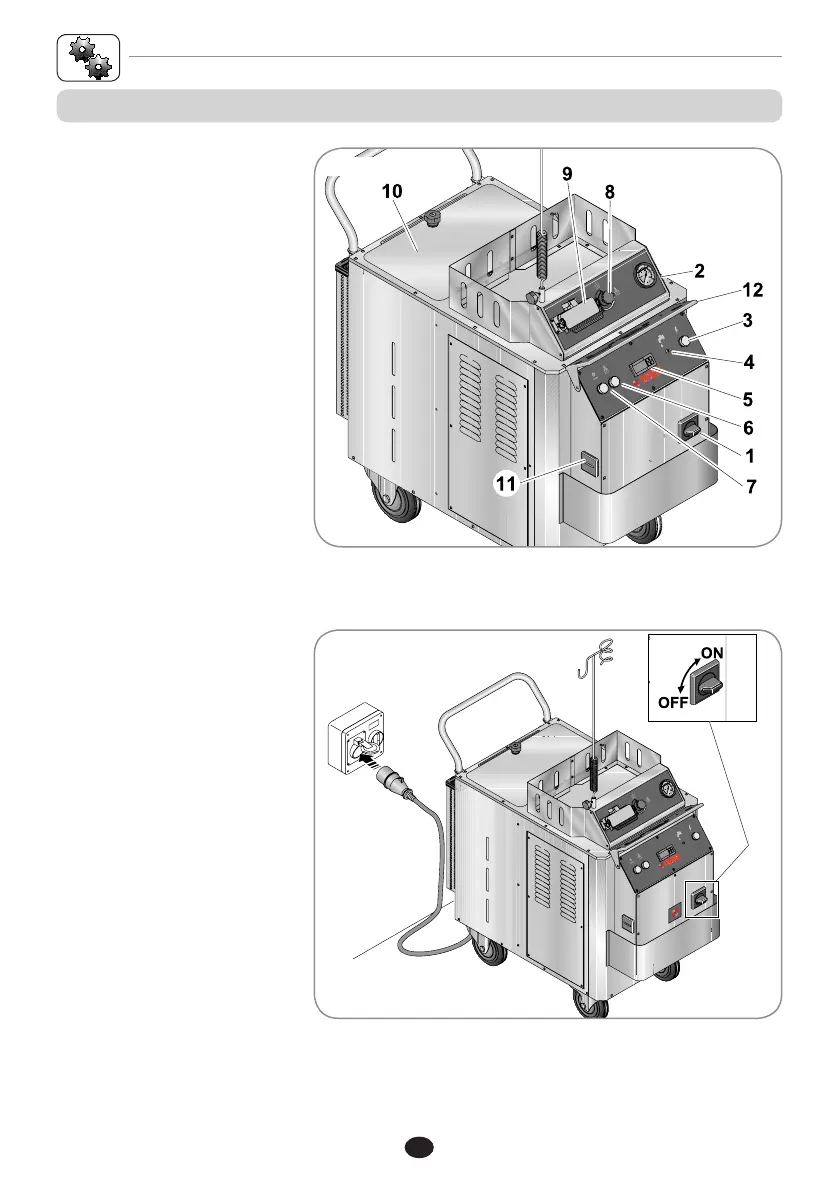

CONTROLS AND MAIN PARTS
1 - General switch
2 - Pressure gauge
3 - General switch signal lamp
4 - No-water signal lamp and
water-f lling signal lamp
5 - Temperature indicator /
thermoregulator
6 - Vapor delivery control
switch
7 - General switch for pump-
heater feeding.
8 - Vapor Delivery Regulator
9 - Flexible hose socket
10- Water and water/detergent
tank compartment
11- Hour counter
12- Protection
PREPARATION
Insert the plug into an appro-
priate electrical system’s soc-
ket. Unless otherwise indicated,
the machine is requires a THREE-
PHASE 400V- 50Hz connection
(Fig. 3).
It is recommended that the
electric supply to this appliance
should include either a residual
current device that will interrupt
the supply if the leakage current
to earth exceeds 30 mA for 30
ms or a device that will prove
the earth circuit.
Note: We decline any responsibi-
lity for damage caused by ope-
ration with voltage values not
compliant with those indicated!
Turn on the machine by acting
on the general switch located
below of the control panel
(Fig. 3).
Fig. 2
Fig. 3
